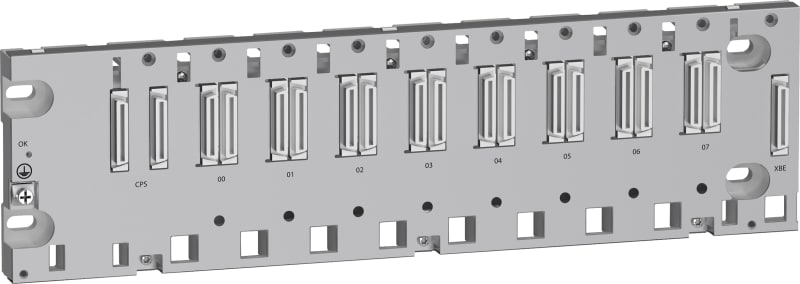

Schneider Electric rack X80 - 8 slots - Ethernet backplane BMEXBP0800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BMEXBP0800 — rack X80 - 8 slots - Ethernet backplane.
Technical Specifications
- Manufacturer part number (MPN)
- BMEXBP0800
- EAN / GTIN
- 3595864174068
- Sales unit
- pcs
- Range of product
- Modicon X80
- Accessory / separate part type
- Rack
- Number of slots
- 8 bus X + Ethernet
- Product compatibility
- I/O module; BMX processor; Specific application module; BMXCPS power supply; BME processor
- Power consumption in W
- 211 mW 3.3 V DC; 3.9 W 24 V DC
- Electrical connection
- 1 connector (XBE) expansion module
- Fixing mode
- By 4 screws - diameter: 4.32…6.35 mm, mounting on panel; By 4 M6 screws, mounting on plate; By clips, mounting on 35 mm symmetrical DIN rail
- Current consumption
- 64 mA at 3.3 V DC; 164 mA at 24 V DC
- MTBF reliability
- 1297516 H
- Product weight
- 1.06 kg
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 5…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.800 cm
- Package 1 Width
- 15.500 cm
- Package 1 Length
- 46.000 cm
- Package 1 Weight
- 1.078 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.544 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 36
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 53.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 374 mm
- Height
- 105.11 mm
- Depth
- 19 mm
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- Yes
- Input voltage DC
- 3.3–24 V
- Max. output current DC
- 164 A
- Max. input current DC
- 164 A
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595864174068
- SAP 1000590694
- Code 8702141
Product Documentation
More from Schneider Electric
Schneider Electric

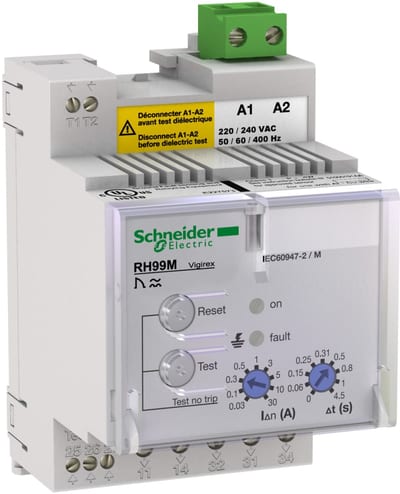

Jf.relay RH99M 110/130VAC just.
56172
Schneider Electric

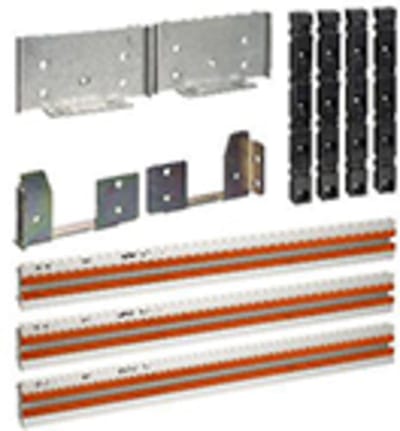

Schneider Electric Connection Horiz. LGYE MTZ2/NW 1600A 3P Prisma P LVS04493
Schneider Electric

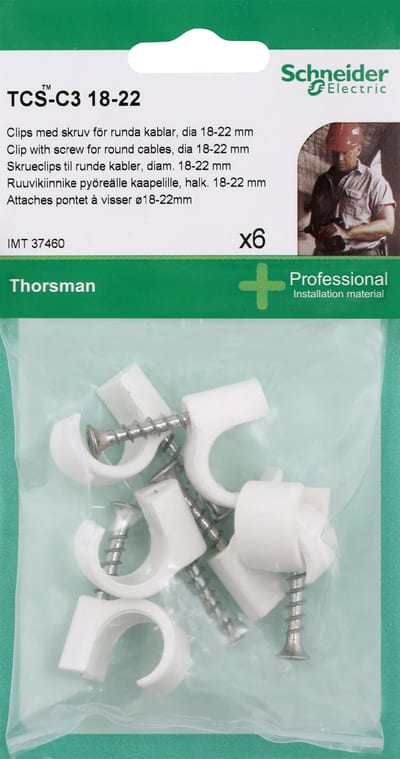

TCS-C3 screw clip 18-22 6 pcs
IMT37460
Schneider Electric

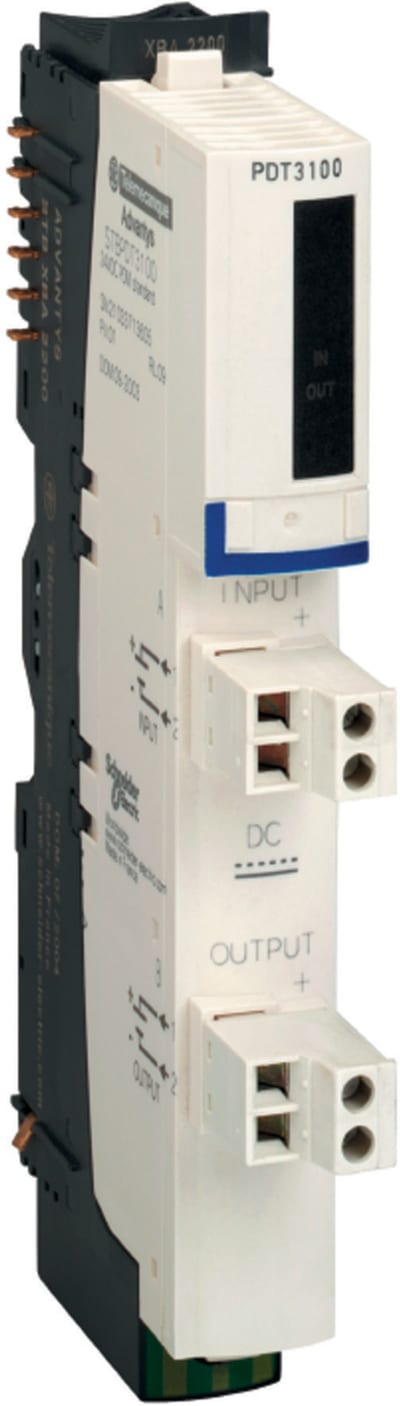

Schneider Electric standard power distribution kit STB - 24 V DC STBPDT3100K
Schneider Electric

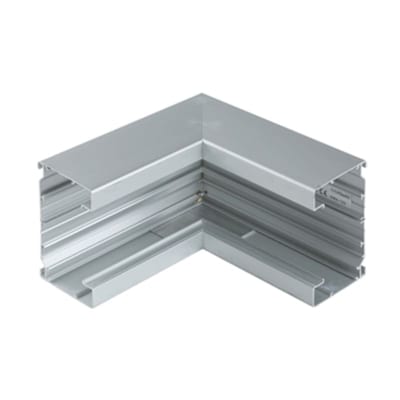

Internal corner ALUMIN.IH 123AN
5507100
Schneider Electric

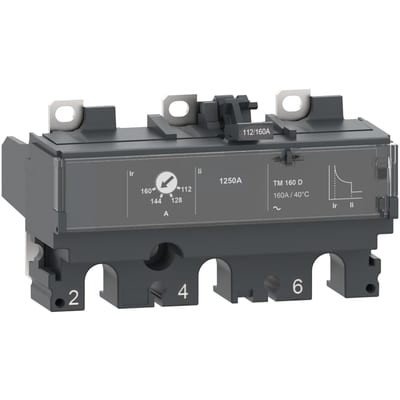

Schneider Electric Trip unit TM80D, ComPacT NSX100/160/250, 3 poles, thermal magnetic protections, 80A rating C103TM080
Schneider Electric

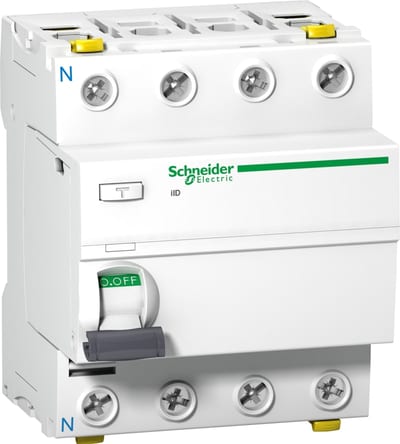

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 25A, A-SI type, 30MA, double terminal A9Z31425
Schneider Electric

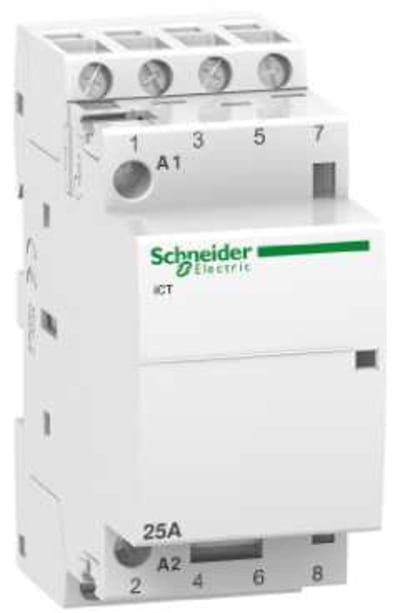

Schneider Electric iCT 25A 4NO 24V 50Hz contactor A9C20134
