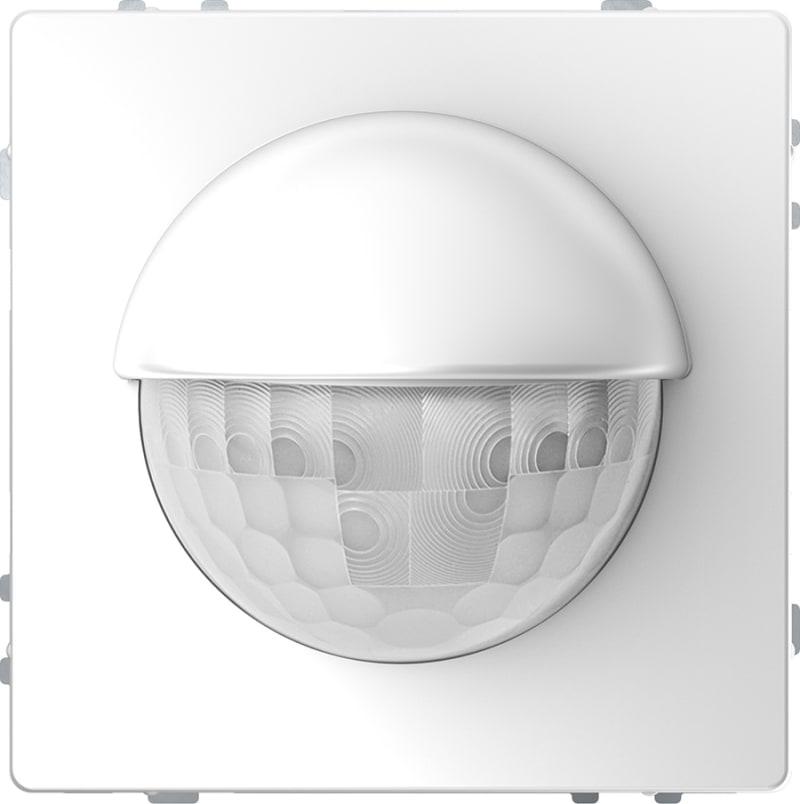

Schneider Electric KNX ARGUS Presence Detector 180 deg 2.20 m Flush Lotus White MTN6302-6035

Schneider Electric MTN6302-6035 is a KNX ARGUS flush-mount presence detector from the SpaceLogic KNX range, covering a 180 degrees horizontal field at 2.20 m mounting height. It provides five channels, adjustable light sensitivity and creep-zone protection, drawing 10 mA from the KNX bus. The lotus-white polycarbonate housing suits System Design frames for D-Life installations and reaches 8 m laterally and 12 m frontally with a 16 m floor diameter.

Manufacturer part number (MPN)

MTN6302-6035

EAN / GTIN

3606480919527

Sales unit

pcs

Package quantity

30 pcs

Range

SpaceLogic KNX

Product or component type

Presence detector

Bus type

KNX

Colour tint

Lotus white

Power supply input current

10 mA

Device presentation

Mechanism with fixing frame and cover plate

Number of channels

5

Protection type

Creep zone protection

Type of setting

Light sensitivity adjustable

Duty cycle

15300 minutes

Time delay range

0...1 s (switch-on)

Detection face

Lateral: 8 m

Detection angle

180° horizontal

Material

Polycarbonate

Device mounting

Flush

Mounting height

2.2 m

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.700 cm

Package 1 Width

7.800 cm

Package 1 Length

9.400 cm

Package 1 Weight

98.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

30

Package 2 Height

19.800 cm

Package 2 Width

30.600 cm

Package 2 Length

40.500 cm

Package 2 Weight

3.308 kg

Warranty (in months)

18

Other bus systems

None

Model

Presence detector

Mounting method

Flush-mounted

Material quality

Thermoplastic

Surface protection

Untreated

Surface finishing

Glossy

Colour

White

RAL-number (similar)

9016

Optimum mounting height

2.2 m

Max. reach sideways

8 m

Max. reach frontally

12 m

Diameter reach on floor

16 m

Min. switch-on time

1 s

Max. duty cycle

15300 min

Min. depth of built-in installation box

40 mm

Country of origin

Germany

HS Code

8536.50

• EAN 3606480919527
• SAP 1200046974
• Code 81873326
