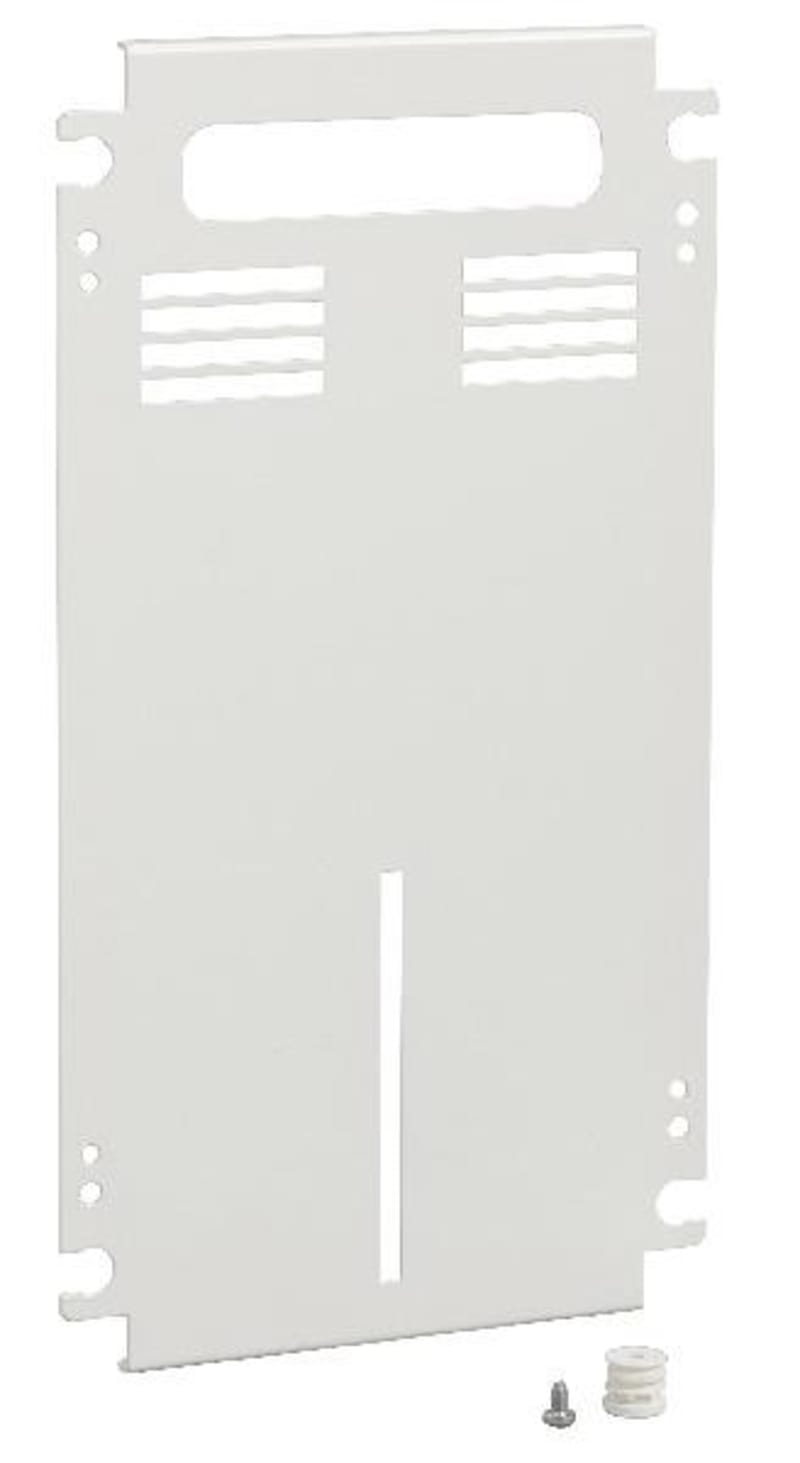

Mounting plate 3-PHASE meter PrismaSeT G B300
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03156 — MOUNTING PLATE FOR 1 3P-METER W300.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03156
- EAN / GTIN
- 3606481871046
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct
- installation description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Installed device
- Power meters: kilowatt-hour meters - vertical installation
- Poles description
- 1 x 4P: kilowatt-hour meters vertical installation
- Number of vertical modules [50 mm]
- 9 module(s): kilowatt-hour meters in 300 mm Widefloor-standing duct; 9 module(s): kilowatt-hour meters in 300 mm Widewall-mounted duct
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt; Galvanized
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 400 mm
- Product weight
- 1.06 kg
- Functional unit
- 300 mm PrismaSeT G floor-standing duct power meters kilowatt-hour meters vertical 4P 1 9 50 mm; 300 mm PrismaSeT G wall-mounted duct power meters kilowatt-hour meters vertical 4P 1 9 50 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.0 cm
- Package 1 Width
- 22.0 cm
- Package 1 Length
- 42.2 cm
- Package 1 Weight
- 1.081 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 40.0 cm
- Package 2 Length
- 60.0 cm
- Package 2 Weight
- 18.044 kg
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481871046
- SAP 1200546884
- Code 82880309
Product Documentation
