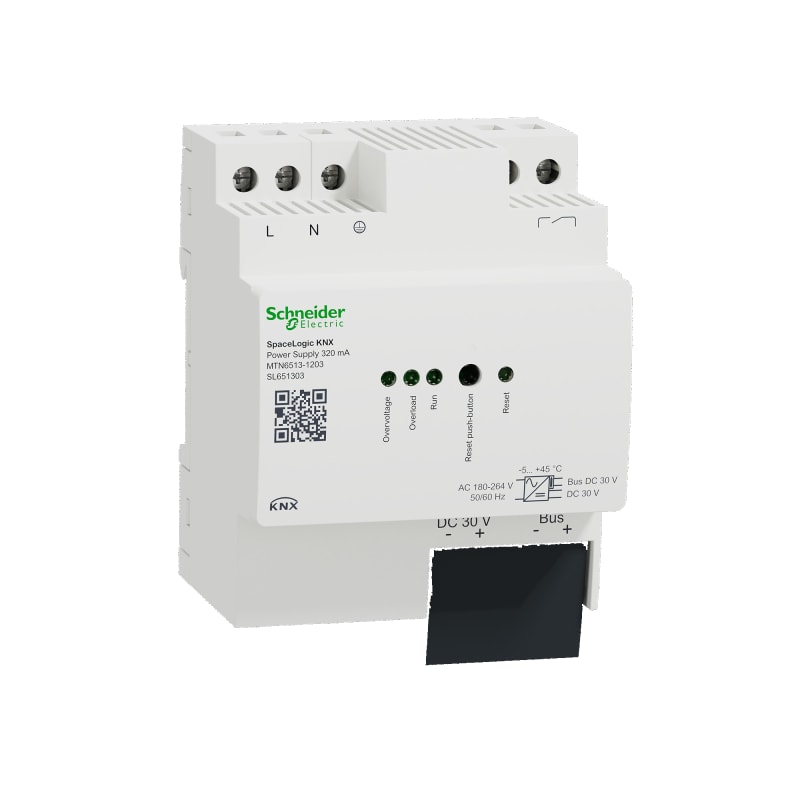

Schneider Electric Power supply, SpaceLogic KNX, 320 mA, white MTN6513-1203
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6513-1203 — Power supply, SpaceLogic KNX, 320 mA, white.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6513-1203
- EAN / GTIN
- 3606481902832
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Power supply
- Bus type
- KNX
- Provided equipment
- Line choke
- Topology
- TP256
- Colour tint
- White
- Number of bus terminals module
- 256
- Rated voltage
- 220…240 V AC 50...60 Hz
- Power consumption in W
- 1.8 W
- Maximum short-circuit current
- 1 A
- Maximum output current
- 320 mA
- Output voltage
- 30 V DC
- Power supply type
- SELV
- Local signalling
- LED
- Connections - terminals
- 0.5...4 mm² screw terminal for solid cable; 0.5...4 mm² screw terminal for stranded cable; 0.5...2.5 mm² screw terminal for stranded with sleeve cable
- Mounting support
- DIN rail
- total number of 18 mm modules
- 4
- Height
- 90 mm
- Width
- 72 mm
- Depth
- 65 mm
- Operating altitude
- 2000 m
- Relative humidity
- 93 % non-condensing
- Ambient air temperature for operation
- -5…45 °C
- Ambient air temperature for storage
- -25…70 °C
- Directives
- 89/336/EEC - electromagnetic compatibility
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.000 cm
- Package 1 Width
- 12.500 cm
- Package 1 Length
- 15.700 cm
- Package 1 Weight
- 331.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 28
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.315 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 112
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 52.556 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Power consumption
- 1.8 W
- Number of integrated choke coils
- 1
- Number of lines to feed
- 1
- Max. output current
- 320 mA
- Secondary voltage
- 30 V
- Width in number of modular spacings
- 4
- Other bus systems
- None
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481902832
- SAP 1200481066
- Code 82562756
Product Documentation
More from Schneider Electric
Schneider Electric
VIGI IC60 4P 25A 30MA A
A9W21425
Schneider Electric
Mounting Screw TST 4,2X25
3780220
Schneider Electric
Schneider Electric XALG03 Empty Control Station, 3 Cut-Outs, Black, for Severe Environments
Schneider Electric
Schneider Electric Copper LAN Cable, Actassi, F/FTP, 4P, CAT6A, Euroclass D, 550MHz, LSZH, 500M VDICD64X218
Schneider Electric
Schneider Electric TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 24 V DC coil LP2K0901BD
Schneider Electric
Door for PrismaSeT G CABINET-IP30 21MOD B600
LVS08127
Schneider Electric
CYB-MF1L Wallframe LOW
5971160
Schneider Electric
Schneider Exxact KNX 2-Button Rocker White
WDE002949
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MTN6513-1203?
- MTN6513-1203 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is MTN6513-1203.
- What is the HS code for MTN6513-1203?
- The customs tariff (HS) code for MTN6513-1203 is 8504.40.
- Who manufactures MTN6513-1203?
- MTN6513-1203 is a Schneider Electric product in the Switchgear & Protection range.
- Is a datasheet available for MTN6513-1203?
- Yes — the MTN6513-1203 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MTN6513-1203?
- The minimum order quantity is 1.
- Is MTN6513-1203 available?
- Yes — MTN6513-1203 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
