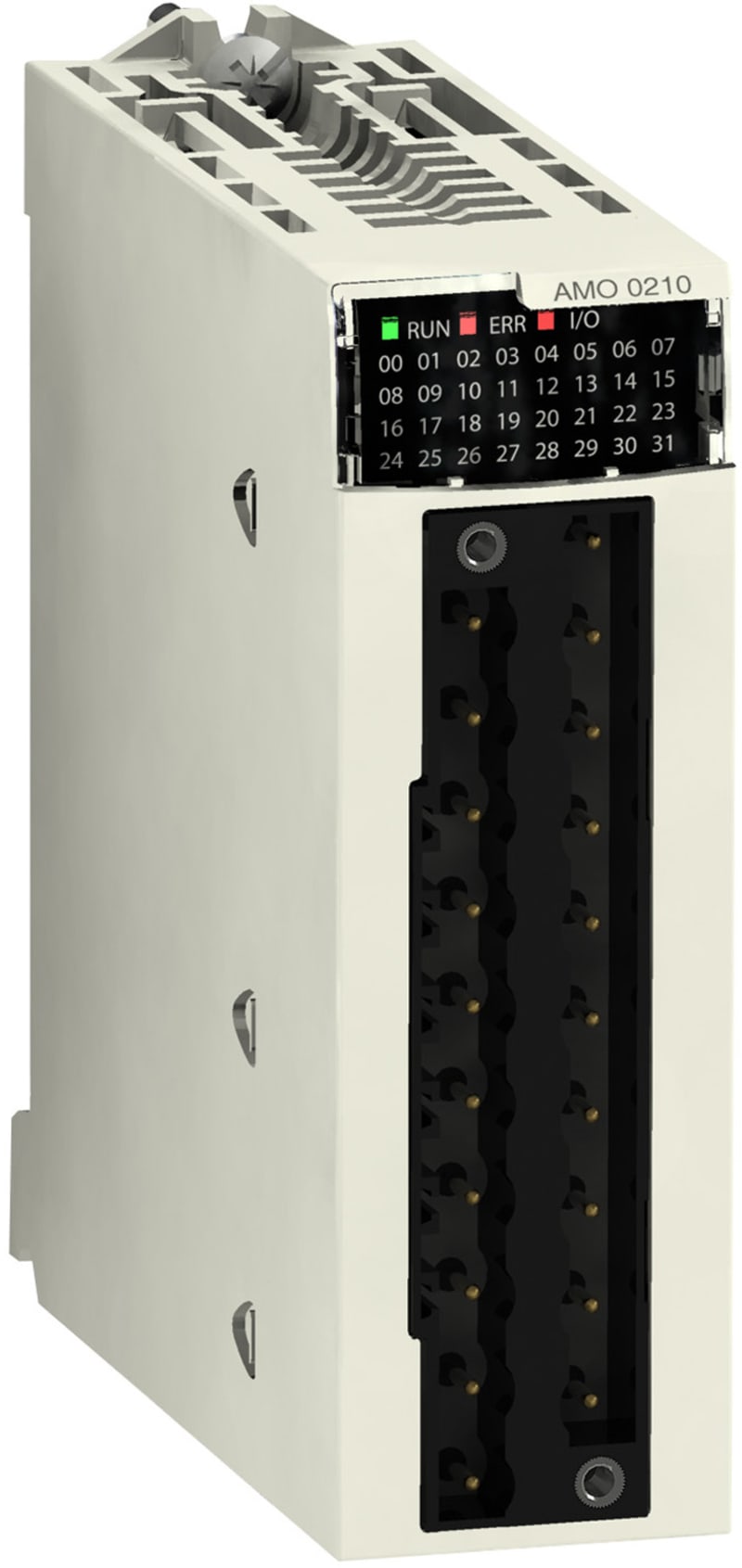

Schneider Electric BMXAMO0210 isolated analogue output module X80 - 2 outputs

Schneider Electric BMXAMO0210 isolated analogue output module X80 - 2 outputs is listed under Control & Automation / PLCs. HS code: 8538.90.

Manufacturer part number (MPN)

BMXAMO0210 EAN / GTIN: 3595863910209 Sales unit: pcs Package quantity: 15 pcs Range of product: Modicon X80 Product or component type: analogue output module Electrical connection: 20 ways 1 connector Isolation between channels: Isolated Measurement error: <= 0.2 % of full scale 0...60 °C; 0.1 % of full scale 25 °C Temperature drift: 30 ppm/°C Recalibration: Factory calibrated minimum crosstalk attenuation: 90 dB Common mode rejection: 100 dB Isolation voltage: 1400 V DC between channels and ground; 1400 V DC between channels and bus; 750 V DC between channels Detection type: Open circuit 0...20 mA; Open circuit 4...20 mA; Short circuit +/- 10 V Load impedance ohmic: = 1000 Ohm +/- 10 V Output level: High level Analogue output number: 2 Analogue output type: Current: 0...20 mA; Current: 4...20 mA; Voltage: +/- 10 V Analogue output resolution: 15 bits + sign Supply: Internal power supply via rack Conversion time: <= 1 ms Maximum conversion value: +/- 11.25 V +/- 10 V; 0...24 mA 0...20 mA; 0...24 mA 4...20 mA Fallback mode: Predefined; Configurable MTBF reliability: 1300000 H Operating altitude: 0...2000 m; 2000...5000 m with derating factor Status LED: 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O Product weight: 0.144 kg Power consumption in W: 2.1 W 24 V DC typical; 2.8 W 24 V DC maximum; 0.35 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum Current consumption: 150 mA at 3.3 V DC; 110 mA at 24 V DC Vibration resistance: 3 gn Shock resistance: 30 gn Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: 0…60 °C Relative humidity: 5…95 % at 55 °C without condensation IP degree of protection: IP20 Directives: 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility Product certifications: CE; RCM; CSA; EAC; Merchant Navy; UL Standards: IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 Protective treatment: Standard version Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.500 cm Package 1 Width: 11.000 cm Package 1 Length: 11.500 cm Package 1 Weight: 173.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 15 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 2.901 kg Country of origin: FR Warranty (in months): 18 Power consumption: 2.8 W Number of analogue outputs: 2 Analogue inputs configurable: No Analogue outputs configurable: Yes Input, current: No Input, voltage: No Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Output, current: Yes Output, voltage: Yes Output signal configurable: Yes Resolution of the analogue outputs: 16 Bit Type of electric connection: Plug-in connection Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): Yes Width: 32 mm Height: 100 mm Depth: 150 mm

HS Code

8538.90

• EAN 3595863910209
• SAP 1000080298
• Code 8571643
