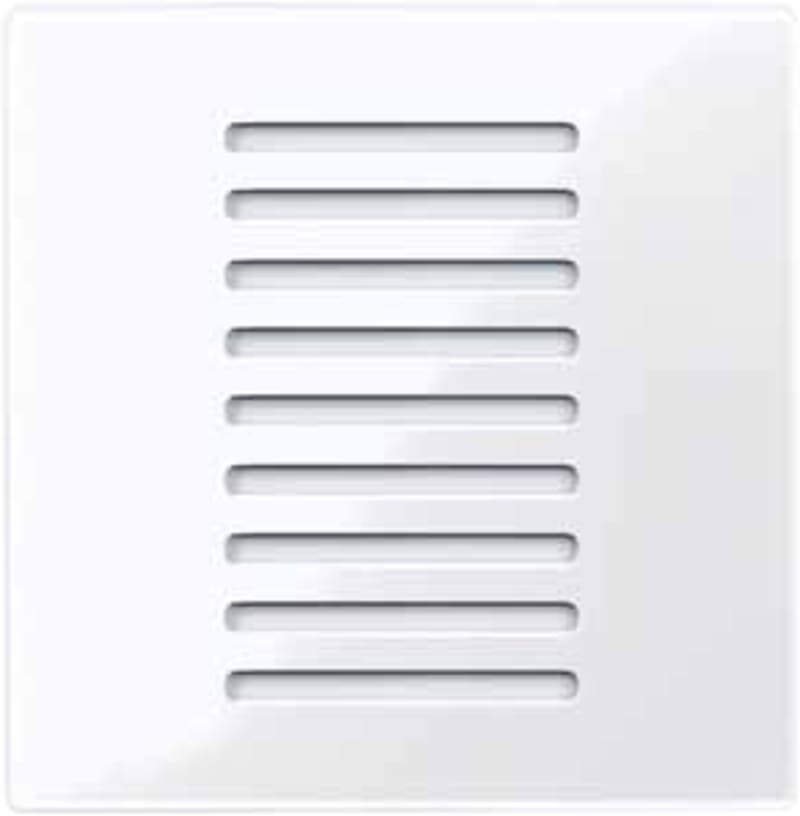

Schneider Electric MTN6221-0325 KNX Room Thermostat Plain, Active White
Pricing
Request a quote
We reply within 24 hours
Product Description
The MTN6221-0325 is a KNX System M room thermostat from Schneider Electric with no push-buttons or display, providing heating and/or cooling control via the KNX bus. Flush-mounted assembly comprising mechanism, fixing frame and glossy Active White (RAL 9016) cover plate with an antibacterial surface treatment. Powered from the bus (7 mA) at IP20.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6221-0325
- EAN / GTIN
- 3606480210549
- Sales unit
- pcs
- Range
- SpaceLogic KNX
- Product name
- KNX
- Product or component type
- Thermostat
- Device presentation
- Mechanism with fixing frame and cover plate
- Device application
- Room
- Colour tint
- Active white (RAL 9016)
- Power supply input current
- 7 mA
- Technology type
- Electronic
- Bus type
- KNX
- Device mounting
- Flush
- Material
- Plastic
- Surface finish
- Glossy
- surface treatment
- Antibacterial
- Main colour tint
- Active white
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.800 cm
- Package 1 Width
- 7.600 cm
- Package 1 Length
- 7.600 cm
- Package 1 Weight
- 72.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 50
- Package 2 Height
- 19.800 cm
- Package 2 Width
- 30.500 cm
- Package 2 Length
- 40.500 cm
- Package 2 Weight
- 4.008 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Colour
- White
- With display
- No
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Other bus systems
- None
- Bus system LON
- No
- With anti-theft/dismantling protection
- No
- Manual set point setting
- No
- Parallel-service possible
- No
- Presence button
- No
- RAL-number (similar)
- 9016
- Degree of protection (IP)
- IP20
- With LED indication
- No
- Transparent
- No
- Surface finishing
- Glossy
- With local operation
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
Standards & Compliance
- HS Code
- 9032.10
Cross References
- EAN 3606480210549
- SAP 1000726432
- Code 8348620
