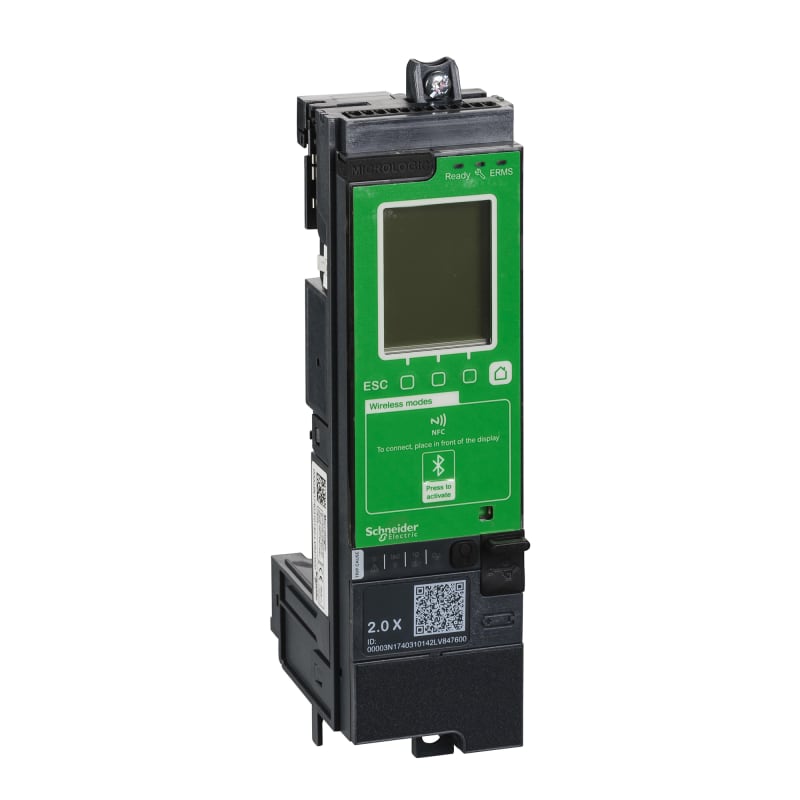

Control UNIT 2.0X - WO AAF FOR D/O MTZ1

Schneider Electric LV847281 Micrologic 2.0X protection for Masterpact circuit breaker MTZ1.

Manufacturer part number (MPN)

LV847281

EAN / GTIN

3606480811234

HS code

8536.90

Sales unit

pcs

Range

MasterPacT

Device short name

MicroLogic 2.0 X

Product or component type

Control unit

Device application

Equipment protection, monitoring and control

Circuit breaker application

Distribution IEC standard

Range compatibility

MasterPact MTZ1 circuit breaker

Poles

3P; 4P

Protected poles description

3P 3d; 4P 3d; 4P 3d + N/2; 4P 4d; 4P 3d + OSN

[Ue] rated operational voltage

690 V AC, +/- 10 %

Network type

AC

Network frequency

50/60 Hz

Trip unit technology

Electronic

Trip unit protection functions

LI

Protection type

Overload protection (long time) conforming to ANSI 49; Instantaneous short-circuit protection conforming to ANSI 50

Trip unit rating

400 A; 630 A; 800 A; 1000 A; 1250 A; 1600 A

mounting mode

Drawout

Neutral protection setting

1 x Ir (4P 4d); 0.5 x Ir (4P 3d + N/2); 1.6 x Ir (4P 3d + OSN); No protection (4P 3d)

[Ir] long time pick-up adjustment range

0.4...1 x In adjustable in step of 1 A

Long time delay adjustment type

Adjustable in step of 0.5 s

[tr] long-time delay adjustment range

12.5…600 s at 1.5 x Ir; 0.5…24 s at 6 x Ir; 0.7…16.6 s at 7.2 x Ir

Thermal memory

Yes

Instantaneous pick-up adjustment type Ii

Adjustable

[Ii] instantaneous pick-up adjustment range

1.5...10 x Ir adjustable in step of 0.5 x Ir with embedded HMI; 1.5...10 x Ir adjustable in step of 0.1 x Ir with Ecoreach software or MasterPact MTZ mobile app

[li mode] instantaneous delay adjustment range

20 ms in standard

Zone selective interlocking ZSI

Without

Network and machine diagnosis type

System (HMI) health state overview: circuit breaker health state; Contacts state: circuit breaker health state; MicroLogic service life: circuit breaker health state; Tripping cause indication: circuit breaker tripping cause; Identification card: diagnostic data; Configured alarms synthesis: diagnostic data; Monitored function: diagnostic data; Operation: diagnostic data; MicroLogic test: test; Protection test: test; Selectivity test: test; Trip context information: crisis management; Operation: advanced diagnostic; Breaker service life: circuit breaker health state

Type of measurement

Power meter

Energy management

Measurement ,active, reactive and apparent energy; Measurement ,electrical network; Measurement ,energy

Metering type

Current I1, I2, I3, Iavg RMS; Neutral current IN RMS; Ground fault current Ig RMS; Voltage V12, V23, V31, VLLavg RMS; Voltage V1N, V2N, V3N, VLNavg RMS; Active power P, P1, P2, P3 total; Reactive power Q, Q1, Q2, Q3 total; Apparent power S, S1, S2, S3 total; Power factor; Active energy Ep IN/OUT/tot; Reactive energy Eq IN/OUT/tot; Apparent energy Es IN/OUT/tot; Demand current I1, I2, I3, In, Iavg; Demand power P, Q, S; Frequency; Phase sequence; Earth leakage current; Total current harmonic distortion THD (I); Total voltage harmonic distortion THD (V); Unbalance current; Unbalance voltage

Measurement voltage

208…828 V AC 50/60 Hz phase to phase; 120…480 V AC 50/60 Hz phase to neutral

Frequency measurement range

40…70 Hz

Measurement accuracy

Current I1, I2, I3, Iavg, Idemand for MTZ1: +/- 0.5 % 40...1600 x 1.2 A; Current I1, I2, I3, Iavg, Idemand for MTZ2: +/- 0.5 % 40...4000 x 1.2 A; Current I1, I2, I3, Iavg, Idemand for MTZ3: +/- 0.5 % 80...6300 x 1.2 A; Neutral current IN: +/- 1 %; Ground fault current Ig: +/- 5 %; Voltage V12, V23, V31, VLLavg: +/- 0.5 % 208...690 x 1.2 V; Voltage V1N, V2N, V3N, VLNavg: +/- 0.5 % 120...400 x 1.2 V; Active power P, P1, P2, P3, Pdemand: +/- 1 %; Reactive power Q, Q1, Q2, Q3, Qdemand: +/- 2 %; Apparent power S, S1, S2, S3, Sdemand: +/- 1 %; Power factor: +/- 2 %; Active energy Ep IN/OUT/tot: +/- 1 %; Reactive energy Ep IN/OUT/tot: +/- 2 %; Apparent energy Es IN/OUT/tot: +/- 1 %; Frequency: +/- 0.005 Hz; Earth leakage current: +/- 10 %; Unbalance current: +/- 0.5 %

Accuracy class

Class 5: total current harmonic distortion THD (I); Class 0.5: unbalance voltage; Class 1: active and reactive energy by pulse counting (+/- W.h, +/- VAR.h); Class 2: total voltage harmonic distortion THD (V)

Display type

LCD display - 128 x 96 pixels

Communication port protocol

Bluetooth 4.0 LE peer to peer 30 kbit/s; NFC peer to peer 28800 bauds conforming to ISO 15963; USB peer to peer 115 kbauds

Data recording

Alarm logs; Maintenance logs; Event logs; Data logs; Time stamping; Min/max of instantaneous values

Standards

EN/IEC 60947-2; EN/IEC 60255-1; EN/IEC 60947-1; EN/IEC 60092-202; EN/IEC 61010-1

Mounting location

Indoor use only

Environmental characteristic

Wet location not approved for use conforming to IEC 61010-1

Electromagnetic compatibility

Electrostatic discharge immunity test conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Conducted and radiated emissions A conforming to CISPR 22

Overvoltage category

IV conforming to IEC 61010-1

Measurement category

Category IV conforming to IEC 61010-2-30

Pollution degree

3 conforming to IEC 60947-1

Ambient air temperature for operation

-25…70 °C (operating); -35 °C (for start-up of product)

Relative humidity

95 % at 55 °C conforming to IEC 60068-2-30

Operating altitude

<= 2000 m without derating; <= 4000 m with operational voltage derating 600 V AC; <= 5000 m with operational voltage derating 560 V AC

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.8 cm

Package 1 Width

8.0 cm

Package 1 Length

21.5 cm

Package 1 Weight

366.0 g

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480811234
• SAP 1200498295
• Code 82621664
