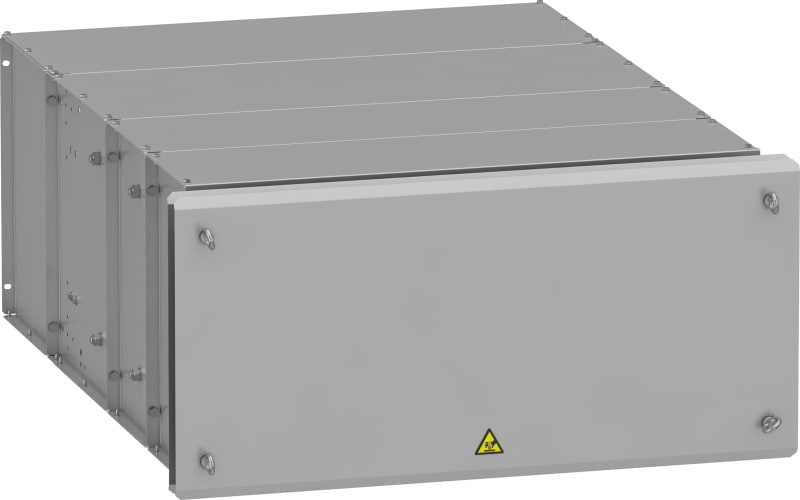

Schneider Electric braking resistor - 5 ohms - 32 kW - IP23 VW3A7756

Schneider Electric VW3A7756 Braking resistor 5 ohms 32kW IP23.

Manufacturer part number (MPN)

VW3A7756

EAN / GTIN

3606480802485

Sales unit

pcs

Power

32 kW

Resistance

5 Ω

Range compatibility

Altivar Machine ATV340; Altivar Process ATV900

Product or component type

Braking resistor

Ohmic value

5 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 75 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 110 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 132 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 160 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 22 kW 200...240 V severe cycle; Variable speed drive ATV930 wall mount 30 kW 200...240 V severe cycle; Variable speed drive ATV930 wall mount 37 kW 200...240 V severe cycle; Variable speed drive ATV930 wall mount 45 kW 200...240 V severe cycle; Variable speed drive ATV950 wall mount 75 kW 380...480 V severe cycle; Variable speed drive ATV340 55 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 220 kW 380...480 V medium cycle 3 per drive; Variable speed drive ATV930 wall mount 250 kW 380...480 V medium cycle 3 per drive; Variable speed drive ATV930 wall mount 310 kW 380...480 V medium cycle 4 per drive

Duty cycle

Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 220 kW; Severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 250 kW; Severe cycle (heavy duty) <6 s braking with 150 % braking torque for a 120 s cycle variable speed drive power = 315 kW

Average power available

32 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M12 bar wire for drive

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

540 mm

Height

1285 mm

Depth

1060 mm

Product weight

126 kg

IP degree of protection

IP23

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Number of Units in Package 1

1

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29

• EAN 3606480802485
• SAP 1200020054
• Code 81392220
