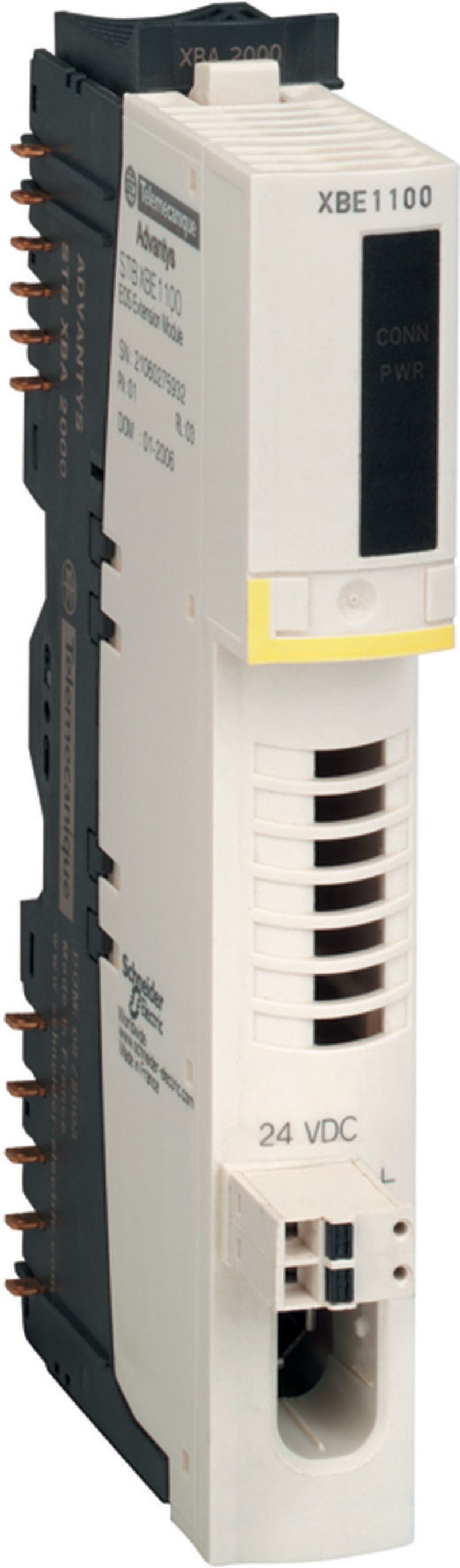

Schneider Electric Modicon STB - EOS internal bus extension kit STBXBE1100K

Schneider Electric STBXBE1100K "STB kit bus extension end for ""preferred"" modules".

Manufacturer part number (MPN)

STBXBE1100K

EAN / GTIN

3595863949254

Sales unit

pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

EOS internal bus extension kit

Kit composition

STBXBE1100 module; STBXBA2400 size 2 base; STBXTS2120, 2-terminal spring clamp connector; STBXTS1120, 2-terminal screw type connector

Product compatibility

Standard STB modules

[Us] rated supply voltage

24 V for DC

Supply voltage limits

19.2…30 V DC

Input current

310 mA

Hot swapping fallback

No

Protection type

Short-circuit; Overload; Reverse polarity

Local signalling

1 LED green for COM via connector; 1 LED green for PWR power supply

Housing colour

White

Electrical connection

Screw/spring terminal block

Height

65.1 mm

Width

18.4 mm

Depth

125 mm

IP degree of protection

IP20

Marking

CE

Product certifications

FM Class 1 Division 2; CSA; UL

Standards

IEC 61131-2 class 1

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.500 cm

Package 1 Width

8.000 cm

Package 1 Length

13.200 cm

Package 1 Weight

115.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

42

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.151 kg

Country of origin

FR

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw-/spring clamp connection

With potential separation

Yes

With power supply module

No

Suitable as segment module

Yes

Remote module

No

Fieldbus connection over separate bus coupler possible

Yes

Bus diagnosis possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90

• EAN 3595863949254
• SAP 1000052475
