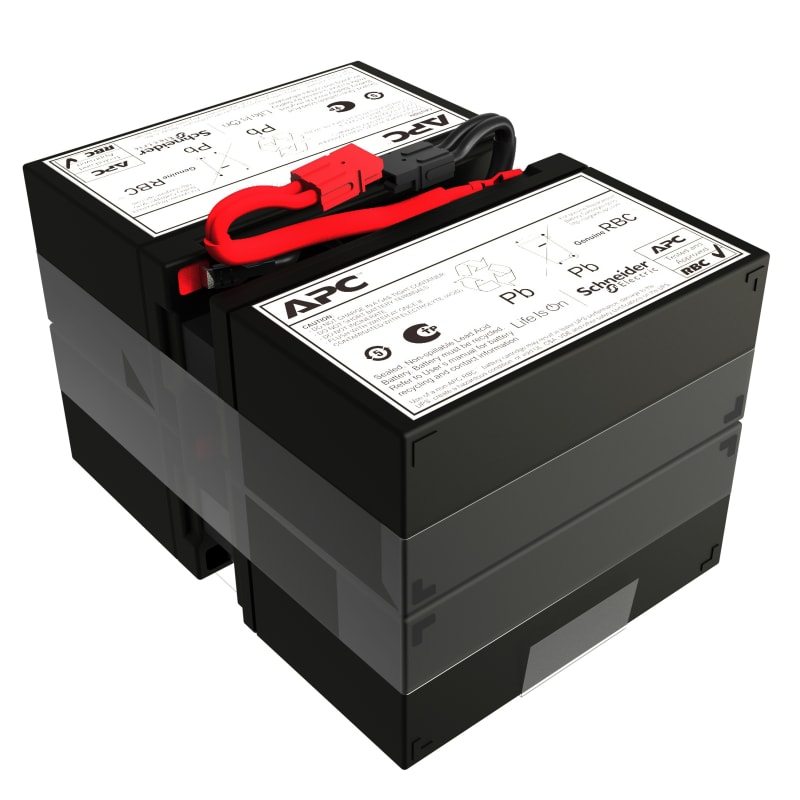

Schneider Electric APC Replacement Battery Cartridge, VRLA, 9AH, 48V DC, 2-Year warranty APCRBCV209
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric APCRBCV209 Easy Replacements Batt VRLA, 9Ah, 48V DC.
Technical Specifications
- Manufacturer part number (MPN)
- APCRBCV209
- EAN / GTIN
- 0731304451112
- Sales unit
- pcs
- Product or component type
- Replacement battery cartridge
- Main Output Voltage
- 48 V DC
- Number of rack unit
- 0U
- battery type
- VRLA
- Range of product
- Replacement Battery Cartridges
- Battery location
- Internal battery
- Number of battery blocks per string
- 4
- Number of battery free slots
- 0
- Number of battery filled slots
- 0
- Battery voltage
- 48 V
- Number of battery replacement quantity
- 1
- Height
- 130 mm
- Width
- 151 mm
- Depth
- 209 mm
- Product weight
- 10.1 kg
- mounting mode
- Not rack-mountable
- USB compatible
- No
- Battery capacity
- 9 Ah
- Product certifications
- CB
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...3000 m
- Relative humidity
- 0…95 % non-condensing
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…3000 m
- Storage Relative Humidity
- 10…95 % non-condensing
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 22.2 cm
- Package 1 Width
- 22.8 cm
- Package 1 Length
- 28.6 cm
- Package 1 Weight
- 11.5 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 12
- Package 2 Height
- 57.5 cm
- Package 2 Width
- 60 cm
- Package 2 Length
- 80 cm
- Package 2 Weight
- 146.5 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 48 V
- Weight
- 10100 g
- Size indication
- Block
- Capacity
- 9000 mAh
- Plastic housing
- Yes
- Length
- 279.5 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 209 mm
- Battery pack
- Yes
- Number of cells
- 4
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304451112
- SAP 1200723282
- Code 83845766
