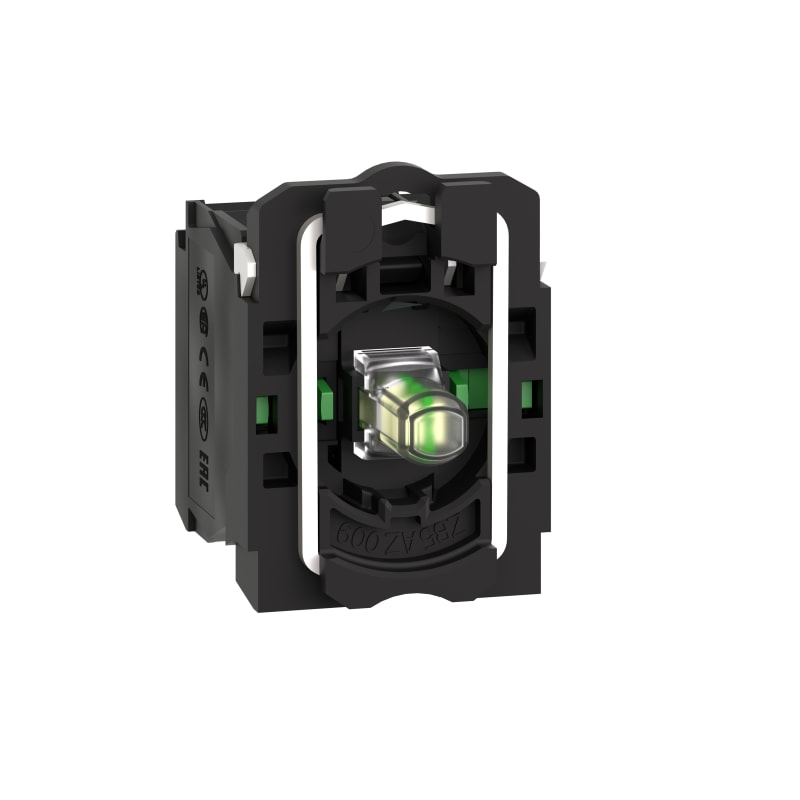

Schneider Electric Complete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 2NO, 24V AC DC ZB5AW0B13

Schneider Electric ZB5AW0B13 Illuminated push-button body White 24V 2NO.

Manufacturer part number (MPN)

ZB5AW0B13

EAN / GTIN

3389110908374

Sales unit

pcs

Package quantity

5 pcs

Voltage

24 V

Range of product

Harmony XB5

Product or component type

Complete body/contact assembly and light block

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Head type

Standard

Contacts type and composition

2 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Light source

Universal LED

Bulb base

Integral LED

Light block supply

Direct

Light source colour

White

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

32 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.042 kg

Contacts usage

Standard

Positive opening

Without

Operating travel

2.6 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.3 N NO changing electrical state

Operating torque

0.05 N.m NO changing electrical state

Mechanical durability

5000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Signalling type

Steady

[Us] rated supply voltage

24 V AC/DC at 50/60 Hz

Supply voltage limits

19.2…30 V DC; 21.6…26.4 V AC

Current consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Standards

IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-4; JIS C8201-5-1; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

Class B conforming to IEC 55011

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

24 V

Rated voltage Ue at AC 60 Hz

24 V

Rated voltage Ue at DC

24 V

Voltage type for actuating

AC/DC

HS Code

8536.50
