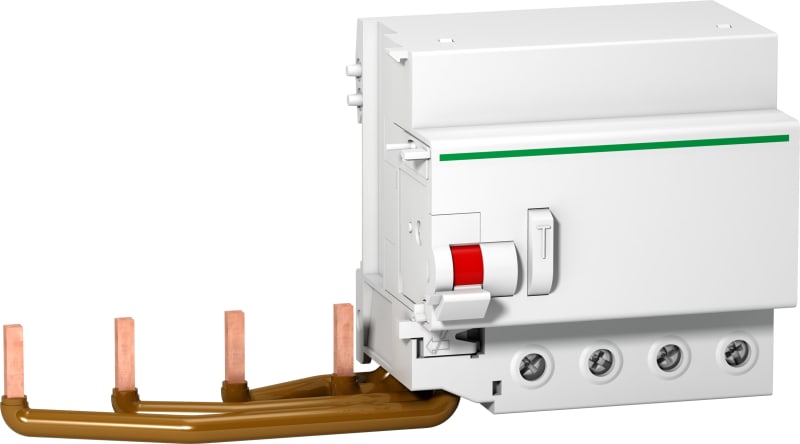

Schneider Electric Add-on residual current device, ACTI9 Vigi C120, 4P, 125A, A-SI type, selective, 1000MA, 230...415VAC A9N18561
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9N18561 Residual current module Vigi C120 4P 125A 1000mA S Si.
Technical Specifications
- Manufacturer part number (MPN)
- A9N18561
- EAN / GTIN
- 3606480376641
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Rated current
- 125 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 Vigi C120
- Product or component type
- Add-on residual current device
- Device short name
- Vigi C120
- Poles description
- 4P
- [In] rated current
- 125 A
- Network type
- AC
- Earth-leakage sensitivity
- 1000 mA
- Earth-leakage protection time delay
- Selective
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Standards
- EN 61009; IEC/EN 61009-2-1
- Device location in system
- Outgoer; Group incomer
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 230...415 V AC 50 Hz
- Residual current tripping technology
- Voltage independent
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- mounting mode
- Clip-on
- Mounting support
- 35 mm symmetrical DIN rail
- Electrical connection to mcb
- By screws
- 9 mm pitches
- 10
- Height
- 95 mm
- Width
- 198 mm
- Depth
- 73 mm
- Product weight
- 0.58 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Connections - terminals
- Tunnel type terminals 1…35 mm² flexible; Tunnel type terminals 1…50 mm² rigid
- Wire stripping length
- 15 mm
- Tightening torque
- 3.5 N.m
- IP degree of protection
- IP20
- Pollution degree
- 3 conforming to IEC 60947-2
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…60 °C
- Country of origin
- FR
- Warranty (in months)
- 18
- Power loss
- 3.6 W
- Nominal current
- 125 A
- Rated fault current adjustable
- No
- Delay adjustable
- No
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50 Hz
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Anti-nuisance tripping version
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480376641
- SAP 1000343801
- Code 81006503
