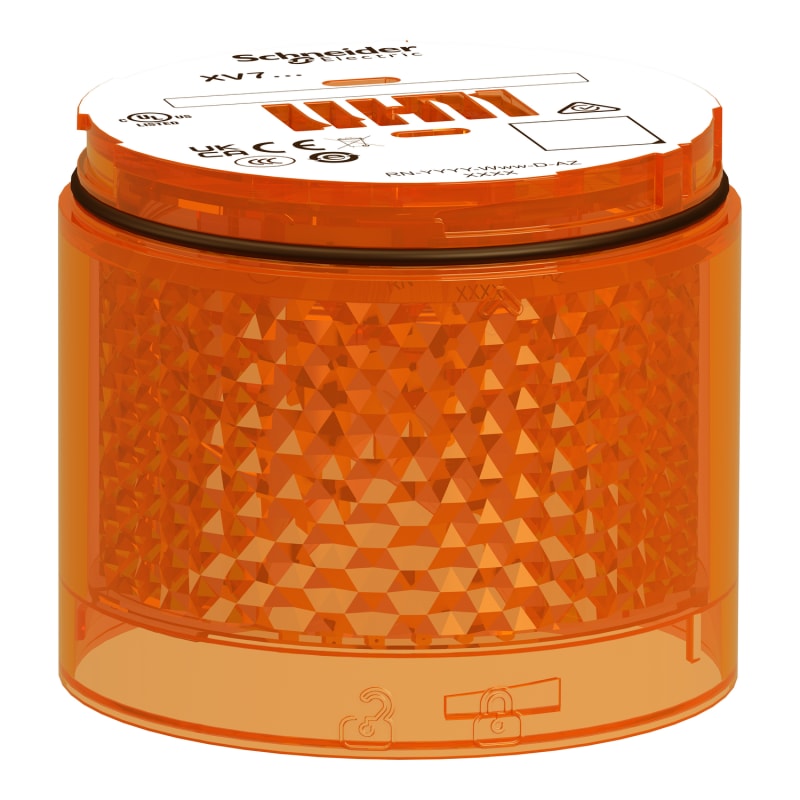

Light Unit with rotary LED in orange

Schneider Electric XVB7CR5 Light Unit for XVB7 lyskolonne in Ø70 mm in orange with LED where roterer.

Manufacturer part number (MPN)

XVB7CR5

EAN / GTIN

3606487129486

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XVB7

Product or component type

Light module

Device composition

Standard lens

Device short name

XVB7

Mounting diameter

70 mm

Signalling type

Rotating

Light color

LED, orange

Material

PC (polycarbonate)

Product weight

0.106 kg

Mounting position

Upright/inverted

Complementary information

Rotating speed: 135 rotations/minute; Rotating direction: clock wise

Service life in hours

50000 h

[Ue] rated operational voltage

24 V AC/DC

Rated operational voltage limits

21.6...26.4 V AC/DC

Current consumption

20 mA at 24 V AC; 25 mA at 24 V DC

Inrush current

0.5 A

Electrical shock protection class

Class II

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Number of Units in Package 1

1

Number of Units in Package 2

60

Warranty (in months)

18

Colour

Orange

Outer diameter

70 mm

Function

Continuous light

Voltage type

AC/DC

Lamp type

LED

Degree of protection (IP)

IP66

Operating voltage AC 50 Hz

21.6–26.4 V

Operating voltage AC 60 Hz

21.6–26.4 V

Operating voltage DC

21.6–26.4 V

Repetition frequency settable

No

Country of origin

Germany

HS Code

8531.80

• EAN 3606487129486
• SAP 1200934891
• Code 84224026
