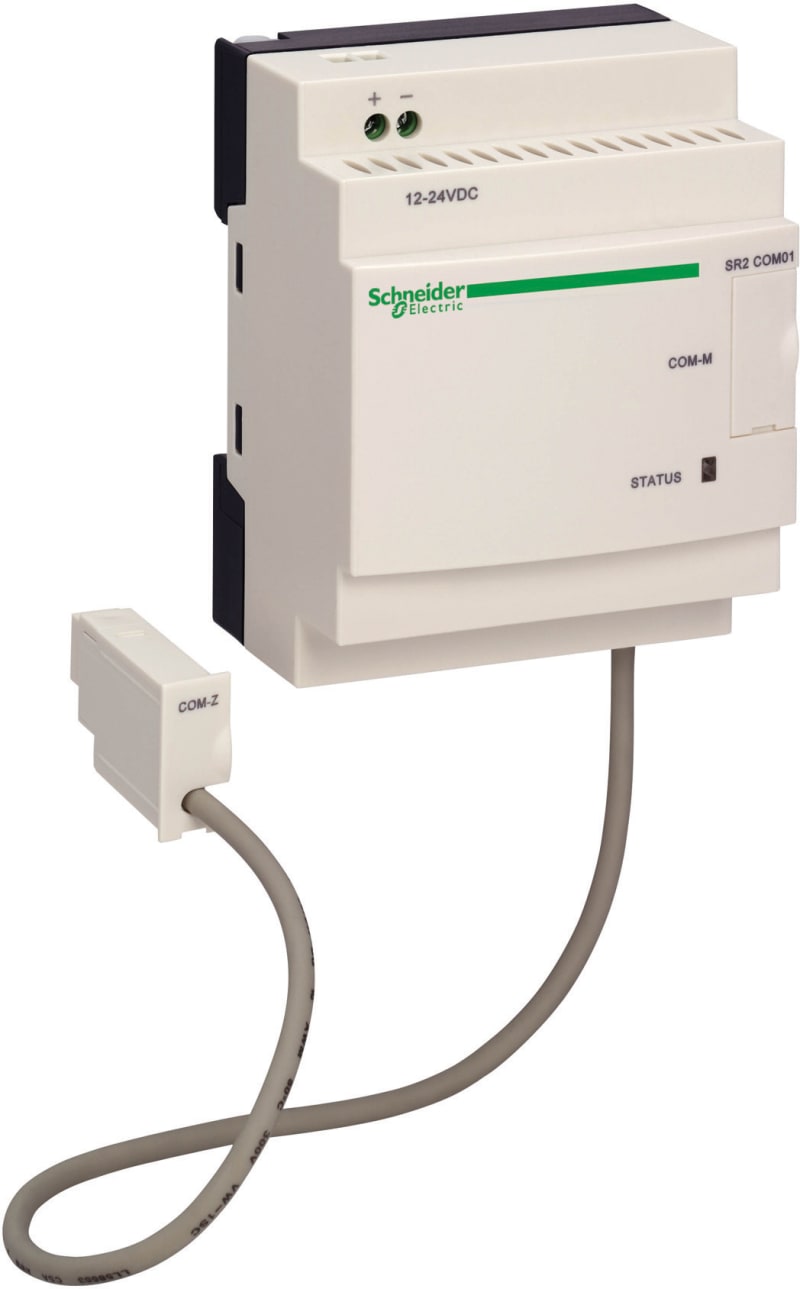

Zelio Logic Communication Module

Schneider Electric SR2COM01 Zelio Logic kommunikasjonsmod.

Manufacturer part number (MPN)

SR2COM01

EAN / GTIN

3389110550207

Sales unit

pcs

Package quantity

20 pcs

Range of product

Zelio Logic

Product or component type

Modem communication interface

Data backed up

Flash memory

Kit composition

1 x SR2CBL07; Modem communication interface

Product compatibility

SR2E.....; SR.B.....

Function available

Update firmware monitoring; Send alarm to e-mail address; Send alarm/receive instruction; Transfer program

Number of messages

28

Electrical data recording

Discrete and digital value; Telephone/e-mail; Date and time

[Us] rated supply voltage

12...24 V DC

Supply voltage limits

10…28.8 V

Maximum supply current

30 mA 12 V; 30 mA 24 V; 550 A

Power dissipation in W

1.1 W

Reverse polarity protection

With

Associated fuse rating

1 A

Electrical connection

1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol for link with the modem, AT commands; 1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)

Insulation

1780 V optocoupler, connector type: Com-Z specific to Zelio; By the cable SR2 CBL07, connector type: Com-M specific to Zelio

Connections - terminals

Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid; Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end

Tightening torque

0.5 N.m

Product weight

0.2 kg

Product certifications

GOST; CSA; C-Tick; UL

Standards

IEC 61000-4-11; IEC 61000-4-3; IEC 60068-2-27 Ea; IEC 61000-4-4 level 3; IEC 61000-4-12; IEC 61000-4-5; IEC 61000-4-2 level 3; IEC 61000-4-6 level 3; IEC 60068-2-6 Fc

IP degree of protection

IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2

Disturbance radiated/conducted

Class B conforming to IEC 55022-11 Group 1

Pollution degree

2 conforming to IEC 61131-2

Ambient air temperature for operation

-20…40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2

Ambient air temperature for storage

-40…70 °C

Operating altitude

2000 m

Maximum altitude transport

3048 m

Relative humidity

95 % without condensation or dripping water

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.600 cm

Package 1 Width

10.200 cm

Package 1 Length

13.500 cm

Package 1 Weight

219.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.865 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

12–24 V

Voltage type (supply voltage)

DC

Switching current

0.03 A

With relay output

No

Number of HW-interfaces RS-232

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

With display

No

Degree of protection (IP)

IP20

Basic device

Yes

Expandable

No

Expansion device

Yes

With time switch clock

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

35 mm

Height

90 mm

Depth

57 mm

HS Code

8537.10
