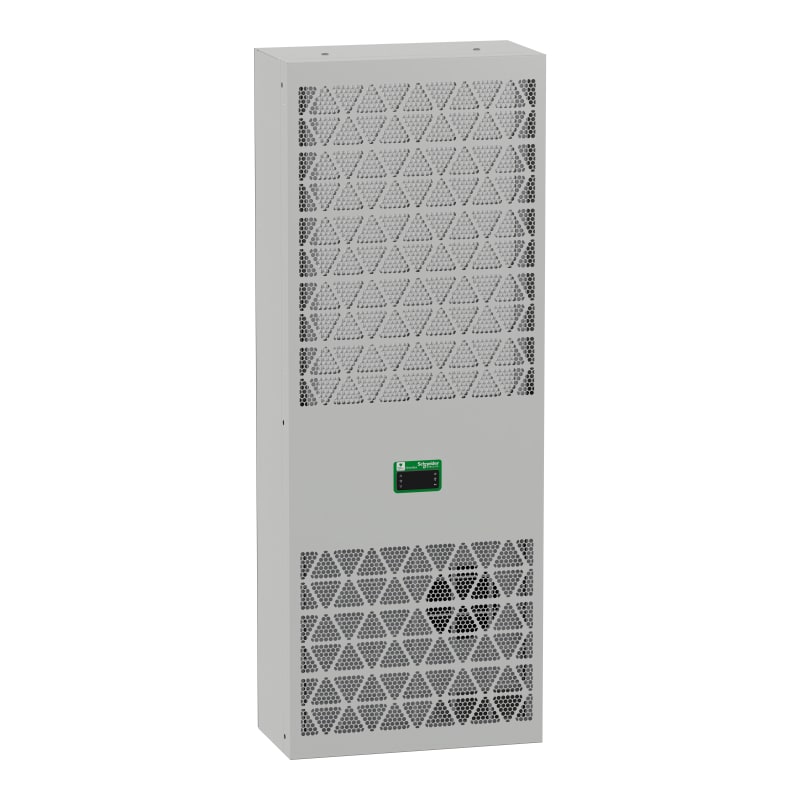

Schneider Electric ClimaSys CU Side-Mounted Cooling Unit 4 kW 400 V IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
ClimaSys CU side-mounted enclosure cooling unit rated 3910 W at L35-L35 conditions on 380-415 V three-phase 50 Hz or 400/460 V 60 Hz supply. Modbus interface, electronic controller with 20-50 °C setpoint range and IP55 protection; 1300 x 490 x 250 mm envelope in RAL 7035 steel with R-513A refrigerant. Suitable for cooling large control cabinets in indoor industrial installations.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCU4K3P4DG
- EAN / GTIN
- 3606486055298
- Sales unit
- pcs
- Power
- 4 kW
- Range
- ClimaSys
- Product name
- CU
- mounting type
- Side
- Product or component type
- Cooling unit
- Installation
- Indoor side
- Product destination
- For enclosure
- mounting mode
- By screws
- Supply Voltage
- 380...415 V 3 phases 50 Hz EN/IEC; 400/460 V +/- 6 % 3 phases 60 Hz UL
- Rated Power
- 3910 W
- Cooling power
- 3910 W 50/60 Hz L35-L35; 3120 W 50/60 Hz L35-L50
- Height
- 1300 mm
- Width
- 490 mm
- Depth
- 250 mm
- [In] rated current
- 3.6 A
- Inrush current
- 15 A
- Power consumption in W
- 1810 W at 50/60 Hz, L35-L35; 2220 W at 50/60 Hz, L35-L50
- Energy efficiency ratio
- 2.2
- Control type
- Electronic controller
- Temperature setting range
- 20…50 °C at 50/60 Hz
- Ambient air temperature for operation
- 20…50 °C at 50/60 Hz inside the enclosure: ; 5…55 °C at 50/60 Hz outside the enclosure:
- Noise level
- 77 dB
- Pressure
- 32 bar
- Flow rate
- Internal circuit: 1200 m3/h at 50/60 Hz; External circuit: 1400 m3/h at 50/60 Hz
- Product weight
- 62.2 kg
- Cooling gas type
- R513a (0.679 kg)
- Type of filter
- Optional external circuit filter
- Recommended circuit breaker protection
- M9F23316
- Thermal protection Recommended (fuse)
- 3 phases 15 A (T)
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Product certifications
- UL; IEC; EN
- Directives
- 2006/42/EC - machinery; 2014/30/EU - electromagnetic compatibility; 2011/65/EU - RoHS
- Standards
- EN/ISO 12100; EN 60335-1; EN 60335-2-40; EN 61000-3-2; EN 61000-3-3; EN 61000-6-2; EN 61000-6-3; EN/IEC 63000:2018; EN 14511
- IP degree of protection
- IP55 conforming to IEC 60529 (on the internal circuit); IP24 conforming to IEC 60529 (on the external circuit)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 60.000 cm
- Package 1 Width
- 80.000 cm
- Package 1 Length
- 152.000 cm
- Package 1 Weight
- 67.200 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 2
- Package 2 Height
- 164.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 172.000 kg
- Country of origin
- MT
- Warranty (in months)
- 18
- Model
- Air/air
- Voltage type
- AC
- Total cooling capacity according to EN 14511 at 35/35 °C
- 4000 W
- Type of refrigerant
- R134a
