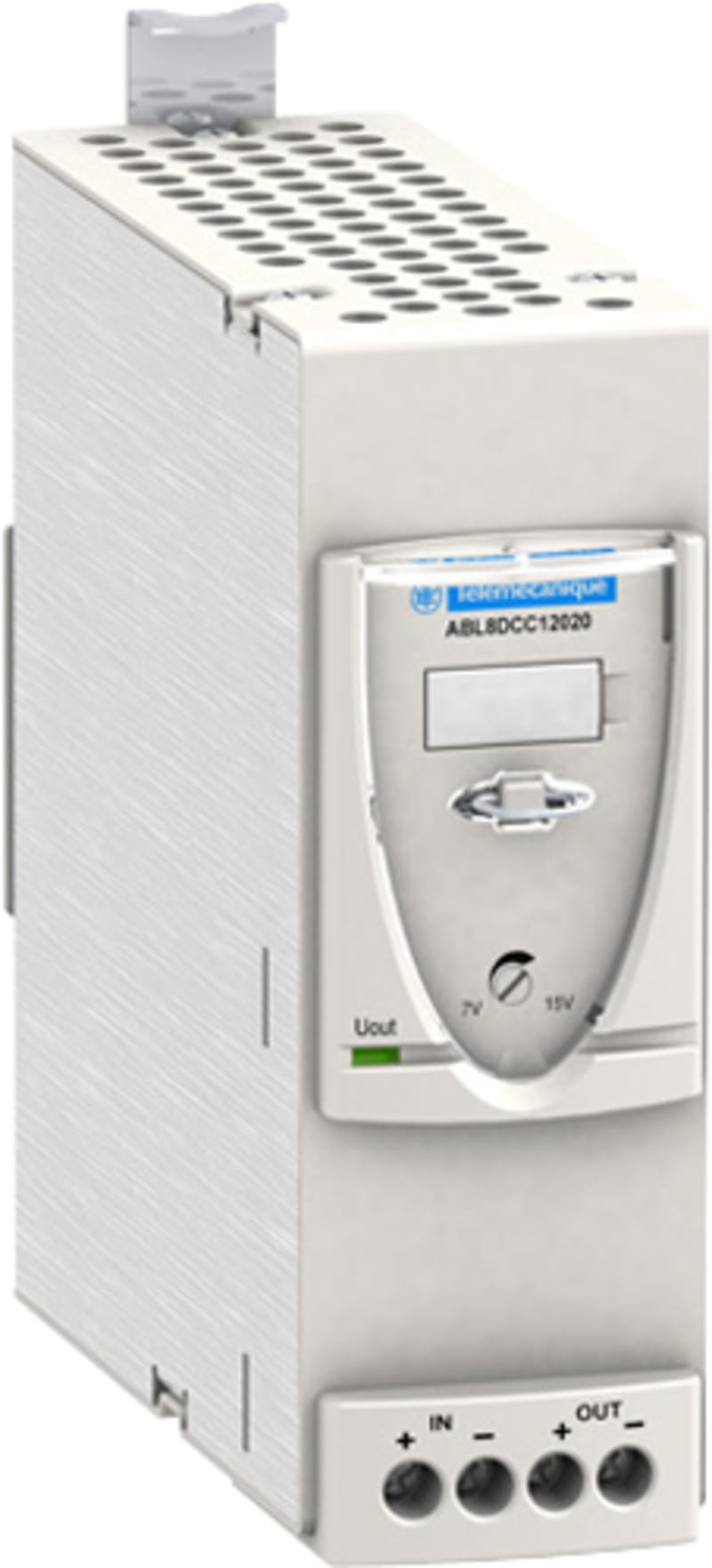

DC/DC Module 24VDC/7-15VDC 2A

Schneider Electric ABL8DCC12020 DC/DC converter for universal power supply. 7-15 V and 2A.

Manufacturer part number (MPN)

ABL8DCC12020

EAN / GTIN

3389119406895

Sales unit

pcs

Package quantity

11 pcs

Voltage

24 V DC

Rated current

2 A

Range of product

Phaseo Universal

Product or component type

Converter module

Rated power in W

24 W

Input voltage

24...28.8 V DC

Output voltage

12 V DC

Power supply output current

2 A

Input voltage limits

22...30 V

Efficiency

82 %

Power dissipation in W

4 W

Input protection type

Against reverse polarity

Output voltage limits

7...15 V

Line and load regulation

1...3 %

Residual ripple

<= 100 mV

Output protection type

Against overload, protection technology: automatic reset; Against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset; Against short-circuits, protection technology: automatic reset

Connections - terminals

For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG; For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG

Fixing mode

By clips on 35 mm symmetrical DIN rail, operating position: horizontal; By clips on 35 mm symmetrical DIN rail, operating position: vertical

Operating altitude

2000 m

Name of test

Induced electromagnetic field conforming to IEC 61000-4-6 level 3; Radiated electromagnetic field conforming to IEC 61000-4-3 level 3; Rapid transient conforming to IEC 61000-4-4 level 3; Surge conforming to IEC 61000-4-5 level 2; Conducted/radiated emissions conforming to EN 55022 class B; Electrostatic discharges conforming to IEC 61000-4-2; Emission conforming to IEC 61000-6-3

Local signalling

1 LED (green) for output voltage (> 6 V)

Product weight

0.3 kg

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…90 % during operation; 0…95 % during storage

Overvoltage category

Class 3

Vibration resistance

2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2; 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2

Dielectric strength

500 V between input and ground; 500 V between input and output; 500 V between output and ground

Product certifications

RCM; EAC; cCSAus; UL

Environmental characteristic

EMC conforming to EN 50081-1; EMC conforming to IEC 61000-6-3; EMC conforming to IEC 61000-6-2; Safety conforming to IEC 60950-1; Safety conforming to IEC 61204

Country of origin

PH

Warranty (in months)

18

Voltage type (supply voltage)

DC

Max. output current 1

2 A

Nominal value output voltage 1

12 V

Nominal value output current 1

2 A

Power output

24 W

Type of electric connection

Screw connection

Wall mounting possible

No

Width

44 mm

Height

143 mm

Depth

140 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP20

HS Code

8504.40
