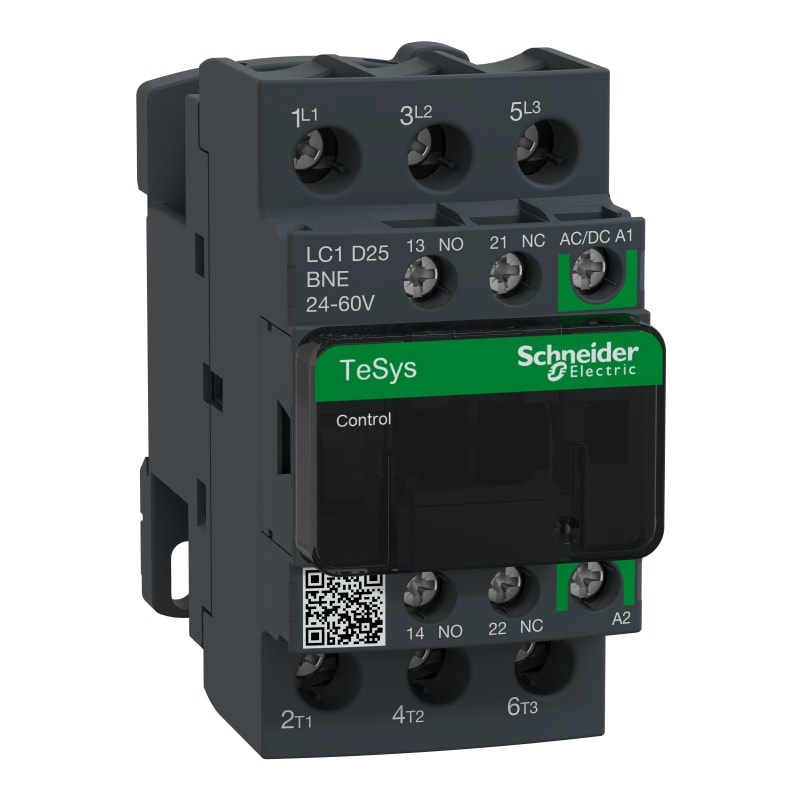

Schneider Electric Contactor, TeSys Deca Advanced, 3P(3NO), AC-3/3E, ≤440V, 25A, 24...60V AC/DC coil, screw clamp terminals LC1D25BNE

Schneider Electric LC1D25BNE — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. Contactor, TeSys Deca Advanced, 3P (1NO+1NC auxiliary contact), AC3 25A, 24-60V AC/DC coil.

Manufacturer part number (MPN)

LC1D25BNE EAN / GTIN: 3606480987724 HS code: 8536.90 Sales unit: pcs Package quantity: 15 pcs Voltage: 24-60 V Rated current: 25 A Number of poles: 3P Range of product: TeSys Deca Advanced Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load; Motor control Utilisation category: AC-3; AC-1; AC-3e Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 25 A (at <60 °C) at <= 440 V AC-3 for power circuit; 40 A (at <60 °C) at <= 440 V AC-1 for power circuit; 25 A (at <60 °C) at <= 440 V AC-3e for power circuit [Uc] control circuit voltage: 24...60 V AC 50/60 Hz; 24...60 V DC Motor power kW: 5.5 kW at 220...230 V AC 50 Hz (AC-3); 11 kW at 380...400 V AC 50 Hz (AC-3); 11 kW at 415 V AC 50 Hz (AC-3); 11 kW at 440 V AC 50 Hz (AC-3); 15 kW at 500 V AC 50 Hz (AC-3); 15 kW at 660...690 V AC 50 Hz (AC-3); 5.5 kW at 220...230 V AC 50 Hz (AC-3e); 11 kW at 380...400 V AC 50 Hz (AC-3e); 11 kW at 415 V AC 50 Hz (AC-3e); 11 kW at 440 V AC 50 Hz (AC-3e); 15 kW at 500 V AC 50 Hz (AC-3e); 15 kW at 660...690 V AC 50 Hz (AC-3e) Motor power hp: 2 hp at 115 V AC 60 Hz for 1 phase motors; 3 hp at 230/240 V AC 60 Hz for 1 phase motors; 7.5 hp at 200/208 V AC 60 Hz for 3 phases motors; 7.5 hp at 230/240 V AC 60 Hz for 3 phases motors; 15 hp at 460/480 V AC 60 Hz for 3 phases motors; 20 hp at 575/600 V AC 60 Hz for 3 phases motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for signalling circuit; 40 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 450 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit; 50 A 40 °C - 10 min for power circuit; 120 A 40 °C - 1 min for power circuit; 240 A 40 °C - 10 s for power circuit; 380 A 40 °C - 1 s for power circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at <= 690 V coordination type 1 for power circuit; 40 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 2 mOhm - Ith 40 A 50 Hz for power circuit Power dissipation per pole: 3.2 W AC-1; 1.25 W AC-3; 1.25 W AC-3e [Ui] rated insulation voltage: Power circuit: 690 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-1 Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 15 Mcycles Electrical durability: 2 Mcycles 21 A AC-3 at Ue <= 440 V; 0.9 Mcycles 40 A AC-1 at Ue <= 440 V; 2 Mcycles 21 A AC-3e at Ue <= 440 V Control circuit type: AC/DC at 50/60 Hz AC/DC electronic Coil technology: Built-in bidirectional peak limiting Control circuit voltage limits: <= 0.1 Uc (-40…70 °C):drop-out AC/DC; 0.85...1.1 Uc (-40…60 °C):operational AC; 0.8...1.1 Uc (-40…60 °C):operational DC; 1...1.1 Uc (60…70 °C):operational AC/DC Inrush power in VA: 15 VA 50/60 Hz (at 20 °C) Inrush power in W: 14 W (at 20 °C) Hold-in power consumption in VA: 0.9 VA 50/60 Hz (at 20 °C) Hold-in power consumption in W: 0.6 W at 20 °C Heat dissipation: 0.6 W at 50/60 Hz Operating time: 45...55 ms closing; 20...90 ms opening Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid; Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid; Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M4; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M3.5 Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching voltage: 17 V for signalling circuit minimum switching current: 5 mA for signalling circuit Insulation resistance: > 10 MOhm for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Mounting support: Plate; Rail Standards: EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC 60335-1 Product certifications: CCC; CSA; EAC; UL; KC; DNV-GL; LROS (Lloyds register of shipping); UKCA IP degree of protection: IP20 front face conforming to IEC 60529 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device: -40…60 °C; 60…70 °C with derating Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) ; Shocks contactor closed (15 Gn for 11 ms) ; Shocks contactor open (8 Gn for 11 ms) Height: 85 mm Width: 45 mm Depth: 92 mm Product weight: 0.433 kg Warranty (in months): 18

HS Code

8536.90

• EAN 3606480987724
• SAP 1200023441
• Code 81438512
