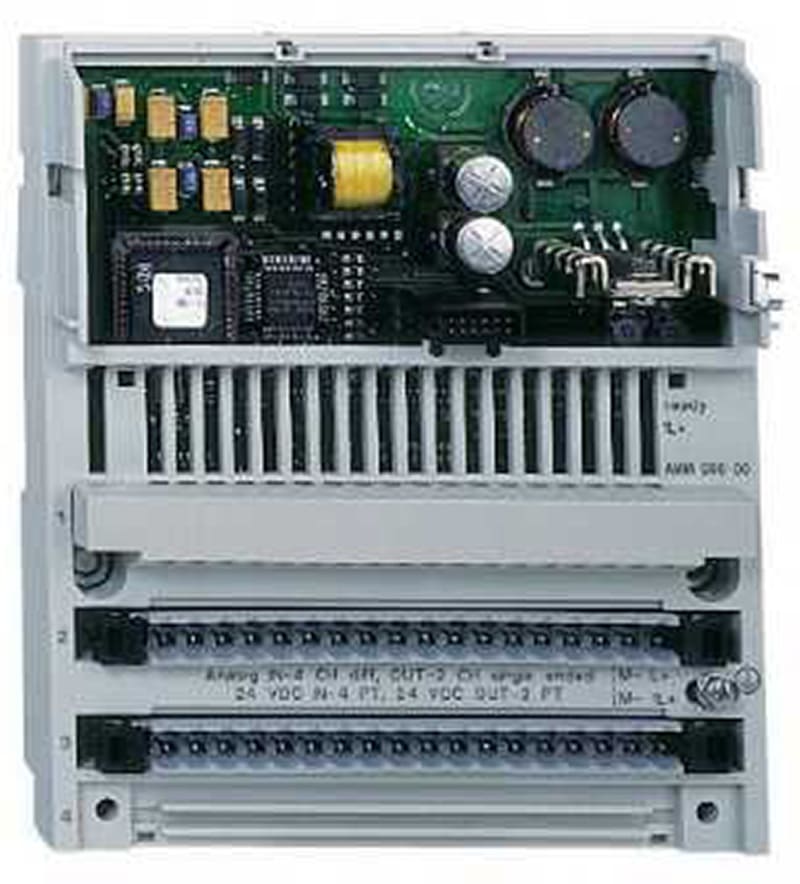

Schneider Electric distributed analog/discrete I/O Modicon Momentum 170AMM09000

Schneider Electric 170AMM09000 4/2 In/out, 4/2 In/out Ana.

Manufacturer part number (MPN)

170AMM09000

EAN / GTIN

3595861000292

Sales unit

pcs

Package quantity

4 pcs

Range of product

Modicon Momentum automation platform

Product or component type

Analogue,discrete I/O base

Group of channels

1 group of 2 discrete outputs; 1 group of 4 discrete inputs; 1 group of 4 analog differential inputs; 1 group of 2 analog outputs

Analogue output range

+/- 10 V 12 bits; 0...20 mA 12 bits

Output short-circuit protection

With discrete output

Output overload protection

With discrete output

Discrete input number

4

Conversion consistency

+/- 0.02 % +/- 10 V analogue input circuit; +/- 0.04 % +/- 20 mA analogue input circuit; +/- 0.04 % +/- 5 V analogue input circuit; +/- 0.04 % 1...5 V analogue input circuit; +/- 0.04 % 4...20 mA analogue input circuit

Current state 0 guaranteed

<= 1.2 mA (discrete input)

Current state 1 guaranteed

>= 2.5 mA (discrete input)

Input overvoltage protection

-50…50 V <= 100 s analogue input circuit; -30…30 V 24 V analogue input circuit

Input resistance

1 MOhm analogue input circuit; 4 kOhm discrete input

Output load

= 3 kOhm +/- 10 V analogue output

Conversion error

+/- 0.35 % +/- 10 V 25 °C analogue output; +/- 0.35 % 0...20 mA 25 °C analogue output; +/- 0.70 % +/- 10 V 60 °C analogue output; +/- 0.70 % 0...20 mA 60 °C analogue output; 0,0008 +/- 10 V 25 °C analogue input circuit; 0,0015 +/- 10 V 60 °C analogue input circuit; 0,0016 +/- 20 mA 25 °C analogue input circuit; 0,0016 +/- 5 V 25 °C analogue input circuit; 0,0016 1...5 V 25 °C analogue input circuit; 0,0016 4...20 mA 25 °C analogue input circuit; 0,003 +/- 20 mA 60 °C analogue input circuit; 0,003 +/- 5 V 60 °C analogue input circuit; 0,003 1...5 V 60 °C analogue input circuit; 0,003 4...20 mA 60 °C analogue input circuit

Fail state

For analogue input circuit: hold; For analogue input circuit: reset to zero

Maximum voltage drop

<0.5 V 1 A at state on discrete output

Operating rate

100 cyc/s resistive 1 A discrete output; 1000 cyc/h inductive 1 A discrete output; 8 cyc/s tungsten <2.4 W discrete output

Isolation voltage

500 V (duration = 1 min) between analogue I/O and operating voltage; 500 V (duration = 1 min) between operating voltage and I/O from ground

Discrete input voltage

24 V DC

Discrete input logic

Positive

Voltage state 0 guaranteed

-3...5 V

Voltage state 1 guaranteed

11...24 V

Analogue input type

Differential, input range: +/- 10 V; Differential, input range: +/- 20 mA; Differential, input range: +/- 5 V; Differential, input range: 1...5 V; Differential, input range: 4...20 mA

Analogue input resolution

12 bits; 13 bits; 14 bits

Common mode rejection

> 54 dB for analogue input circuit

Input voltage limits

< 30 V

Discrete output logic

Positive

Discrete output current

1 A per point; 2 A per group; 2 A per module

Maximum leakage current

1 mA for discrete output

Conversion time

<= 1 ms for analog output; 10 ms for analogue input circuit

Analogue output resolution

12 bits, +/- 10 V; 12 bits, 0...20 mA

Response time

< 0.1 ms from state 0 to state 1 for discrete output; < 0.1 ms from state 1 to state 0 for discrete output; 2.2 ms from state 0 to state 1 for discrete input; 3.3 ms from state 1 to state 0 for discrete input

[Us] rated supply voltage

24 V DC

Local signalling

8 LEDs for channel status

Current consumption

<= 350 mA at 24 V DC; 200 mA at 24 V DC

Maximum power dissipation in W

6 W

Height

125 mm

Width

141.5 mm

Depth

47.5 mm

Protective treatment

TC

Marking

CE

Product certifications

UL; CSA; FM Class 1 Division 2

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

0…95 % without condensation

Operating altitude

<= 5000 m

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of analogue inputs

5

Number of analogue outputs

2

Analogue inputs configurable

No

Analogue outputs configurable

No

Number of digital inputs

4

Number of digital outputs

1

Digital inputs configurable

No

Digital outputs configurable

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Input current at signal 1

20 mA

Permitted voltage at input

-10–10 V

Type of voltage (input voltage)

DC

Output current at digital output

0.02 A

Output voltage at digital output

-10–10 V

Type of output voltage

DC

Short-circuit protection, digital outputs available

Yes

Analogue input, current

No

Analogue input, voltage

Yes

Analogue input, resistor

No

Analogue input, resistor temperature

No

Analogue input, thermocouple

No

Resolution of the analogue inputs

12 Bit

Analogue input signal configurable

No

Analogue output, current

Yes

Analogue output, voltage

Yes

Resolution of the analogue outputs

12 Bit

Analogue output signal configurable

No

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

HS Code

8538.90

• EAN 3595861000292
• SAP 1000032634
• Code 8251568
