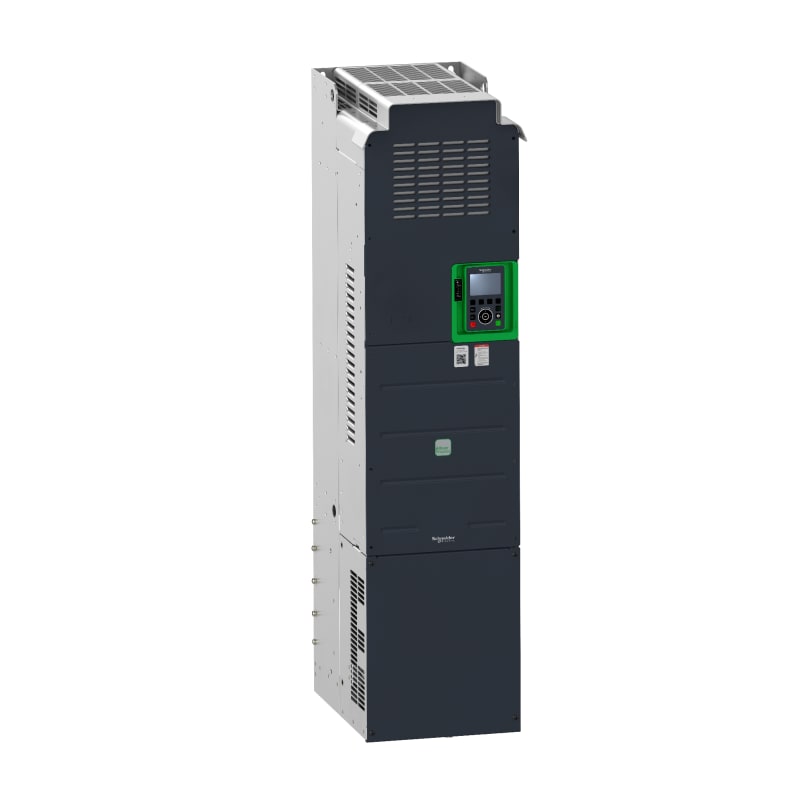

Schneider Electric Variable speed drive, Altivar Process ATV900, ATV930, 110 kW, 380...480 V, with braking unit, IP20 ATV930C11N4

Schneider Electric ATV930C11N4 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 110KW 400V.

Manufacturer part number (MPN)

ATV930C11N4

EAN / GTIN

3606481490384

HS code

8504.40

Sales unit

pcs

IP rating

IP00

Power

110 kW

Range of product

Altivar Process ATV900

Product specific application

Process for industrial

Product or component type

Variable speed drive

Variant

Standard version; With braking chopper

Device application

Industrial application

Product destination

Synchronous motors; Asynchronous motors

Network number of phases

3 phases; Single phase

mounting mode

Wall mount

Continuous output current

211 A at 4 kHz for normal duty; 173 A at 4 kHz for heavy duty

Communication port protocol

Ethernet IP/Modbus TCP; Modbus

option module

Slot A: communication module for Profibus DP V1; Slot A: communication module for PROFINET; Slot A: communication module for DeviceNet; Slot A: communication module for EtherCAT; Slot A: communication module for CANopen daisy chain RJ45; Slot A: communication module for CANopen SUB-D 9; Slot A: communication module for CANopen screw terminals; Slot A/slot B/slot C: digital and analog I/O extension module; Slot A/slot B/slot C: output relay extension module; Slot B: 5/12 V digital encoder interface module; Slot B: analog encoder interface module; Slot B: resolver encoder interface module

[Us] rated supply voltage

380...480 V - 15...10 %

Relative symmetric mains voltage tolerance

10 %

Relative symmetric network frequency tolerance

5 %

nominal output current

211.0 A

Motor power kW

110.0 kW for normal duty; 90.0 kW for heavy duty

EMC filter

Integrated; With EMC plate option

IP degree of protection

IP21

Degree of protection

UL type 1

Electrical connection

Line side: screw terminal 2 x 50...3 x 120 mm²/2 x 1/0 AWG...2 x 300 kcmil; DC bus: screw terminal 0.5...1.5 mm²/20 AWG...16 AWG; Control: screw terminal 0.5...1.5 mm²/20 AWG...16 AWG

Transmission rate

10/100 Mbit/s for Ethernet IP/Modbus TCP; 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial

Data format

8 bits, configurable odd, even or no parity for Modbus serial

Type of polarization

No impedance for Modbus serial

Number of addresses

1…247 for Modbus serial

Local signalling

Local diagnostic: 3 LEDs (mono/dual colour); 5 LEDs (dual colour); 2 LEDs (dual colour); 1 LED (red)

Isolation

Between power and control terminals

Discrete input number

10

Relay output type

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles; Configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles; Configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles

Physical interface

Ethernet; 2-wire RS 485

Connector type

2 RJ45; 1 RJ45

Method of access

Slave Modbus TCP

Transmission frame

RTU

4 quadrant operation possible

True

Asynchronous motor control profile

Constant torque standard; Variable torque standard; Optimized torque mode

Synchronous motor control profile

Permanent magnet motor; Synchronous reluctance motor

Maximum output frequency

599 Hz

Acceleration and deceleration ramps

Linear adjustable separately from 0.01...9999 s; S, U or customized

Motor slip compensation

Adjustable; Automatic whatever the load; Can be suppressed; Not available in permanent magnet motor law

Switching frequency

1...8 kHz adjustable; 2.5...8 kHz with derating factor

Nominal switching frequency

2.5 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Line current

201.0 A at 380 V (normal duty); 170.0 A at 380 V (heavy duty); 165.0 A at 480 V (normal duty); 143.0 A at 480 V (heavy duty)

Maximum input current

201.0 A

Maximum output voltage

480.0 V

Apparent power

121.8 kVA at 380...480 V (normal duty); 102.6 kVA at 380...480 V (heavy duty)

Maximum transient current

253 A during 60 s (normal duty); 259.5 A during 60 s (heavy duty)

Network frequency

50...60 Hz

Prospective line Isc

50 kA

Base load current at high overload

173.0 A

Base load current at low overload

211.0 A

With safety function Safely Limited Speed (SLS)

True

With safety function Safe brake management (SBC/SBT)

True

With safety function Safe Operating Stop (SOS)

False

With safety function Safe Position (SP)

False

With safety function Safe programmable logic

False

With safety function Safe Speed Monitor (SSM)

False

With safety function Safe Stop 1 (SS1)

True

With sft fct Safe Stop 2 (SS2)

False

With safety function Safe torque off (STO)

True

With safety function Safely Limited Position (SLP)

False

With safety function Safe Direction (SDI)

False

Protection type

Thermal protection: motor; Safe torque off: motor; Motor phase break: motor; Thermal protection: drive; Safe torque off: drive; Overheating: drive; Overcurrent between output phases and earth: drive; Overload of output voltage: drive; Short-circuit protection: drive; Motor phase break: drive; Overvoltages on the DC bus: drive; Line supply overvoltage: drive; Line supply undervoltage: drive; Line supply phase loss: drive; Overspeed: drive; Break on the control circuit: drive

Quantity per set

1

Width

320 mm

Height

1205 mm

Depth

393 mm

Product weight

104 kg

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Noise level

69.9 dB conforming to 86/188/EEC

Vibration resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Shock resistance

6 gn for 11 ms conforming to IEC 60068-2-27

Environmental characteristic

Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3; Dust pollution resistance class 3S3 conforming to IEC 60721-3-3

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3

Ambient air temperature for operation

-15…50 °C (without derating); 50…60 °C (with derating factor)

Operating position

Vertical +/- 10 degree

Product certifications

UL; CSA; TÜV

Marking

CE

Standards

UL 508C; IEC 61800-3; IEC 61800-5-1; IEC 61000-3-12; IEC 60721-3; IEC 61508; IEC 13849-1

Maximum THDI

<48 % full load conforming to IEC 61000-3-12

Assembly style

Enclosed

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Environmental class (during operation)

Class 3C3 according to IEC 60721-3-3; Class 3S3 according to IEC 60721-3-3

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Permitted relative humidity (during operation)

Class 3K5 according to EN 60721-3

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Pollution degree

2

Ambient air transport temperature

-25…70 °C

Ambient air temperature for storage

-25…70 °C

Country of origin

CN

Warranty (in months)

18
