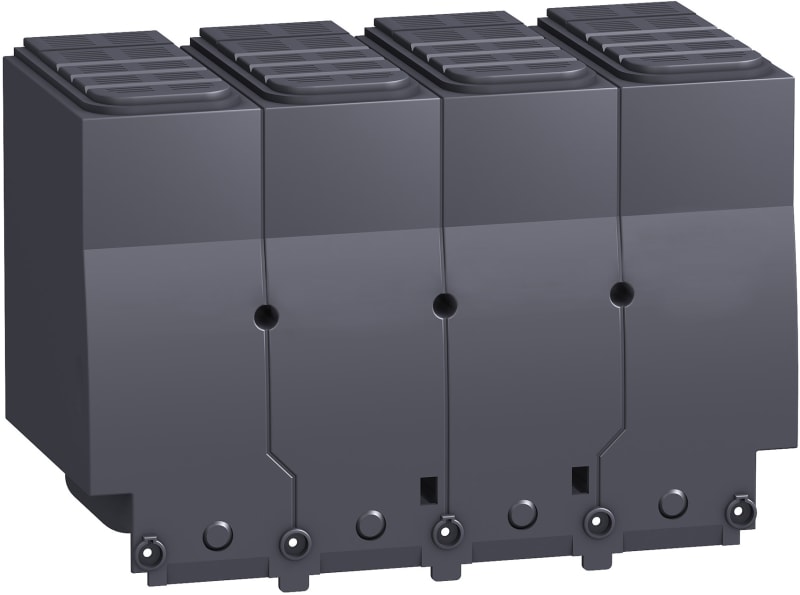

Schneider Electric LV432596 — Long terminal shield for spreaders, NSX400/630, pitch 52.5 mm, IP40, 4 poles

Schneider Electric LV432596 is a Long terminal shield for spreaders for the ComPacT NSX400/630 (and EasyPact CVS 400/630) moulded-case circuit-breaker range, for 4-pole devices at 52.5 mm connection pitch. It shields the power terminals against direct contact and establishes the clearance distance required by IEC 60947-2, and may be fitted upstream and downstream of fixed, plug-in or withdrawable devices. Degree of protection IP40, mechanical impact protection IK07. The spreaders variant covers terminals fitted with terminal spreaders. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

Long terminal shield for spreaders (insulation accessory)

Compatible devices

ComPacT NSX400/630 (and EasyPact CVS 400/630)

Poles

4

Connection pitch

52.5 mm

Degree of protection

IP40

Mechanical impact protection

IK07

Function

protects against direct contact with the power circuit; provides the clearance distance required by IEC 60947-2; may be fitted upstream and downstream of fixed, plug-in or withdrawable devices

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV432596

EAN / GTIN

3606480019982

HS code

8538.90

Product or component type

Long terminal shield

Range compatibility

ComPacT ComPacT NSX400; ComPacT ComPacT NSX630; ComPact ComPact NSX400; ComPact ComPact NSX630; EasyPact EasyPact CVS400; EasyPact EasyPact CVS630; ComPact Compact INV; ComPact ComPacT INS

Accessory / separate part type

Insulation accessories

Poles description

4P

Quantity per set

1

IP degree of protection

IP40 conforming to IEC 60529

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90
