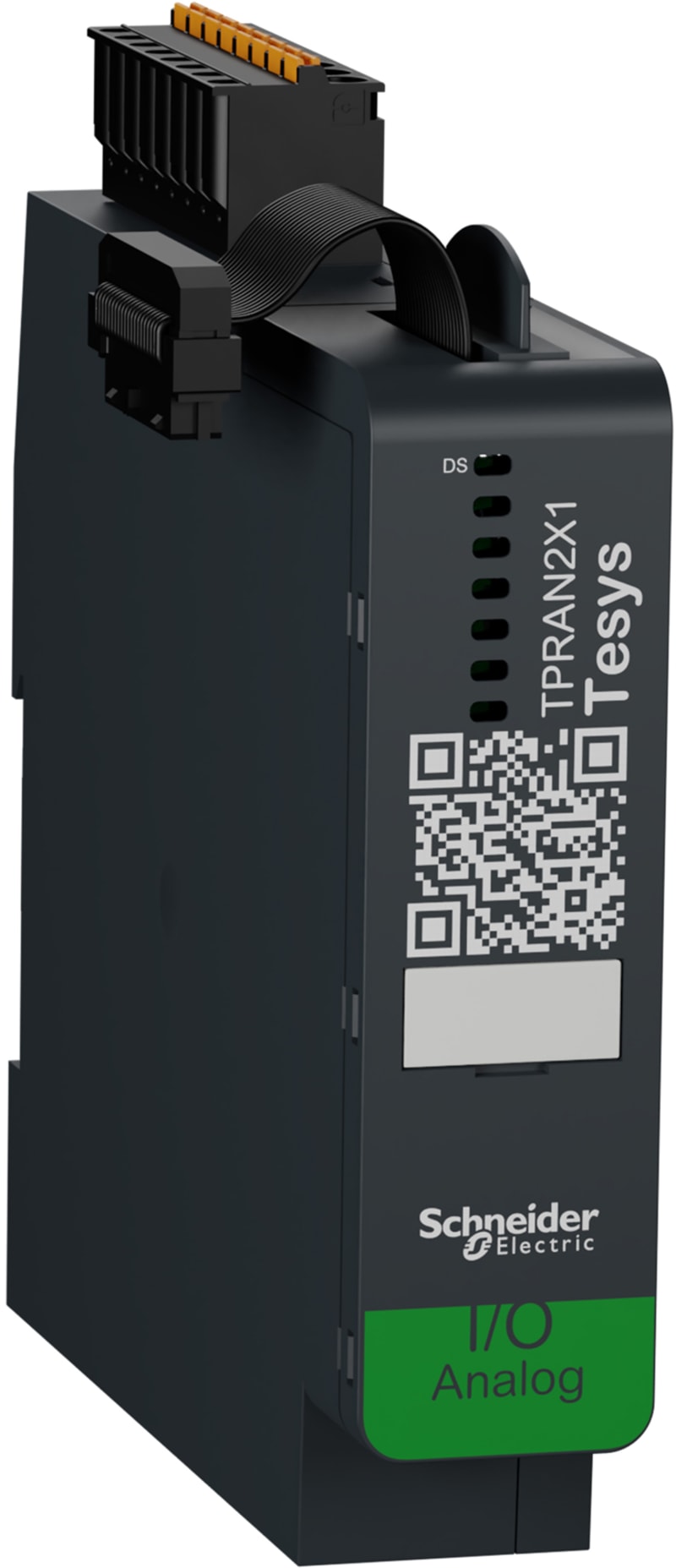

Schneider Electric TPRAN2X1 Analog IO module, TeSys island, 2 inputs, 1 output

Schneider Electric TPRAN2X1 Analog IO module, TeSys island, 2 inputs, 1 output is listed under Electrical Components. Sales unit: pcs; Package quantity: 16 pcs; Range: TeSys; Product name: TeSys island; Device short name: TPRAN; Product or component type: Analog IO module.

Manufacturer part number (MPN)

TPRAN2X1

EAN / GTIN

3606489832902

Sales unit

pcs

Package quantity

16 pcs

Range

TeSys

Product name

TeSys island

Device short name

TPRAN

Product or component type

Analog IO module

Device presentation

IO module providing 2 analog inputs and 1 analog output; Enabling advanced control functions in a TeSys island system; Operational only when connected to a bus coupler TPRBC

Function of module

Measurement of voltage, current or temperature on 2 configurable analog inputs; Driving voltage or current source on 1 configurable analog output

Product compatibility

TPRBC bus coupler

Analogue input number

2 isolated with common point

Analogue input type

Current 4...20 mA; Current 0...20 mA; Voltage 0...10 V; Voltage - 10...10 V; Temperature probe - 60...180 °C temperature probe: Ni 100; Temperature probe - 60...180 °C temperature probe: Ni 1000; Temperature probe -200...+850 °C temperature probe: Pt 100; Temperature probe - 200...600 °C temperature probe: Pt 1000; Thermocouple - 200...1000 °C thermocouple J; Thermocouple - 200...1300 °C thermocouple K; Thermocouple 0...1760 °C thermocouple R; Thermocouple 0...1760 °C thermocouple S; Thermocouple 0...1820 °C thermocouple B; Thermocouple - 200...400 °C thermocouple T; Thermocouple - 200...1300 °C thermocouple N; Thermocouple - 200...800 °C thermocouple E; Thermocouple 0...2315 °C thermocouple C

Measurement accuracy

+/- 0.1 % of full scale voltage 25 °C; +/- 0.1 % of full scale current 25 °C; +/- 0.1 % of full scale temperature probe 25 °C; +/- 0.1 % of full scale in positive temperature range thermocouple 25 °C; +/- 0.4 % of full scale in negative temperature range thermocouple 25 °C

Analogue input resolution

15 bits + sign full scale

Input impedance

= 1 MOhm voltage; >= 1 MOhm thermocouple; >= 1 MOhm temperature probe

Analogue output number

1 isolated

Analogue output type

Current 4...20 mA; Current 0...20 mA; Voltage 0...10 V; Voltage - 10...10 V

Analogue output resolution

12 bits, 4...20 mA full scale; 12 bits, 0...20 mA full scale; 12 bits, 0...10 V full scale; 11 bits + sign, - 10...10 V full scale

Type of cable

Twisted shielded pairs cable <30 m for input/output circuit

Local signalling

1 LED (green/red) for DS (device status)

[Us] rated supply voltage

24 V DC supplied by the bus coupler

Current consumption

160 mA

Power dissipation in W

0.5 W maximum

[Uimp] rated impulse withstand voltage

0.5 kV conforming to IEC 61010-1

Standards

IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201

Product certifications

CSA; UL; EAC (pending)

Mounting mode

Horizontal and vertical (35 mm symmetrical rail)

Connections - terminals

Input/output circuit: removable spring terminal block 8 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) rigid; Input/output circuit: removable spring terminal block 8 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Input/output circuit: removable spring terminal block 8 cable(s) 0.25…2.5 mm² (22 AWG...14 AWG) flexible with cable end

Width

25 mm

Height

118 mm

Depth

114 mm

Product weight

0.172 kg

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

-10…60 °C

Relative humidity

5…95 %

Operating altitude

0...2000 m without derating

IP degree of protection

IP20

Pollution degree

2

Protective treatment

TC

Fire resistance

960 °C conforming to UL 94

Shock resistance

15 gn (duration = 11 ms) conforming to IEC 60068-2-27

Vibration resistance

1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

13.500 cm

Package 1 Length

15.500 cm

Package 1 Weight

245.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.654 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Input, current

Yes

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

Yes

Input, thermocouple

Yes

Input signal, configurable

Yes

Resolution of the analogue inputs

16 Bit

Output, current

Yes

Output, voltage

Yes

Output signal configurable

Yes

Resolution of the analogue outputs

12 Bit

Number of analogue inputs

2

Number of analogue outputs

1

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Number of HW-interfaces other

2

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

HS Code

8536.50

• EAN 3606489832902
• SAP 1200395718
• Code 82424136
