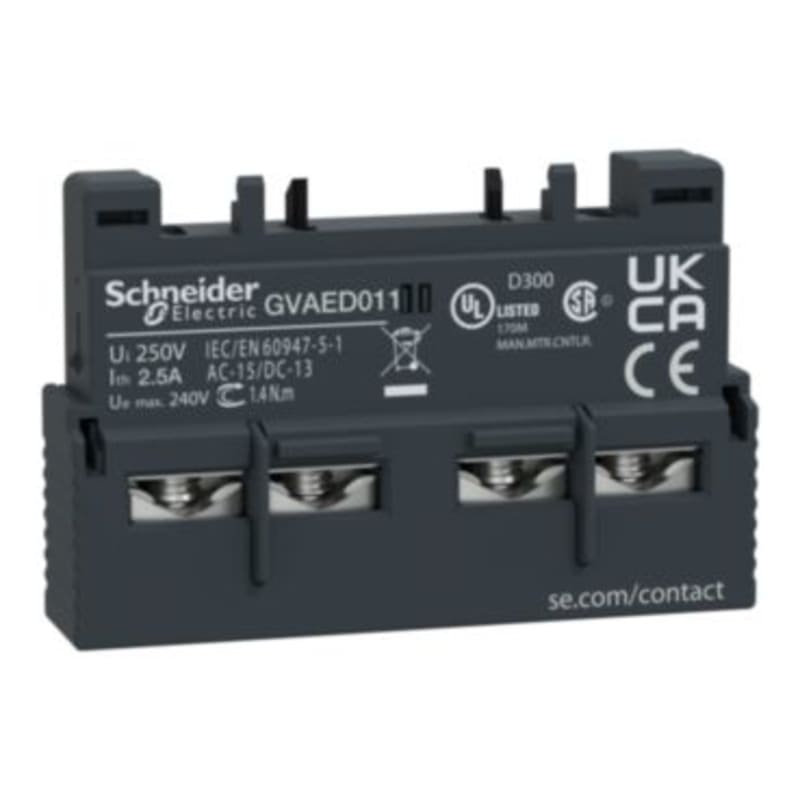

Schneider Electric GVAED011 TeSys GV3 - auxiliary contact block - 1 NO + 1 NC

Schneider Electric GVAED011 TeSys GV3 - auxiliary contact block - 1 NO + 1 NC is listed under Electrical Components / Circuit Breaker Accessories. HS code: 8538.90.

Manufacturer part number (MPN)

GVAED011 EAN / GTIN: 3389119405485 Sales unit: pcs Package quantity: 10 pcs Range: TeSys; TeSys Deca Device short name: GVAED Product or component type: Auxiliary contact block Product compatibility: GV3P; GV3L Mounting location: Front side Auxiliary contacts operation: Fault signal 1 NO Pole contact composition: 1 NO + 1 NC Quantity per set: Set of 1 [Ui] rated insulation voltage: 600 V conforming to UL 508; 690 V conforming to IEC 60947-1; 600 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GB2CB... circuit breaker; GG fuse 10 A Rated operational power in VA: 300 VA at 48 V AC-15 - electrical durability: 100000 cycles; 400 VA at 690 V AC-15 - electrical durability: 100000 cycles; 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles; 500 VA at 500 V AC-15 - electrical durability: 100000 cycles; 650 VA at 440 V AC-15 - electrical durability: 100000 cycles; 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles; 140 W at 110 V DC-13 - electrical durability: 100000 cycles; 140 W at 24 V DC-13 - electrical durability: 100000 cycles; 180 W at 60 V DC-13 - electrical durability: 100000 cycles; 240 W at 48 V DC-13 - electrical durability: 100000 cycles Tightening torque: 1.7 N.m screw clamp terminals Height: 11 mm Width: 45 mm Depth: 29 mm Product weight: 0.05 kg Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus; EAC Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1 cm Package 1 Width: 3 cm Package 1 Length: 4.5 cm Package 1 Weight: 17 g Unit Type of Package 2: BB1 Number of Units in Package 2: 10 Package 2 Height: 3 cm Package 2 Width: 20.2 cm Package 2 Length: 26 cm Package 2 Weight: 174 g Unit Type of Package 3: S03 Number of Units in Package 3: 260 Package 3 Height: 30 cm Package 3 Width: 30 cm Package 3 Length: 40 cm Package 3 Weight: 5.134 kg Country of origin: CZ Warranty (in months): 18

HS Code

8538.90

• EAN 3389119405485
• SAP 1000006521
• Code 8473711
