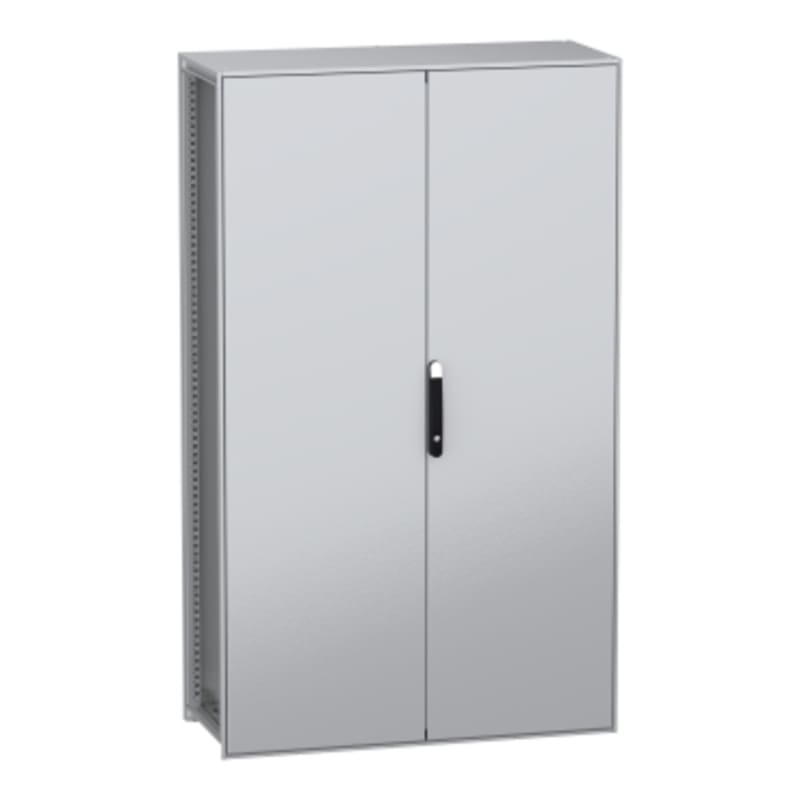

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1200X500MM, 2 doors, IP55 NSYSFN2012502D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN2012502D — Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000x1200x500mm, 2 doors, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN2012502D
- EAN / GTIN
- 3606486103579
- Sales unit
- pcs
- Dimensions
- 2000×1200×500
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 500 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure: right door; 1 rear panel; 1 roof; 2 door; 1 locking system with handle; 1 locking bar system 4 points: right door; 1 locking bar system 2 points: left door
- Structure type
- Perforated structure with a pitch of 25 mm; Vertical uprights joined with top and bottom frames; Formed from a single section; Panels and doors built into the structure
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front right door
- Number of doors
- Front face: 2 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 114.7 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 213.000 cm
- Package 1 Width
- 125.000 cm
- Package 1 Length
- 59.000 cm
- Package 1 Weight
- 130.500 kg
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 2000 mm
- Depth
- 500 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486103579
- SAP 1200698198
- Code 83799701
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TPRAN2X1 Analog IO module, TeSys island, 2 inputs, 1 output
Schneider Electric

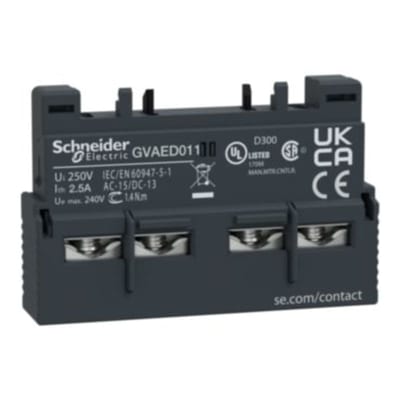

Schneider Electric GVAED011 TeSys GV3 - auxiliary contact block - 1 NO + 1 NC
Schneider Electric

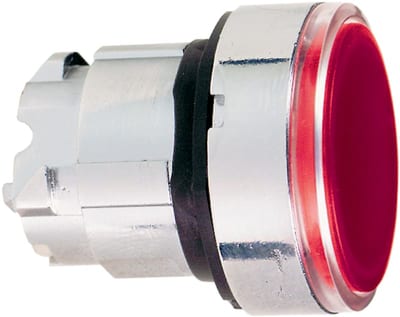

Schneider Electric ZB4BW34 Harmony XB4 Push-Button Head — Ø22 mm, Red, flush, spring return, illuminated (BA9S), metal bezel
Schneider Electric

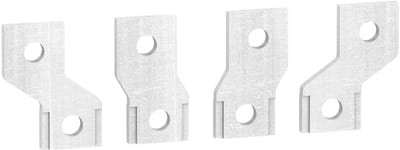

Schneider Electric spreaders 35 mm to 45 mm pitch, ComPact NSX 100/160/250, 4 poles, set of 4 parts LV431564
Schneider Electric

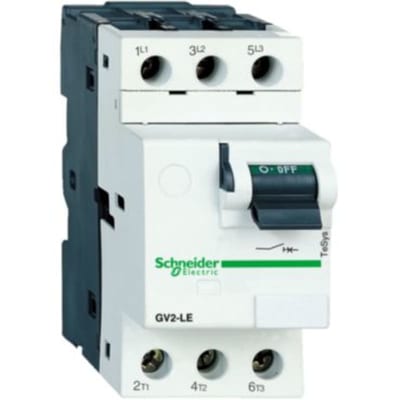

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 10 A, magnetic, toggle control, screw clamp terminals GV2LE14
Schneider Electric

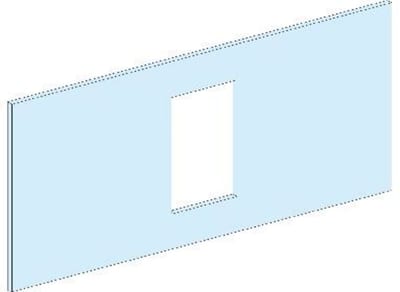

Front plate INS250 HORIZONTAL-4M-PRISMASETG
LVS03231
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 63A, A type, 300MA, selective, double terminal A9Z25463
Schneider Electric

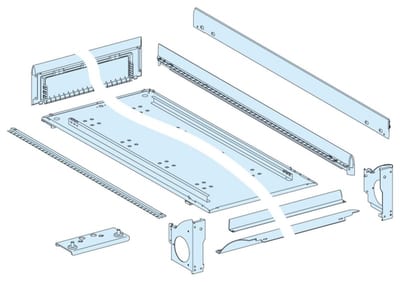

Schneider Electric Floor standing duct, PrismaSeT G, W 300mm, H 1880mm (33M), IP30, without side plates LVS08274
