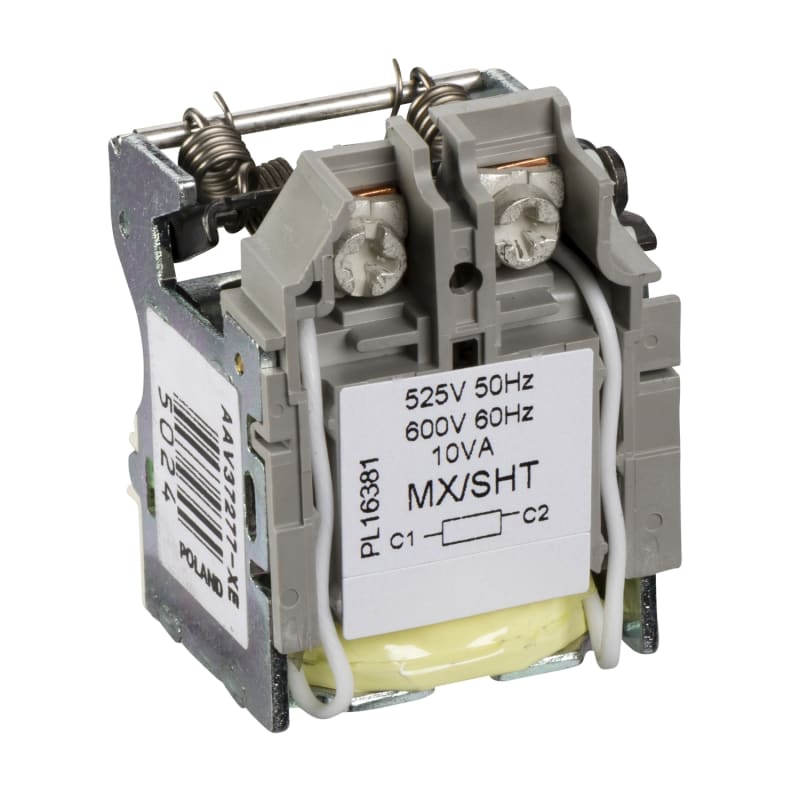

Schneider Electric MX shunt release, ComPacT NSX, rated voltage 525 VAC 50 Hz, 600 VAC 60 Hz, screwless spring terminal connections LV429389
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429389 MX 525V 50Hz 600V 60Hz =NSX630.
Technical Specifications
- Manufacturer part number (MPN)
- LV429389
- EAN / GTIN
- 3606480019111
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 525 V
- Frequency
- 50 Hz
- Range
- ComPacT
- Range of product
- ComPact NSX100...250; ComPacT NSX100...250; ComPact NSX400...630; ComPacT NSX400...630; ComPact NSX100...250 DC; ComPacT NSX100...250 DC; ComPact NSX100...250 DC PV; ComPacT NSX100...250 DC PV; ComPact NSX400...630 DC; ComPacT NSX400...630 DC; ComPact NSX400...630 DC PV; ComPacT NSX400...630 DC PV
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Shunt trip release
- [Uc] control circuit voltage
- 525 V AC 50 Hz; 600 V AC 60 Hz
- Range compatibility
- ComPacT ComPacT NSX; ComPacT ComPacT NSX DC; ComPact ComPact NSX; ComPact ComPact NSX DC; EasyPact EasyPact CVS; PowerPact PowerPact Multistandard
- Operating threshold
- 0.7...1.1 x Un opening
- Response time
- 50 ms
- Control signal type
- Maintained; Impulse
- Impulse duration
- >= 20 ms
- Supply inrush power
- 10 VA
- Auxiliary connection terminal
- Spring 0.5…1.5 mm² (20 AWG...16 AWG)
- Wire stripping length
- 7 mm
- Country of origin
- PL
- Warranty (in months)
- 18
- Power consumption
- 5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage AC 50 Hz
- 525 V
- Rated control supply voltage AC 60 Hz
- 600 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC
