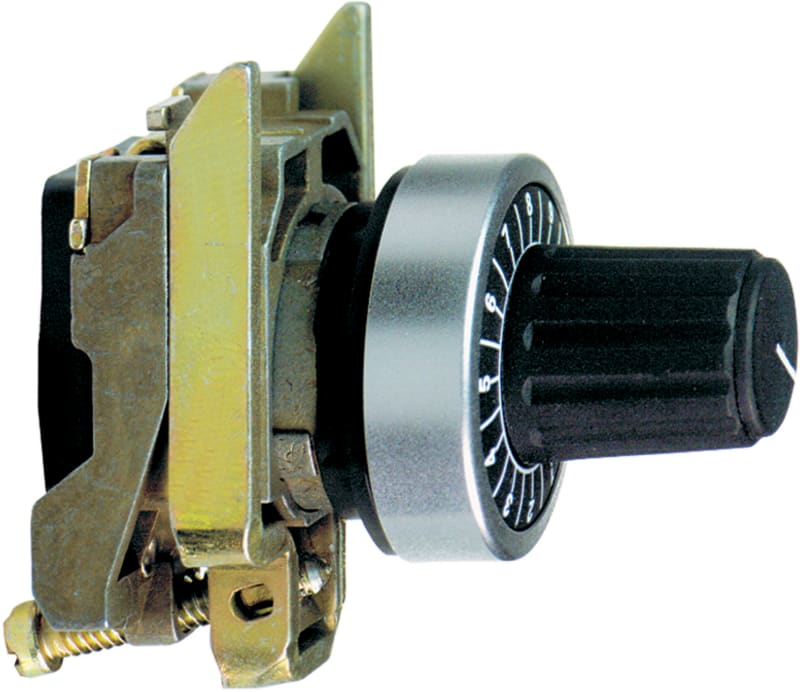

Potensiometerknapp 0-10(300gr) (ZB4BD922)

Schneider Electric ZB4BD922 Potensiometerknapp 0-10(300Gr).

Manufacturer part number (MPN)

ZB4BD922

EAN / GTIN

3389110896886

Sales unit

pcs

Package quantity

80 pcs

Range of product

Harmony XB4

Product or component type

Head + mounting base for potentiometer

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Product compatibility

For use with Ø 6.35 mm shaft

Sale per indivisible quantity

1

Head type

Standard

Product weight

0.08 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Shape of signaling unit head

Round

Operator profile

knurled knob, with (white)

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-4; UL 508; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-5-5; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

80

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Turn button

Colour control element

Black

Switching function latching

Yes

HS Code

8533.90

• EAN 3389110896886
• SAP 1000006473
• Code 856821
