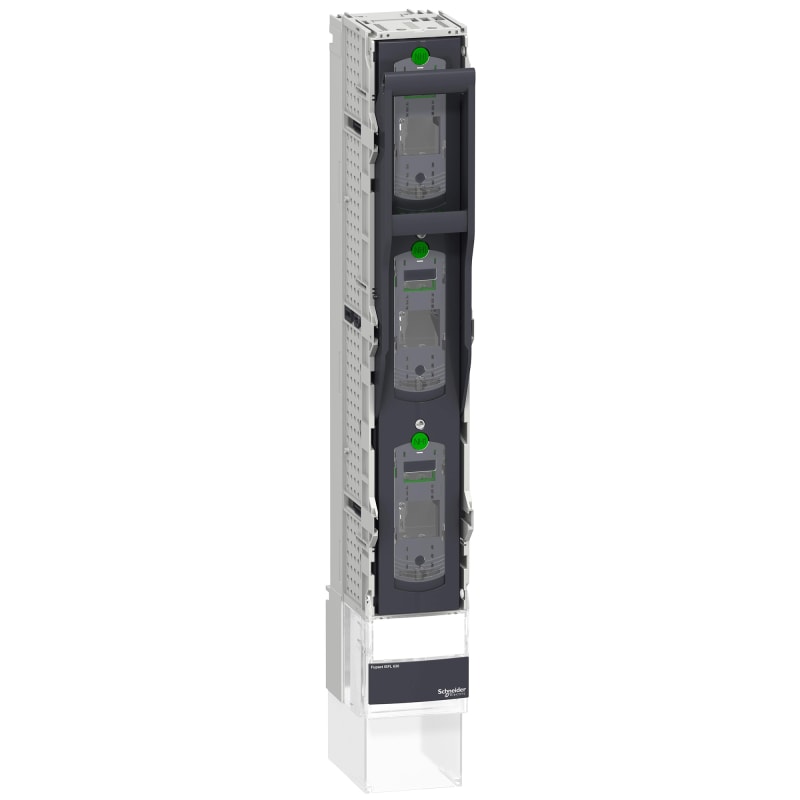

Schneider Electric ISFL630 direct 185mm busbar screws M12 - fuse switch-disconnector LV480858

Schneider Electric LV480858 ISFL 630 3P, skinneavst. 185mm.

Manufacturer part number (MPN)

LV480858

EAN / GTIN

3606480341168

Sales unit

pcs

Number of poles

3P

Range

FuPacT

Product name

FuPacT ISFL

Device short name

ISFL630

Product or component type

Fuse-switch disconnector

Device application

Equipment protection, monitoring and control; Distribution

Signalling function

Separated fuse monitor

Poles description

1 x 3P switchable

Number of fuse carriers

3

Fuse type

DIN

Fuse size

NH3

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Visible break

Yes

Contact position indicator

Yes

[Ith] conventional free air thermal current

630 A ( 40 °C ) power dissipation per fuse: 48 W

[Ithe] conventional enclosed thermal current

630 A at 40 °C, Power dissipation per fuse: 48 W

Maximum power dissipation per pole

85 W

[Ue] rated operational voltage

690 V AC 50/60 Hz; 800 V AC 50/60 Hz AC-20; 800 V DC DC-20

[Ui] rated insulation voltage

1000 V AC 50/60 Hz; 1000 V DC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

AC-21B: 630 A at 220/240 V AC 50/60 Hz; AC-21B: 630 A at 380/415 V AC 50/60 Hz; AC-21B: 630 A at 440/480 V AC 50/60 Hz; AC-21B: 630 A at 500 V AC 50/60 Hz; AC-21B: 630 A at 660/690 V AC 50/60 Hz; AC-22B: 630 A at 220/240 V AC 50/60 Hz; AC-22B: 630 A at 380/415 V AC 50/60 Hz; AC-22B: 630 A at 440/480 V AC 50/60 Hz; AC-22B: 630 A at 500 V AC 50/60 Hz; AC-23B: 630 A at 220/240 V AC 50/60 Hz; AC-23B: 630 A at 380/415 V AC 50/60 Hz

[Iq] Breaking capacity with fuses (kA RMS)

120 kA at 415 V (AC); 120 kA at 500 V (AC); 120 kA at 690 V (AC)

[Icw] rated short-time withstand current

25 kA for 1 s

[Icm] Rated short-circuit making capacity

52.5 kA at 690 V

Rated duty

Uninterrupted

Control type

Fuse carriers handle

Provision for padlocking

3 padlocks

Mounting position

Vertical

mounting mode

Fixed

Mounting support

Busbars

Mounting location

One above the other

Contact operation

Single-break

Mechanical durability

800 cycles

Electrical durability

AC-21B: 200 cycles 690 V AC 50/60 Hz; AC-22B: 200 cycles 500 V AC 50/60 Hz; AC-23B: 200 cycles 415 V AC 50/60 Hz

Connections - terminals

Screw connection downstream M12 630 A; Direct connection upstream 630 A 185 mm

Tightening torque

40 N.m

Width

100 mm

Height

741 mm

Depth

190 mm

Product weight

5.6 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-3

Product certifications

CE; CCC; EAC

Electrical shock protection class

Class II front face

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK07 conforming to EN 50102

Pollution degree

3 conforming to IEC 60947

Ambient air temperature for operation

-20…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

DE

Warranty (in months)

18

Rated permanent current Iu

630 A

Conditioned rated short-circuit current Iq

120 kA

Degree of protection (IP), front side

IP20

Suitable for fuses

NH3

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Version as emergency stop installation

No

Version as main switch

Yes

Version as safety switch

Yes

Rated short-time withstand current lcw

25 kA

Suitable for floor mounting

No

Suitable for front mounting

Yes

Suitable for busbar mounting

Yes

Max. rated operation voltage Ue AC

690 V

With error protection

Yes

Motor drive optional

No

Position control element

Front side

Equipped with connectors

Yes

HS Code

8536.50
