Schneider Electric braking resistor - 16 ohms - 14 kW - IP23 VW3A7753
Pricing
Request a quote
We reply within 24 hours
Product Description

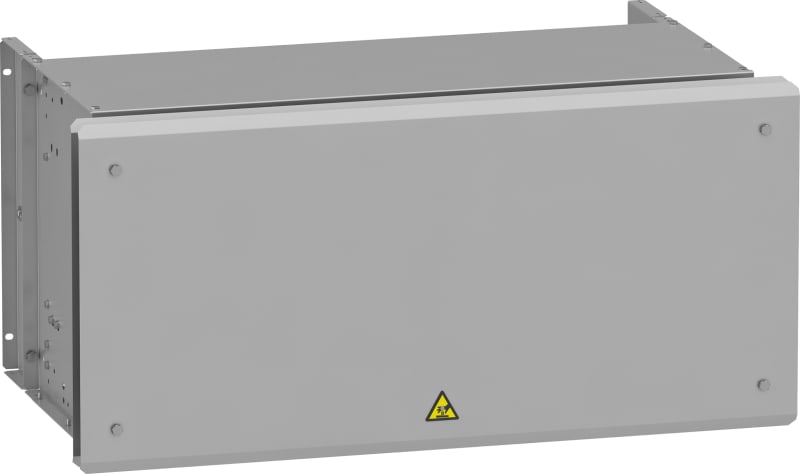

Schneider Electric VW3A7753 Braking resistor 16 ohms 14kW IP23.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7753
- EAN / GTIN
- 3606480802454
- Sales unit
- pcs
- Power
- 14 kW
- Resistance
- 16 Ω
- Range compatibility
- Altivar Machine ATV340; Altivar Process ATV900
- Product or component type
- Braking resistor
- Ohmic value
- 16 Ohm
- [Ue] rated operational voltage
- 24 V DC; 250 V AC
- Product compatibility
- Variable speed drive ATV930 wall mount 18.5 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 22 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 30 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 7.5 kW 200...240 V severe cycle; Variable speed drive ATV950 wall mount 18.5 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 22 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 30 kW 380...480 V severe cycle; Variable speed drive ATV340 15 kW 380...480 V severe cycle; Variable speed drive ATV340 18 kW 380...480 V severe cycle; Variable speed drive ATV340 22 kW 380...480 V severe cycle; Variable speed drive ATV930 22 kW 500...690 V severe cycle; Variable speed drive ATV930 30 kW 500...690 V severe cycle; Variable speed drive ATV930 37 kW 500...690 V severe cycle; Variable speed drive ATV930 30 hp 600 V severe cycle; Variable speed drive ATV930 40 hp 600 V severe cycle; Variable speed drive ATV930 50 hp 600 V severe cycle
- Duty cycle
- Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Average power available
- 14 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M6 bar wire for drive
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 540 mm
- Height
- 605 mm
- Depth
- 1060 mm
- Product weight
- 48.5 kg
- IP degree of protection
- IP23
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802454
- SAP 1200020051
- Code 81392222
