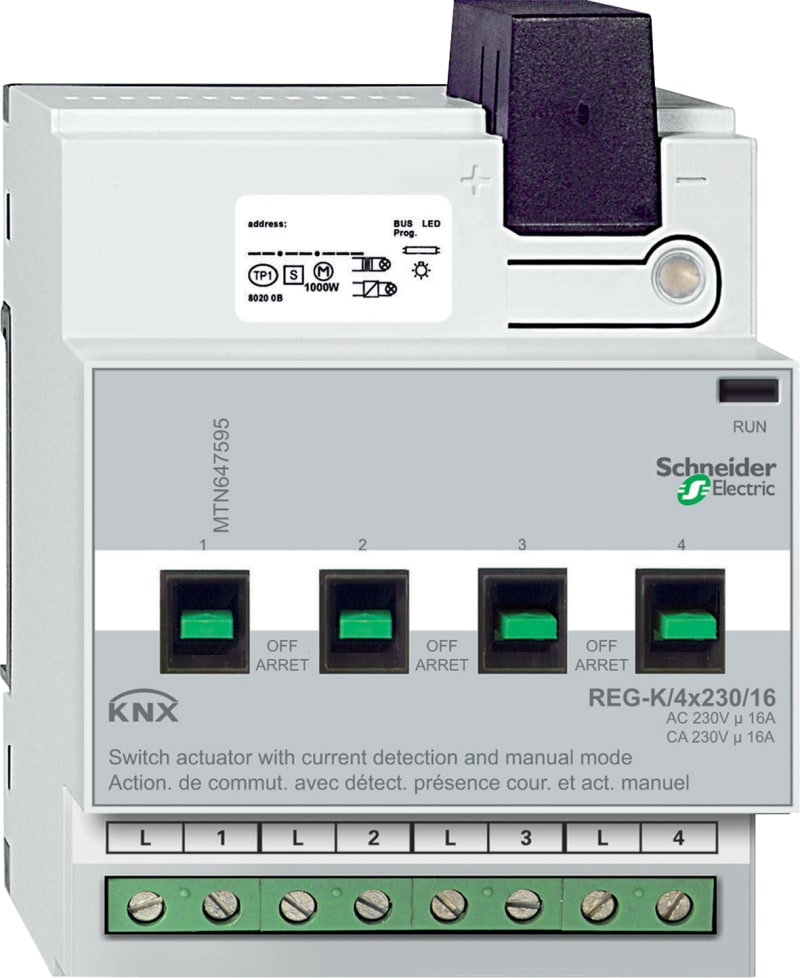

Schneider Electric MTN647595 KNX Switch Actuator REG-K/4x230/16, Light Grey

Schneider Electric MTN647595 is a KNX binary switch actuator with four channels, rated 230 V and 16 A per output with integrated current detection and manual operation. It is 4 modular spacings wide and mounts on DIN rail. The unit is finished in light grey and holds IP20. Country of origin is LV.

Manufacturer part number (MPN)

MTN647595

EAN / GTIN

3606485100067

Sales unit

pcs

Package quantity

10 pcs

Range of product

KNX

Product or component type

Switch actuator

Operating mode

Manual

Bus type

KNX

Modular device additional info

Connectable with different phases

Number of contacts

4

Switching current

16 A

Colour tint

Light grey

Power supply input current

16 mA

Function available

Current detection

Total number of 18 mm modules

4

Mounting support

DIN rail

Device mounting

DIN rail

[Ue] rated operational voltage

230 V

Network frequency

50...60 Hz

[In] rated current

0.1…16 A

Load type

Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Capacitive: , 16 A, 200 µF, 100...240 V AC; Motor: <= 1000 W, 230 V AC

Device presentation

Complete product

Main colour tint

Light grey

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

LV

Warranty (in months)

18

Width in number of modular spacings

4

Max. switching power

3600 W

Output power

3600 W

Max. number of switching contacts

4

Max. switching current

16 A

Rated current

16 A

Degree of protection (IP)

IP20

HS Code

8537.10

• EAN 3606485100067
• SAP 1000325179
• Code 8725099
