Current transformer. 800/5 kab.ø32+rail

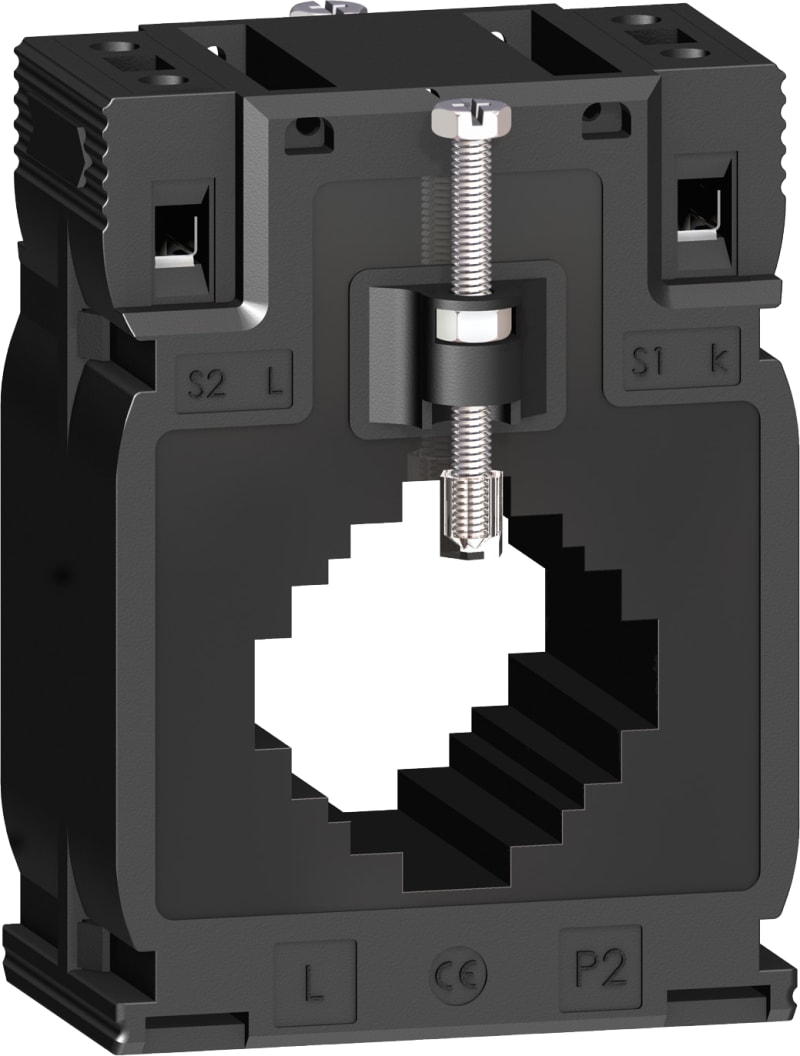

Schneider Electric METSECT5MC080 current transformer for DIN-rail mounting, 800/5 A, for busbars 10 × 40, 20 × 32 and 25 × 25 mm.

Manufacturer part number (MPN)

METSECT5MC080

EAN / GTIN

3606480618888

Sales unit

pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 10 VA; Class 1 at 12 VA

[In] rated current

800 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

800/5

[Ith] conventional free air thermal current

48 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

By screws; Insulated locking screw; Clip-on

Mounting support

Busbar; Mounting plate; DIN rail

Width

Outside: 70 mm; Inner: 41 mm

Height

Outside: 95 mm; Inner: 41 mm

Depth

Frame : 45 mm; Total : 65 mm

Diameter

32 mm

Product weight

0.499 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

32 mm

Opening of bars

40.5 x 10.5; 32.5 x 20.5; 25.5 x 25.5

Sealing

Without

Standards

VDE 0414; IEC 61869-2

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.200 cm

Package 1 Width

7.200 cm

Package 1 Length

11.200 cm

Package 1 Weight

420.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

33

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

14.700 kg

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

800 A

Rated secondary current

5 A

Rated secondary apparent power

12 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

41 mm

Width opening

41 mm

Opening diameter

32 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
