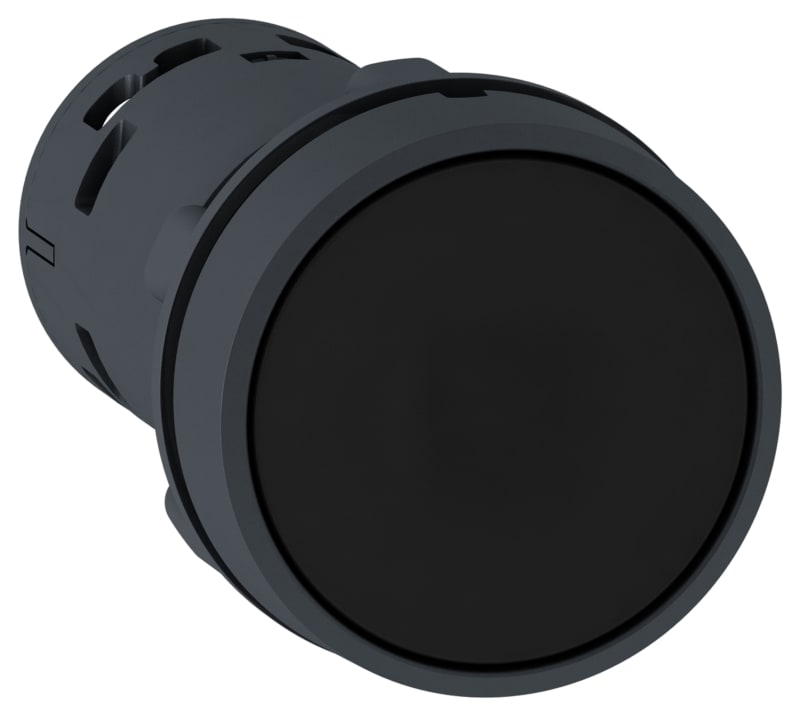

Schneider Electric Push button, Harmony XB7, round black flush, 22mm, push to release, 1NO, unmarked XB7NH21

Schneider Electric XB7NH21 Push-button NO - Black.

Manufacturer part number (MPN)

XB7NH21

EAN / GTIN

3606480470295

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XB7

Product or component type

Push-button

Device short name

XB7

Mounting diameter

22 mm

Sale per indivisible quantity

10

IP degree of protection

IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529

Shape of signaling unit head

Round

Type of operator

push and push-to-release

Operator profile

Black flush

Contacts type and composition

1 NO

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Device presentation

Monolithic product

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

51.5 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.021 kg

Device mounting

Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1

Fixing center

>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm

Fixing mode

Fixing nut beneath head: 2…2.4 N.m

Marking

Unmarked

Contact operation

Slow-break

Positive opening

With NC contact conforming to IEC 60947-5-1 appendix K

Mechanical durability

300000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

4 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1; 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1; 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class II conforming to IEC 61140

Enclosure Type

UL type 3/12

Standards

IEC 60947-1; IEC 60947-5-1; UL 508; CSA C22.2 No 14; JIS C8201-5-1; JIS C8201-1

Product certifications

GOST; CCC

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Number of Units in Package 3

1600

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black/white

Suitable for lighting

No

Spring-return

No

Type of button

Flat

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

Yes

Number of contacts as normally open contact

1

Country of origin

Indonesia

HS Code

8536.50
