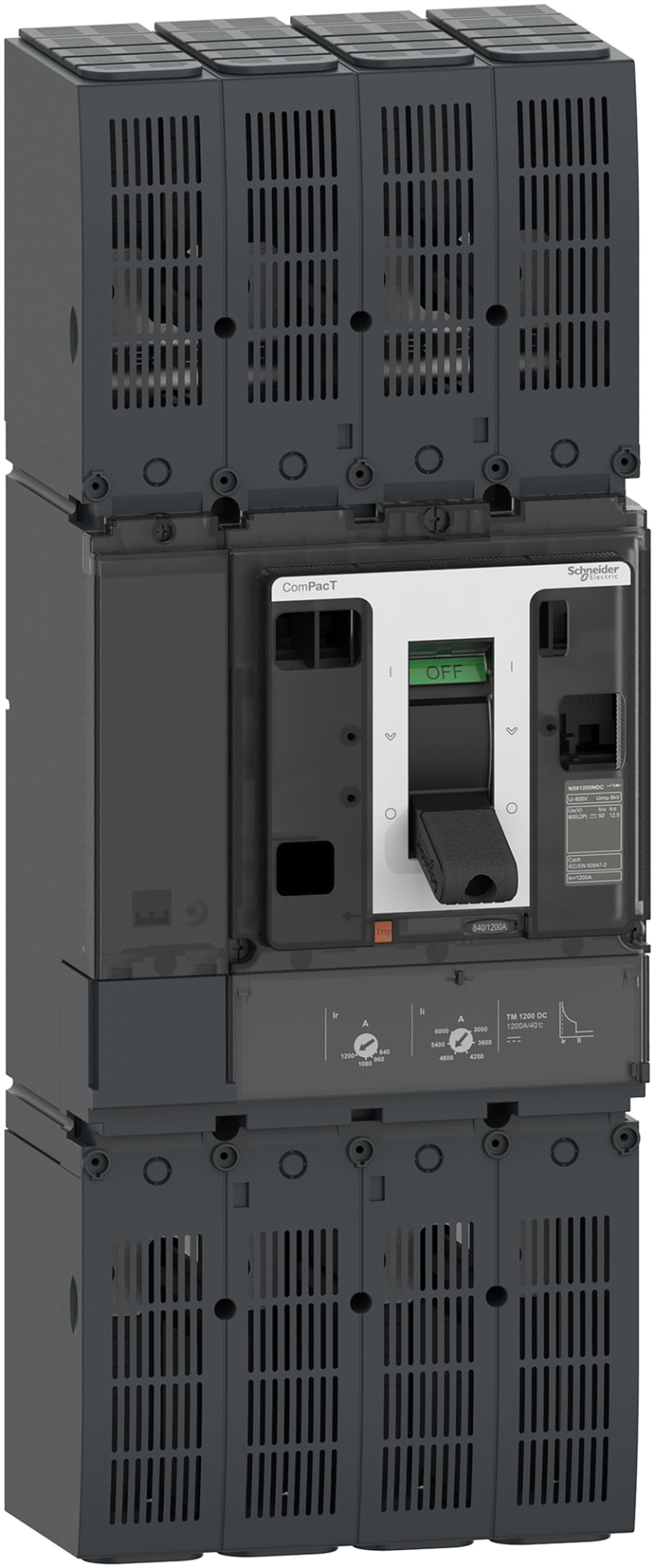

Schneider Electric Circuit breaker, ComPacT NSX1200N DC, 50KA/600VDC, 2 poles, TM-DC trip unit 1000A, without bare cable connector C1BN2TM10HD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C1BN2TM10HD Circuit breaker ComPacT NSX1200N-DC 2P with thermomagnetic protection-1000A TMD 50kA/600VDC.
Technical Specifications
- Manufacturer part number (MPN)
- C1BN2TM10HD
- EAN / GTIN
- 3606482005648
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 1000 A
- Number of poles
- 2P
- Breaking capacity
- 50 kA
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX1200 DC
- Product or component type
- Circuit breaker
- Device application
- Distribution
- Poles description
- 2P
- Protected poles description
- 2D
- [In] rated current
- 1000 A at 40 °C
- [Ue] rated operational voltage
- 600 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity code
- N 50 kA 600 V DC
- Trip unit name
- TM-DC
- Trip unit technology
- Thermal-magnetic
- Trip unit protection functions
- LI
- Control type
- Toggle
- Circuit breaker mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V DC conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 12.5 kA at 24...300 V DC conforming to IEC 60947-2; 12.5 kA at 300...600 V DC conforming to IEC 60947-2
- Mechanical durability
- 5000 cycles
- Electrical durability
- 2000 cycles at 600 V In/2; 1000 cycles at 600 V In
- Mounting support
- Backplate
- Mounting position
- Horizontal and vertical; Flat on the back
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Protection type
- L : for overload protection (thermal); I : for short-circuit protection (magnetic)
- Trip unit rating
- 1000 A at 40 °C
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable
- [Ir] long-time protection pick-up adjustment range
- 0.7...1 x In
- Long-time protection delay adjustment type tr
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Adjustable
- [Ii] instantaneous protection pick-up adjustment range
- 2.5...5 x In
- Earth-leakage protection
- Without
- Number of slots
- 6 slot(s)
- Width (W)
- 185 mm
- Height (H)
- 485 mm
- Depth (D)
- 110 mm
- Product weight
- 9.4 kg
- Standards
- EN/IEC 60947-2
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...2000 m without derating; 2000 m...5000 m with derating
- Warranty (in months)
- 18
