Schneider Electric Circuit breaker basic frame, ComPacT NSX100S DC, 100KA/750VDC, 3 poles, 100A frame rating, without trip unit C10S3D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C10S3D Circuit breaker ComPacT switch base NSX100S DC 3P 100kA/750VDC -without protection.
Technical Specifications
- Manufacturer part number (MPN)
- C10S3D
- EAN / GTIN
- 3606481994783
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3P
- Breaking capacity
- 100 kA
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX100S DC
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 3P
- [In] rated current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 750 V DC conforming to IEC 60947-2
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity code
- S 100 kA 750 V DC
- Control type
- Toggle
- mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V DC conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 100 kA at 250 V DC conforming to IEC 60947-2 (1P); 100 kA at 24...125 V DC conforming to IEC 60947-2 (1P); 100 kA at 500 V DC conforming to IEC 60947-2 (2P); 100 kA at 750 V DC conforming to IEC 60947-2 (3P)
- Maximum breaking time
- 10 ms
- Mechanical durability
- 10000 cycles conforming to IEC 60947-2
- Electrical durability
- 10000 cycles 250 V DC In/2 conforming to IEC 60947-2; 10000 cycles 500 V DC In/2 conforming to IEC 60947-2; 10000 cycles 750 V DC In/2 conforming to IEC 60947-2; 5000 cycles 250 V DC In conforming to IEC 60947-2; 5000 cycles 500 V DC In conforming to IEC 60947-2; 5000 cycles 750 V DC In conforming to IEC 60947-2
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- Without protection
- Width (W)
- 105 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Standards
- EN/IEC 60947-2
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481994783
- SAP 1200534771
- Code 82688405
Product Documentation
More from Schneider Electric
Schneider Electric
Plus MOD in 3XKEYSTONE, empty SO
EKO05899
Schneider Electric

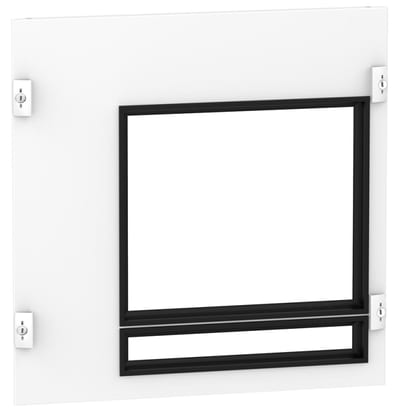

Front PLATE-MTZ2-WITHDRAWABLE-PRISMASET P
LVS03710
Schneider Electric

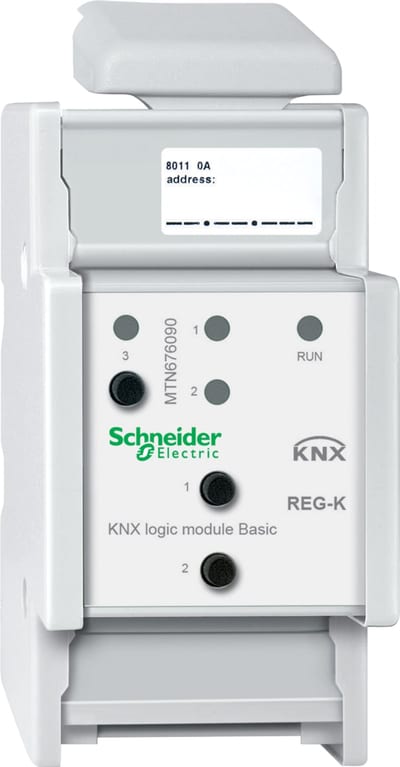

Schneider Electric MTN676090 KNX Logic module Basic REG-K, light grey
Schneider Electric

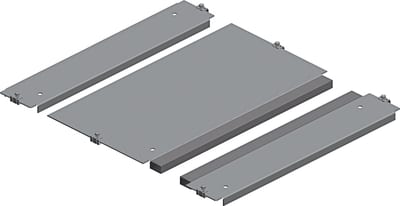

Schneider Electric NSYEC751 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W700 D500MM, fixed by clips
Schneider Electric

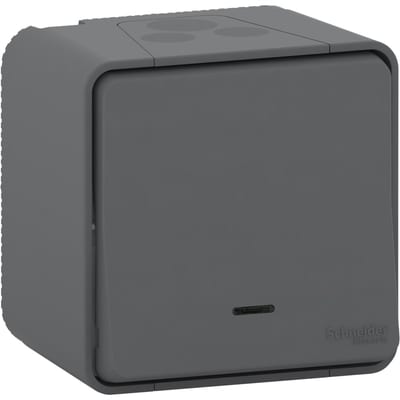

Schneider Electric Mureva Styl 1P Two-Way Switch 10AX with LED, Anthracite
MUR35024
Schneider Electric

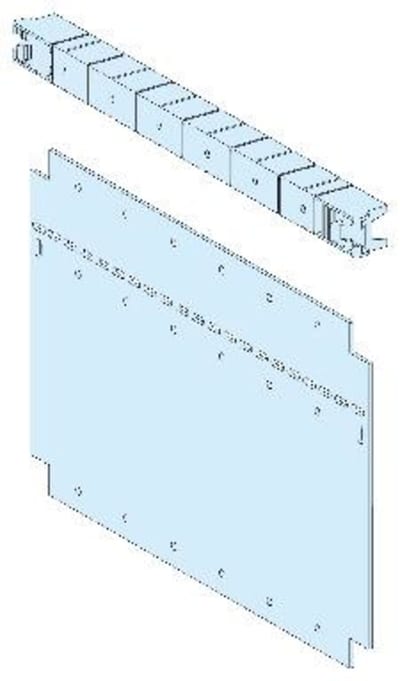

Schneider PrismaSeT P Form 4 Lateral Gland Plate 3/4 Modules
