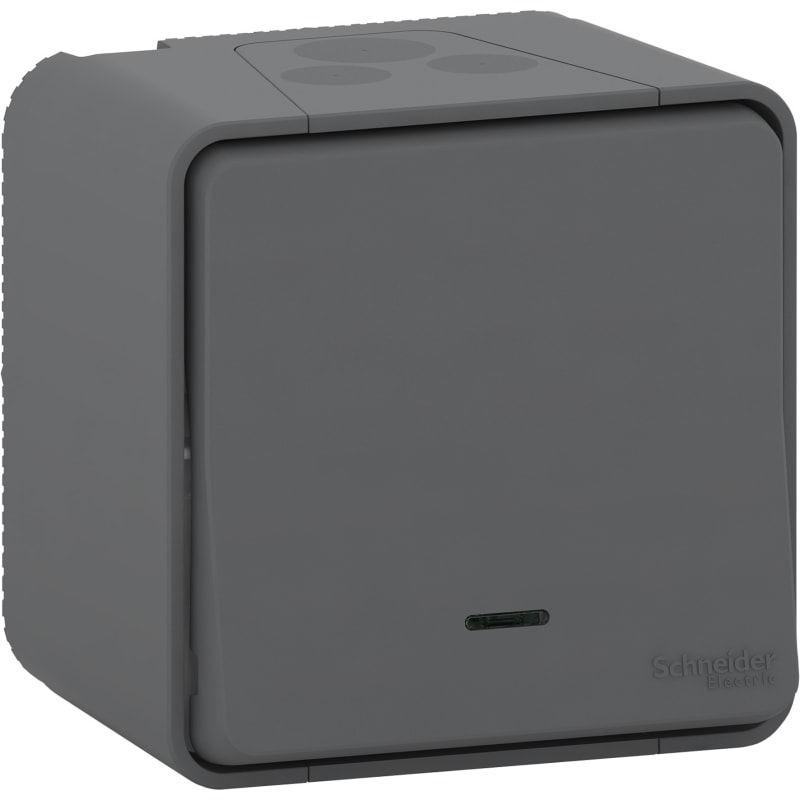

Schneider Electric Mureva Styl 1P Two-Way Switch 10AX with LED, Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
Complete surface-mounted switch from the Schneider Mureva Styl range in matt anthracite (RAL 7016), configured as a one-pole two-way switch rated 10 AX at 250 V with a blue LED indicator. Screwless terminal connections accept rigid, stranded or flexible cores from 1.5 to 2.5 mm; 6 to 20 mm cable entries suit surface conduit. IP55 and IK08 rated for indoor and outdoor use with resistance to common cleaning agents.
Technical Specifications
- Manufacturer part number (MPN)
- MUR35024
- EAN / GTIN
- 3606480789137
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Switch
- Colour tint
- Anthracite (RAL 7016)
- Device presentation
- Complete product
- Device mounting
- Surface
- surface treatment
- Untreated
- Surface finish
- Matt
- Switch function
- 1-pole 2-way
- [Ue] rated operational voltage
- 250 V
- Rated current
- 10 AX
- Technology type
- Electromechanical
- fixing mode
- By screws
- Load type
- Load for energy saving lamps with ballast: 100 W
- Local signalling
- LED (blue)
- Led current consumption
- 0.15 mA at 250 V
- Number of rocker
- 1
- Actuator
- Rocker
- Cable entry
- Easy valve access diameter: 6…20 mm
- Clamping connection capacity
- 1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for stranded cable(s); 1.5...2.5 mm² for flexible cable(s)
- Connections - terminals
- Screwless terminals
- Width
- 76 mm
- Height
- 76 mm
- Depth
- 64 mm
- Projecting depth
- 64 mm
- Material
- SEBS; ABS (acrylonitrile butadiene-styrene); Brass
- Condition of use
- Indoor/outdoor
- Wire stripping length
- 13 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Quality labels
- AENOR; EAC; CE; NF
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Standards
- EN 60669-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789137
- SAP 1200200569
- Code 82136661
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider PrismaSeT P Form 4 Lateral Gland Plate 3/4 Modules
LVS04951
Schneider Electric
TFT-IS 5X32 Mounting Screw
4020210
Schneider Electric
Schneider Electric PrismaSet P Framework, W = 400 mm, D = 600 mm LVS08604
Schneider Electric
Schneider Electric OptiLine Mini 18×35 mm end piece pure white
ISM14409P
Schneider Electric
Schneider Electric Push button, KNX, Merten System Design, 4GANG, rockers, lotus white MTN6194-6035
Schneider Electric

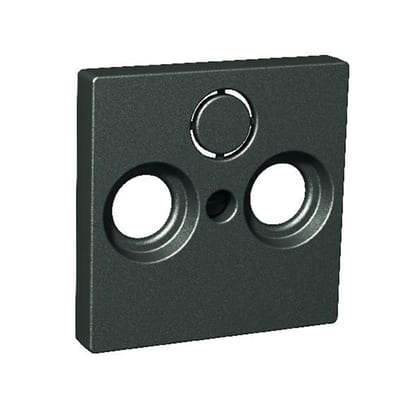

Exxact centre plate R+TV+(SAT) anthracite
WDE003445
Schneider Electric

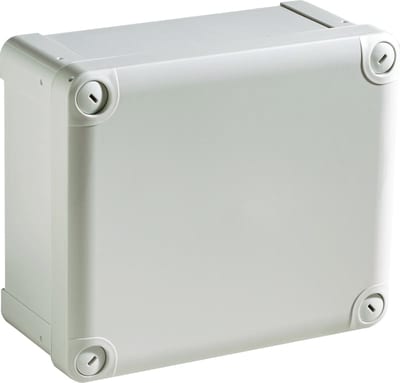

Schneider Electric PC box IP66 IK08 RAL7035 INT.H225W175D100 EXT.H241W191D128 opaque PC cover H20 NSYTBP241910
Schneider Electric

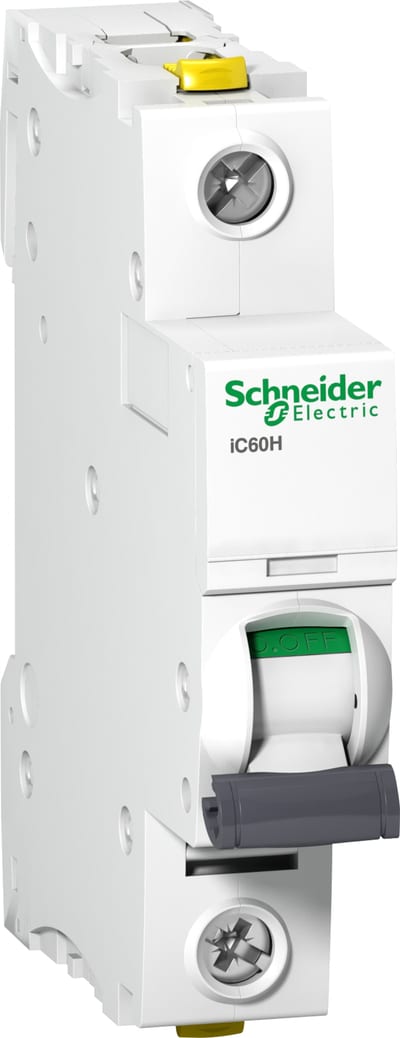

Schneider Electric A9F07125 ACTI9 IC60H Miniature Circuit Breaker 1P 25 A, Curve C
