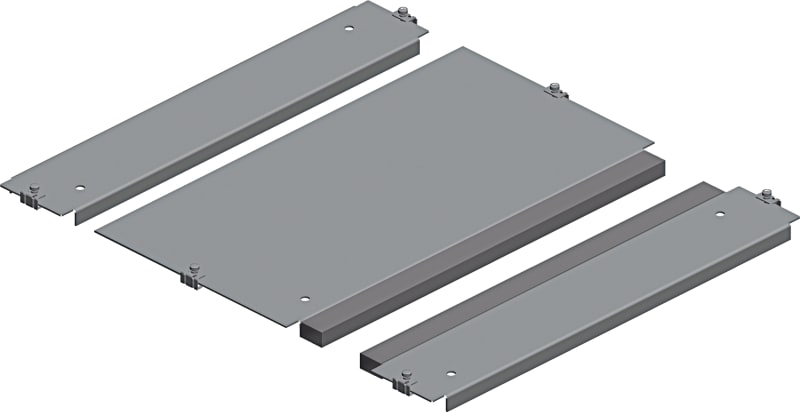

Schneider Electric NSYEC751 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W700 D500MM, fixed by clips
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYEC751 One entry cable gland plate, PanelSeT SFN, PanelSet SF, for electrical enclosure W700 D500MM, fixed by clips is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Dimensions: 700×500 mm; Range: PanelSeT; Product or component type: Cable gland plate; Application: Multi-purpose; Prisma application; Range compatibility: Prisma Prisma POLAR WHITE; PanelSeT SFP.
Technical Specifications
- Manufacturer part number (MPN)
- NSYEC751
- EAN / GTIN
- 3606480211485
- Sales unit
- pcs
- Dimensions
- 700×500 mm
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose; Prisma application
- Range compatibility
- Prisma Prisma POLAR WHITE; PanelSeT SFP
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Cable entry
- 1 entry
- Device composition
- fixing elements; 1 plate; polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Width
- Nominal: 700 mm; Useful: 516 mm
- Depth
- Nominal : 500 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 25.000 cm
- Package 1 Length
- 55.000 cm
- Package 1 Weight
- 3.156 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 90
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 299.040 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Height
- 500 mm
- Surface protection
- Galvanised
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480211485
- SAP 1200496778
- Code 82641080
