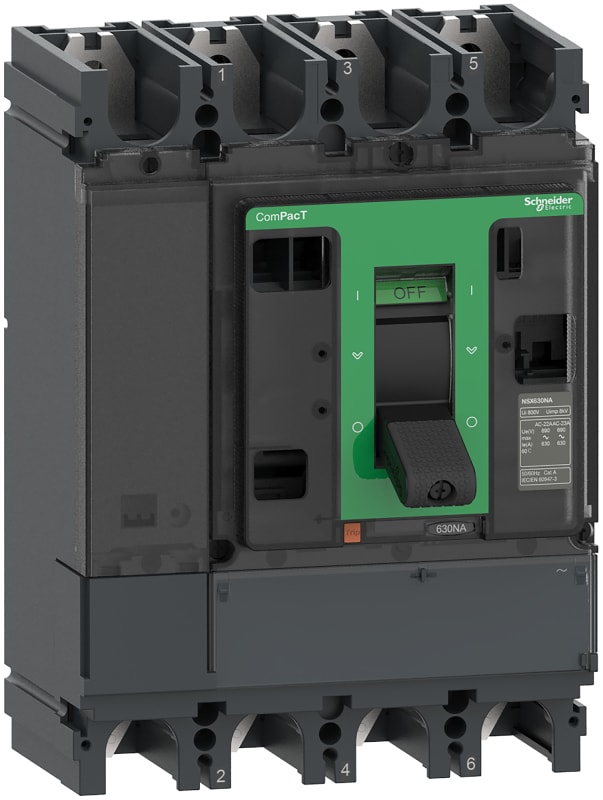

Schneider Electric Switch disconnector, ComPacT NSX630NA, 4 poles, fixed, thermal current Ith 630A C634630S
Part numberC634630SEAN / GTIN3606482002906HS code8536.90
Switchgear & Protection
Safety Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C634630S Load-break switch ComPacT NSX630NA-Micrologic 0.3 4P 630A.
Technical Specifications
- Manufacturer part number (MPN)
- C634630S
- EAN / GTIN
- 3606482002906
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX630NA
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 630 A at 50 °C
- [Ie] rated operational current
- AC-22A: 630 A AC 50/60 Hz 220...690 V; AC-23A: 630 A AC 50/60 Hz 220...690 V
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- AC-22A; AC-23A
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 6 kA during 1 s; 6 kA during 3 s; 2.32 kA during 20 s
- [Icm] rated short-circuit making capacity
- 330 kA with upstream protection circuit breaker; 8.5 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 15000 cycles
- Electrical durability
- AC-22A: 1500 cycles 690 V AC 50/60 Hz In; AC-22A: 3000 cycles 440 V AC 50/60 Hz In; AC-22A: 3000 cycles 690 V AC 50/60 Hz In/2; AC-22A: 6000 cycles 440 V AC 50/60 Hz In/2; AC-23A: 1500 cycles 690 V AC 50/60 Hz In; AC-23A: 3000 cycles 440 V AC 50/60 Hz In; AC-23A: 3000 cycles 690 V AC 50/60 Hz In/2; AC-23A: 6000 cycles 440 V AC 50/60 Hz In/2
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 6.8 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482002906
- SAP 1200534561
- Code 82688683
Product Documentation
Document preview: Schneider Electric C634630S — OEM Product Page
More from Schneider Electric
Schneider Electric

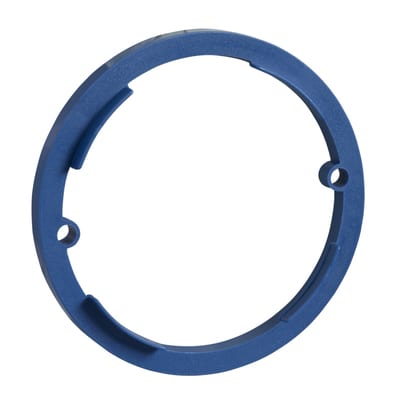

Trimsring URPV-5 F/Wall box
1224842
Schneider Electric

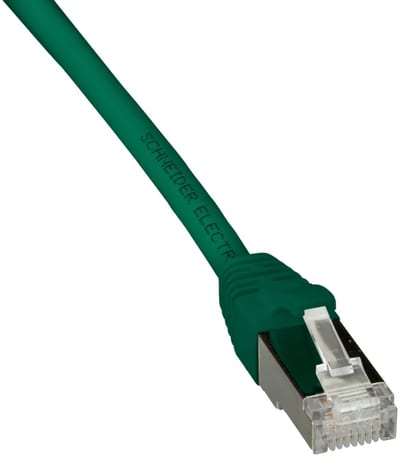

Patch CORD STP CAT. 6A 0,5M Green
