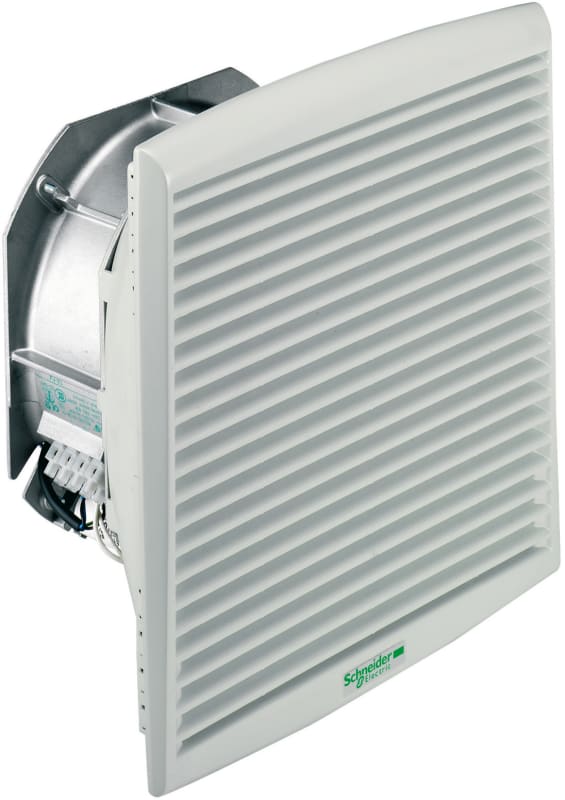

Schneider Electric ClimaSys forced vent. IP54, 560M3/h, 230V, with outlet grille and filter G2 NSYCVF560M230PF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF560M230PF Fan 560M3/H 230V IP54, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF560M230PF
- EAN / GTIN
- 3606480151323
- Sales unit
- pcs
- Voltage
- 230 V
- IP rating
- IP54
- Flow rate
- 560 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Range compatibility
- Prisma P; Prisma G
- Type of filter
- Standard
- [Us] rated supply voltage
- 207...244 V
- Input voltage
- 230 V 50/60 Hz
- Certification
- CSA
- Absorbed power
- 64 W 50 Hz; 80 W 60 Hz
- [In] rated current
- 0.29 A 50 Hz; 0.35 A 60 Hz
- Noise level < at
- 59 dB
- Bearing type
- Ball
- Height
- External: 336 mm
- Width
- External: 316 mm
- Depth
- External : 161 mm
- Cut-out dimensions
- 291 x 291 mm
- Product weight
- 3.2 kg
- Material
- Outlet grille: injected thermoplastic (ASA PC)
- Colour
- Outlet grille: grey (RAL 7035)
- Ambient air temperature for operation
- -15…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Maximum pressure
- 140 Pa flow rate 0 m³/h
- Connections - terminals
- Terminal block
- IP degree of protection
- IP54
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template
- Condition of use
- Filter must be cleaned and replaced regularly; Surrounding environment must be relatively clean; Outside temperature must be 5 °C lower than inside temperature; Overfrequent filter replacement should be avoided; Flow rates depends on the work point, see ProClima software
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 68 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 562 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 59 dB(A)
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151323
- SAP 1000089064
- Code 8881789
Product Documentation
More from Schneider Electric
Schneider Electric
DIN-rail terminal 16mm² PE 2P
NSYTRV162PE
Schneider Electric
Jumper link 20 pole for 2,5mm² - red
NSYTRAL220
Schneider Electric
08297 Vent. Plug IP68 16 L/H
NSYCAG12LPH2
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 20A, 24VDC standard coil, screw clamp terminal LC1DT20BD
Schneider Electric
Schneider Electric 50439 closed toroid A type, for Vigirex and Vigilhom, IA80, inner diameter 80 mm, rated current 160 A
Schneider Electric
Potentiometer complete 1KOHM (XB4BD912R1K)
Schneider Electric

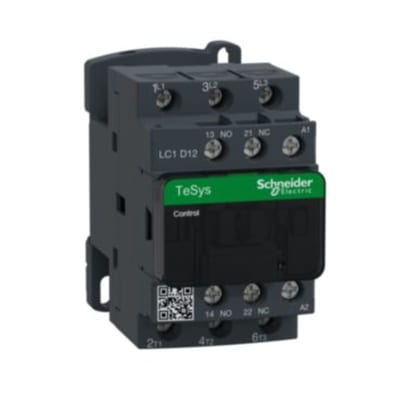

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 110V AC 50/60Hz coil, screw clamp terminals LC1D12F7
Schneider Electric

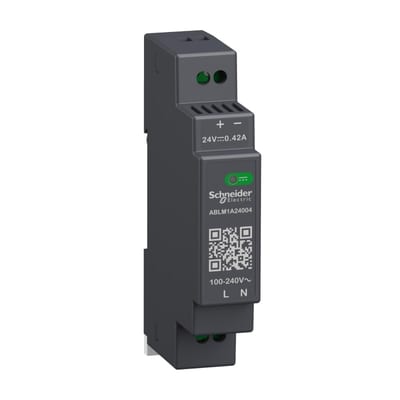

Schneider Electric Regulated Power Supply, 100-240V AC, 24V 0.4 A, single phase, Modular ABLM1A24004
