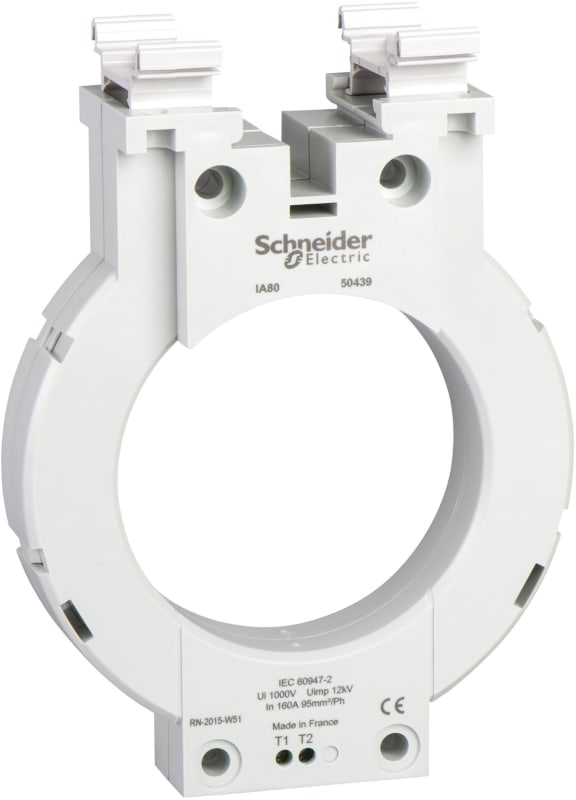

Schneider Electric 50439 closed toroid A type, for Vigirex and Vigilhom, IA80, inner diameter 80 mm, rated current 160 A

Schneider Electric 50439 closed toroid A type, for Vigirex and Vigilhom, IA80, inner diameter 80 mm, rated current 160 A is listed under Electrical Components / Current Transformers. Sales unit: pcs; Package quantity: 40 pcs; Range: VigiPacT; Device short name: IA80; Product or component type: Earth leakage current sensor; Device application: Equipment monitoring and control.

Manufacturer part number (MPN)

50439

EAN / GTIN

3303430504399

Sales unit

pcs

Package quantity

40 pcs

Range

VigiPacT

Device short name

IA80

Product or component type

Earth leakage current sensor

Device application

Equipment monitoring and control

Range compatibility

VigiPacT RH10M residual current protection relay; VigiPacT RH10P residual current protection relay; VigiPacT RH21M residual current protection relay; VigiPacT RH21P residual current protection relay; VigiPacT RH68M residual current protection relay; VigiPacT RH86M residual current protection relay; VigiPacT RH86P residual current protection relay; VigiPacT RH99M residual current protection relay; VigiPacT RH99P residual current protection relay; VigiPacT RH197M residual current protection relay; VigiPacT RH197P residual current protection relay; VigiPacT RHU residual current protection relay; VigiPacT RHUs residual current protection relay; VigiPacT RMH residual current protection relay

current sensor type

A type closed toroid

[Ie] rated operational current

160 A

Transformer ratio

1/1000

Network frequency

50/60 Hz; 400 Hz

[Icw] rated short-time withstand current

85 kA for 0.5 s

Residual short-circuit withstand current

85 kA / 0.5 s conforming to IEC 60947-2

[Ui] rated insulation voltage

1000 V

Overvoltage category

IV

[Uimp] rated impulse withstand voltage

12 kV

Mounting mode

Fixed (cables); Fixed (plain backplate); Fixed (profiled sheet metal); Fixed (slotted backplate); Clip-on (DIN rail)

Calorific value

3.19 MJ

Connections - terminals

Screw connection 0.22…2.5 mm²

Diameter

80 mm inner:

Product weight

0.42 kg

Height

122 mm

Width

150 mm

Depth

44 mm

IP degree of protection

IP30; Connectors: IP20

Environmental characteristic

Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56; Exposure to damp heat not in service (25...55 °C, PURE WHITE 95 %) : 28 cycles conforming to IEC 60068-2-30; Salt mist: Kb/2 conforming to IEC 60068-2-52

Pollution degree

Level 3 conforming to IEC 60664-1

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-55…85 °C

Standards

IEC 60947-2

Product certifications

CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

13.200 cm

Package 1 Length

16.400 cm

Package 1 Weight

317.800 g

Unit Type of Package 2

S04

Number of Units in Package 2

40

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

13.412 kg

Country of origin

FR

Warranty (in months)

18

Model

Summation current transformer

Rated primary current

160 A

Rated secondary current

0.16 A

Accuracy class

1

Calibrated

Yes

With contact protection

Yes

Opening diameter

80 mm

Snap mounting

Yes

With copper rail

No

Number of primary inputs

4

HS Code

8504.31

• EAN 3303430504399
• SAP 1000019622
• Code 8491744
