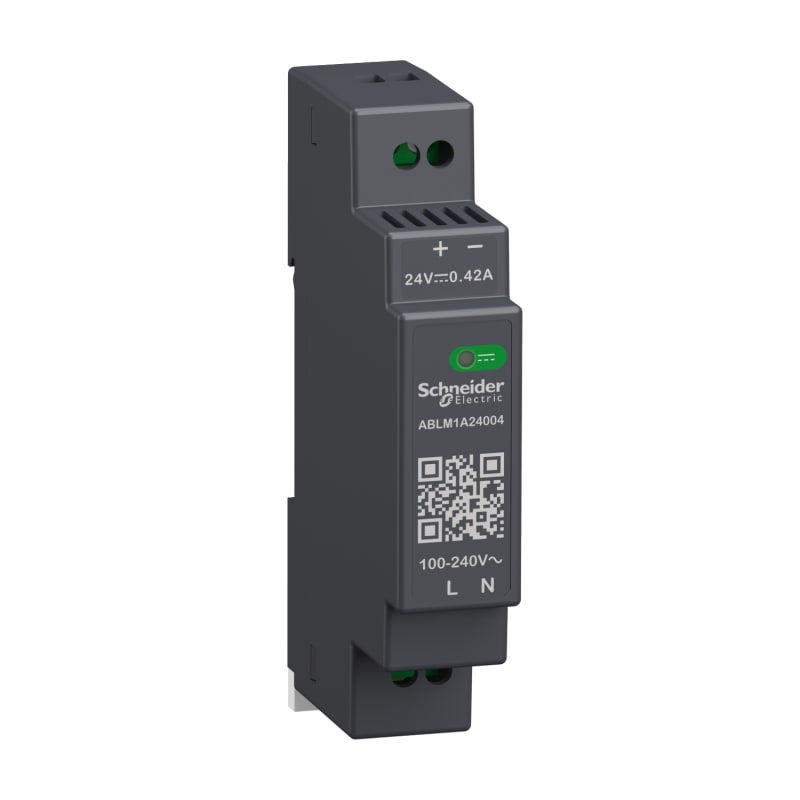

Schneider Electric Regulated Power Supply, 100-240V AC, 24V 0.4 A, single phase, Modular ABLM1A24004

Schneider Electric ABLM1A24004 Switchmode power supply modular for DIN-rail, 24VDC 10W-0,4A output and 100-240VAC supply.

Manufacturer part number (MPN)

ABLM1A24004

EAN / GTIN

3606481500106

Sales unit

pcs

Package quantity

28 pcs

Voltage

24 V

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Variant option

Modular

Enclosure material

Plastic

Nominal input voltage

100...240 V AC single phase; 100...240 V AC phase to phase

Rated power in W

10 W

Output voltage

24 V DC

Power supply output current

0.42 A

Input voltage limits

90...264 V AC

Nominal network frequency

50…60 Hz

Network system compatibility

TN; TT; IT

Maximum leakage current

0.25 mA 240 V AC

Input protection type

Integrated fuse (not interchangeable) 1 A; External protection (recommended) 20 A Curve B; External protection (recommended) 20 A Curve C; External protection (recommended) 2 A Curve B; External protection (recommended) 2 A Curve C

Inrush current

15 A at 115 V; 30 A at 230 V

Power factor

0.52 at 115 V AC; 0.40 at 230 V AC

Efficiency

80 % at 115 V AC; 80 % at 230 V AC

Power dissipation in W

2.5 W

Current consumption

< 0.3 A 115 V AC; < 0.2 A 230 V AC

Turn-on time

< 2 s

Holding time

> 10 ms 115 V AC; > 60 ms 230 V AC

Startup with capacitive loads

3000 µF

Residual ripple

< 100 mV

Meantime between failure [MTBF]

5000000 h at 25 °C, full load; 1000000 h at 55 °C, 80 % load

Output protection type

Against overload and short-circuits, protection technology: automatic reset; Against over temperature, protection technology: manual or automatic reset; Against overvoltage, protection technology: manual or automatic reset

Connections - terminals

Screw connection: 0.5...1.5 mm², (20 AWG...16 AWG) without wire end ferrule for input/output; Screw connection: 0.5...1 mm², (20 AWG...18 AWG) with wire end ferrule for input/output

Line and load regulation

< 0.5 % at in line; < 1 % at 0 to 100 % load

Status LED

1 LED (green) output voltage

Depth

55.6 mm

Height

91 mm

Width

18 mm

Product weight

0.099 kg

Output coupling

Serial

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; Double-profile DIN rail; panel mounting

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

3000 V AC input/output

Service life

10 year(s)

Overvoltage category

II

Standards

IEC 62368-1; EN/IEC 61010-1; EN 61010-2-201; EN/IEC 61204-3; IEC 61000-6-1; IEC 61000-6-2; IEC 61000-6-3; IEC 61000-6-4; IEC 61000-3-2; EN 61000-3-3; UL 62368-1; UL 61010-1; UL 61010-2-201; CSA C22.2 No 62368-1; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201

Product certifications

CE; CUL listed; CUL recognized; RCM; CB Scheme; EAC; KC; NEC: class 2

Operating altitude

< 2000 m overvoltage category III; 2000 m...5000 m overvoltage category II

Shock resistance

150 m/s² for 11 ms

IP degree of protection

IP20

Ambient air temperature for operation

-25…55 °C without current derating mounting position A < 2000 m; 55…70 °C with current derating of 2.67 % per °C mounting position A < 2000 m

Electrical shock protection class

Class II without PE connection

Pollution degree

2

Vibration resistance

3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3; 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3

Electromagnetic immunity

Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1

Electromagnetic emission

Conducted emissions conforming to IEC 61000-6-3; Radiated emissions conforming to IEC 61000-6-4

Number of Units in Package 1

1

Number of Units in Package 2

28

Number of Units in Package 3

448

Country of origin

TH

Warranty (in months)

18

Voltage type (supply voltage)

AC

Max. output current 1

0.4 A

Nominal value output voltage 1

24 V

Nominal value output current 1

0.4 A

Power output

10 W

Type of electric connection

Screw connection

Wall mounting possible

No

Built-in width

18 mm

Built-in height

91 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP20

HS Code

8504.40
