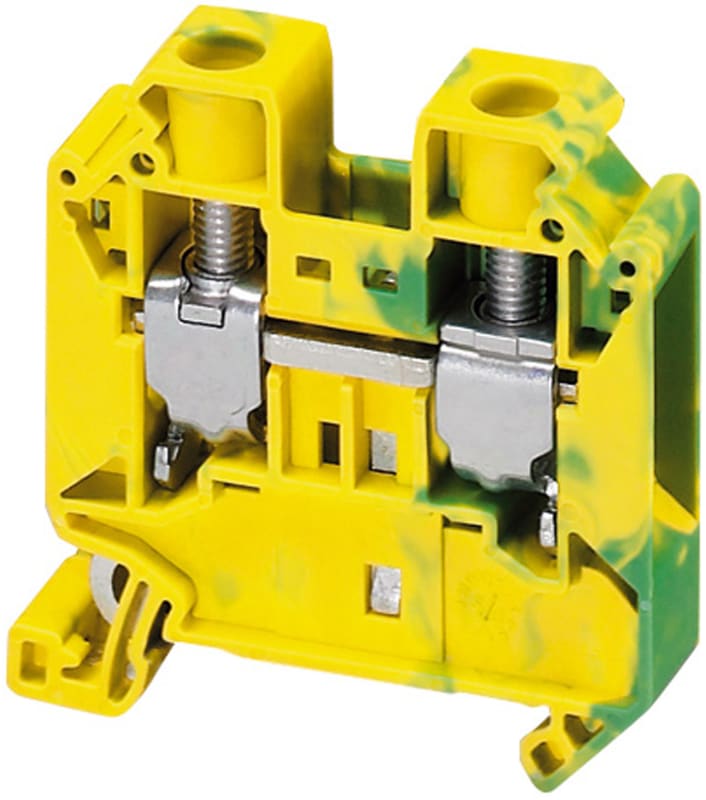

DIN-rail terminal 16mm² PE 2P

Schneider Electric NSYTRV162PE DIN-rail terminal 16mm² PE 2p.

Manufacturer part number (MPN)

NSYTRV162PE

EAN / GTIN

3606480532146

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

16 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Terminal block type

Protective earth

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

16 mm²

Length

55.5 mm

Colour

Green-yellow

Quantity per set

Set of 50

Width

12.2 mm

Height

55 mm

Connections - terminals

1 x screw terminal: upstream; 1 x screw terminal: downstream

number of connections

2

Connection position

Sideways

Number of measurement input

2

Cable cross section

1.5…25 mm², solid; 1…16 mm², flexible with cable end; 1.5…25 mm², flexible without cable end

Tightening torque

2.5…3 N.m

Wire stripping length

14 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[In] rated current

101 A conforming to EN/IEC 60947-7-1

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

46.85 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSeT Pack 250; PanelSeT; TeSys; Mureva; PrismaSeT XS; PrismaSet HD

Product compatibility

Spacial enclosures

Product certifications

GL; DNV; VDE; UL; CSA

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

200

Country of origin

TR

Warranty (in months)

18

PEN function possible

No

Connectable conductor cross section solid-core

1.5–25 mm²

Connectable conductor cross section multi-wired

1.5–25 mm²

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

12.2 mm

Depth

55.5 mm

Closing plate required

Yes

HS Code

8536.90
