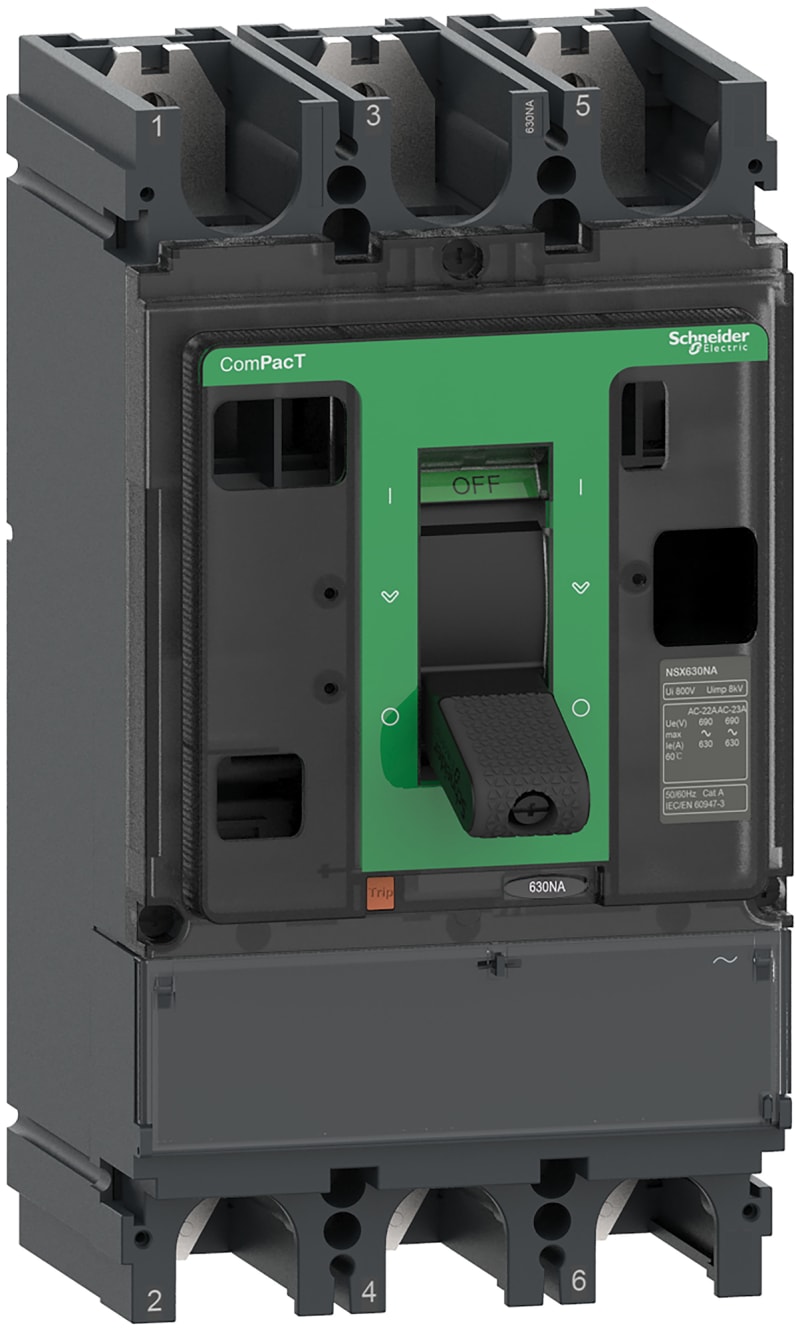

Schneider Electric Switch disconnector, ComPacT NSX630NA, 3 poles, fixed, thermal current Ith 630A C633630S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C633630S Load-break switch ComPacT NSX630NA-Micrologic 0.3 3P 630A.
Technical Specifications
- Manufacturer part number (MPN)
- C633630S
- EAN / GTIN
- 3606482002883
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Number of poles
- 3P
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX630NA
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Poles description
- 3P
- [Ith] conventional free air thermal current
- 630 A at 50 °C
- [Ie] rated operational current
- AC-22A: 630 A AC 50/60 Hz 220...690 V; AC-23A: 630 A AC 50/60 Hz 220...690 V
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- AC-22A; AC-23A
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 6 kA during 1 s; 6 kA during 3 s; 2.32 kA during 20 s
- [Icm] rated short-circuit making capacity
- 330 kA with upstream protection circuit breaker; 8.5 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 15000 cycles
- Electrical durability
- AC-22A: 1500 cycles 690 V AC 50/60 Hz In; AC-22A: 3000 cycles 440 V AC 50/60 Hz In; AC-22A: 3000 cycles 690 V AC 50/60 Hz In/2; AC-22A: 6000 cycles 440 V AC 50/60 Hz In/2; AC-23A: 1500 cycles 690 V AC 50/60 Hz In; AC-23A: 3000 cycles 440 V AC 50/60 Hz In; AC-23A: 3000 cycles 690 V AC 50/60 Hz In/2; AC-23A: 6000 cycles 440 V AC 50/60 Hz In/2
- Width (W)
- 140 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 5.2 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482002883
- SAP 1200534559
- Code 82688570
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric SC duplex adaptor, Actassi, single mode, zirconia ceramic sleeve, plastic housing ACTFA2CSMZP
Schneider Electric
Schneider Electric device locking by padlocks, VCPO, Masterpact NW
48539
Schneider Electric
Schneider Electric external power supply module 200 – 240 V AC - 24 V - 1 A LV454444
Schneider Electric
Schneider Electric Actassi 19-C Vertical Cable Management Ring 1U 600 mm Rack
VDIM189111
Schneider Electric

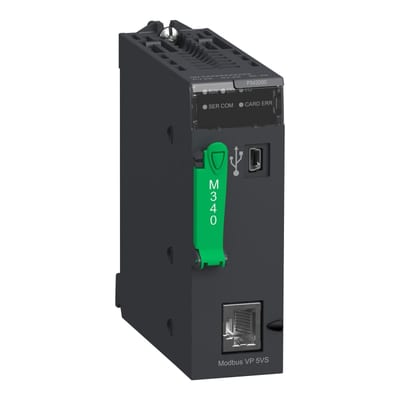

Schneider Electric BMXP342000 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus
Schneider Electric

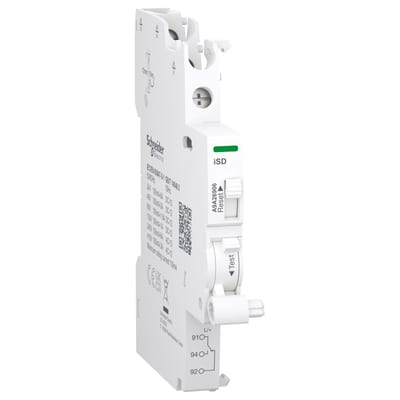

Schneider Electric Auxiliary contact, ACTI9 A9A, iSD, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top connection A9A26906
Schneider Electric

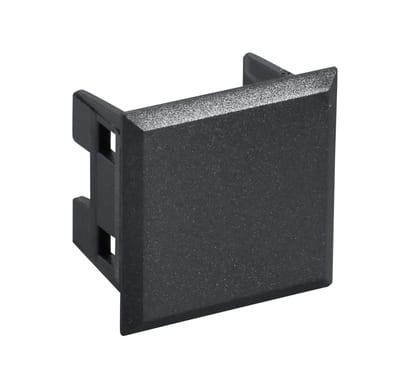

S-One blindpplugg colourkode black
306580018
Schneider Electric

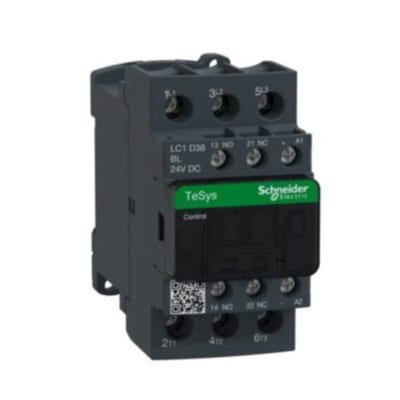

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 24V DC low consumption coil, screw clamp terminals LC1D38BL
