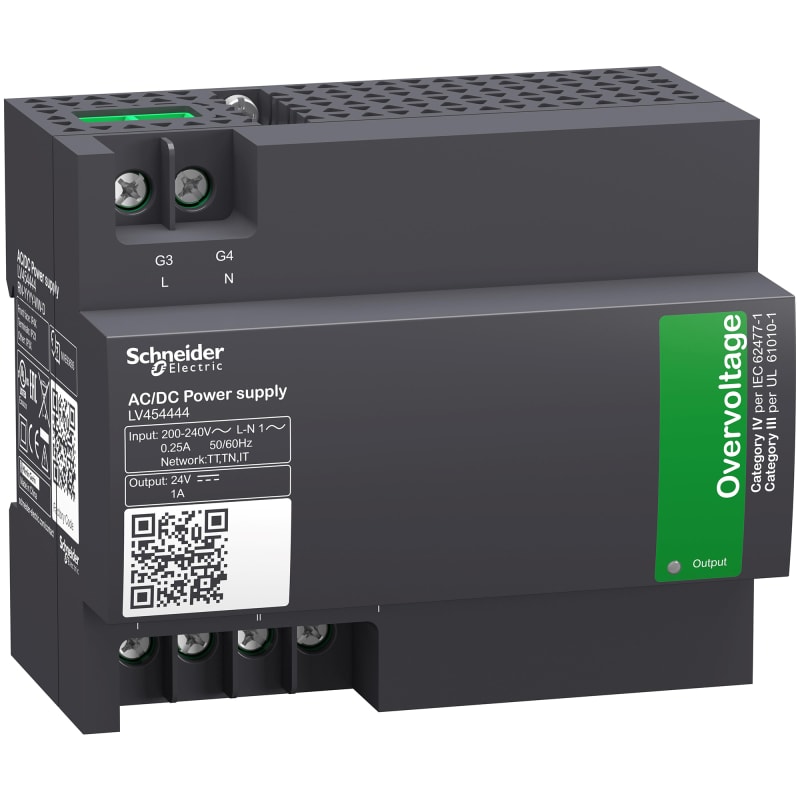

Schneider Electric external power supply module 200 – 240 V AC - 24 V - 1 A LV454444

Schneider Electric LV454444 Power supply AC/DC, 200-240VAC input, 24VDC- 1A output.

Manufacturer part number (MPN)

LV454444

EAN / GTIN

3606481190963

Sales unit

pcs

Package quantity

23 pcs

Voltage

230 V AC

Product or component type

External power supply module

Device application

Power supply

Range compatibility

Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NSX DC; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact H; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact P; PowerPact PowerPact R

Accessory / separate part type

Control units accessories; Trip unit accessories

Trip unit name

MicroLogic

Power supply type

Regulated switch mode

[Us] rated supply voltage

200...240 V AC 50/60 Hz tolerance: +10 % -15 %

Input voltage limits

170...264 V AC at 47.5…63 Hz

Output voltage

24 V DC +/-5 %

Overvoltage category

IV conforming to IEC 62477-1; III conforming to UL 61010-1

Power supply output current

1 A

Rated power in W

24 W

Output protection type

Against overload, protection technology: manual reset; Against overvoltage, protection technology: 30...32 V, manual reset; Against short-circuits, protection technology: manual reset; Thermal, protection technology: automatic reset

Inrush current

20 A 2 ms

Efficiency

85 %

Power dissipation in W

4.2 W

Holding time

>= 20 ms 200...240 V AC

Permissible temporary current boost

1.5 A (200 ms)

Connections - terminals

Screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG; Screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² 24 AWG...12 AWG

Mounting support

35 x 7.5 mm symmetrical DIN rail

Operating position

Horizontal

Operating altitude

0...2000 m

Name of test

Electrostatic discharges conforming to EN/IEC 61000-4-2; Induced electromagnetic field conforming to EN/IEC 61000-4-6; Magnetic field conforming to EN 61000-4-8; Primary outage conforming to IEC 61000-4-11; Radiated electromagnetic field conforming to EN/IEC 61000-4-3; Rapid transient conforming to IEC 61000-4-4; Surge conforming to EN/IEC 61000-4-5; Radiated emissions conforming to EN 61000-6-3; Conducted emissions on the power line conforming to EN 61000-6-3

Status LED

1 LED (green) output voltage

Height

90 mm

Width

108 mm

Depth

67.5 mm

Standards

UL 61010-1; IEC 62477-1

Marking

EAC; CE; UL

Environmental characteristic

EMC conforming to EN/IEC 61000-6-2; EMC conforming to EN/IEC 61000-6-3; Safety conforming to IEC 62477-1; Safety conforming to SELV

IP degree of protection

IP4X (front face) conforming to EN/IEC 60529; IP2X (connection terminals) conforming to EN/IEC 60529; IP3x (housing) conforming to EN/IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Relative humidity

0…95 % during operation; 0…95 % in storage

Dielectric strength

3000 V between input and ground; 3000 V between input and output; 1500 V between output and ground

Compatibility code

CB_EXTERNAL_POWERSUPPLY

Number of Units in Package 1

1

Number of Units in Package 2

23

Number of Units in Package 3

552

Country of origin

CN

Warranty (in months)

18

Voltage type (supply voltage)

AC

Max. output current 1

1 A

Power consumption

4.2 VA

Power output

24 W

Type of electric connection

Screw connection

Wall mounting possible

Yes

Built-in height

90 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP3X

HS Code

8504.40
