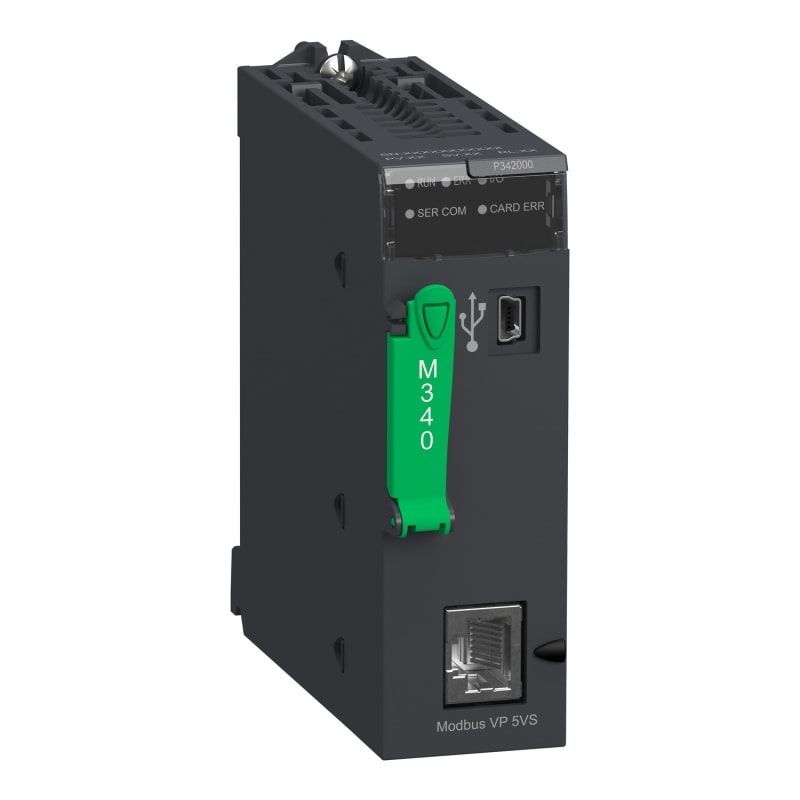

Schneider Electric BMXP342000 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus

Schneider Electric BMXP342000 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus is listed under Control & Automation / PLCs. Sales unit: pcs; Range of product: Modicon M340 automation platform; Product or component type: Processor module; Concept: Modbus; Analogue I/O processor capacity: 256 I/O; Control channels: Programmable loops.

Manufacturer part number (MPN)

BMXP342000

EAN / GTIN

3595863999266

Sales unit

pcs

Range of product

Modicon M340 automation platform

Product or component type

Processor module

Concept

Modbus

Number of racks

4

Local I/O processor capacity (discrete)

1024 I/O

Analogue I/O processor capacity

256 I/O

Number of application specific channel

36

Monitoring

Diagnostic counters Modbus; Event counters Modbus

Control channels

Programmable loops

Integrated connection type

Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s

Communication module processor capacity

2 Ethernet communication module; 4 AS-Interface module

Number of devices per segment

0…32 (character mode); 0…32 (Modbus)

Number of devices

2 point-to-point character mode; 2 point-to-point Modbus

Bus length

0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point

Maximum tap links length

<15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment

Number of addresses

0…248 for character mode; 0…248 for Modbus

Requests

1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus

Control parameter

One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus

Memory description

Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols; Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data

Maximum size of object areas

32634 %Mi located internal bits; 32464 %MWi internal words located internal data; 32760 %KWi constant words located internal data

Default size of object areas

1024 %MWi internal words located internal data; 256 %KWi constant words located internal bits; 512 %Mi located internal data

Application structure

1 cyclic/periodic master task; 1 periodic fast task; No auxiliary task; 32 event tasks

Execution time per instruction

0.18 µs Boolean; 0.26 µs double-length words; 0.38 µs single-length words; 1.74 µs floating points

Number of instructions per ms

4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 5.4 Kinst/ms 100 % Boolean

System overhead

0.2 ms for fast task; 1.05 ms for master task

Current consumption

72 mA at 24 V DC

Supply

Internal power supply via rack

Marking

CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC

Status LED

1 LED (green) processor running (RUN); 1 LED (red) I/O module fault (I/O); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM)

Product weight

0.2 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20

Protective treatment

TC

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive

Product certifications

CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.5 cm

Package 1 Width

11.0 cm

Package 1 Length

11.5 cm

Package 1 Weight

240.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

3.915 kg

Country of origin

FR

Warranty (in months)

18

Width

35 mm

Model

Modular

Height

100 mm

Depth

160 mm

Number of digital inputs

1024

Number of digital outputs

1024

Number of analogue inputs

256

Number of analogue outputs

256

Voltage type (supply voltage)

DC

Type of memory

RAM

Memory size

2048 kByte

Processing time (1K, binary operation)

12 ms

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Number of HW-interfaces other

2

Explosion safety category for gas

None

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
