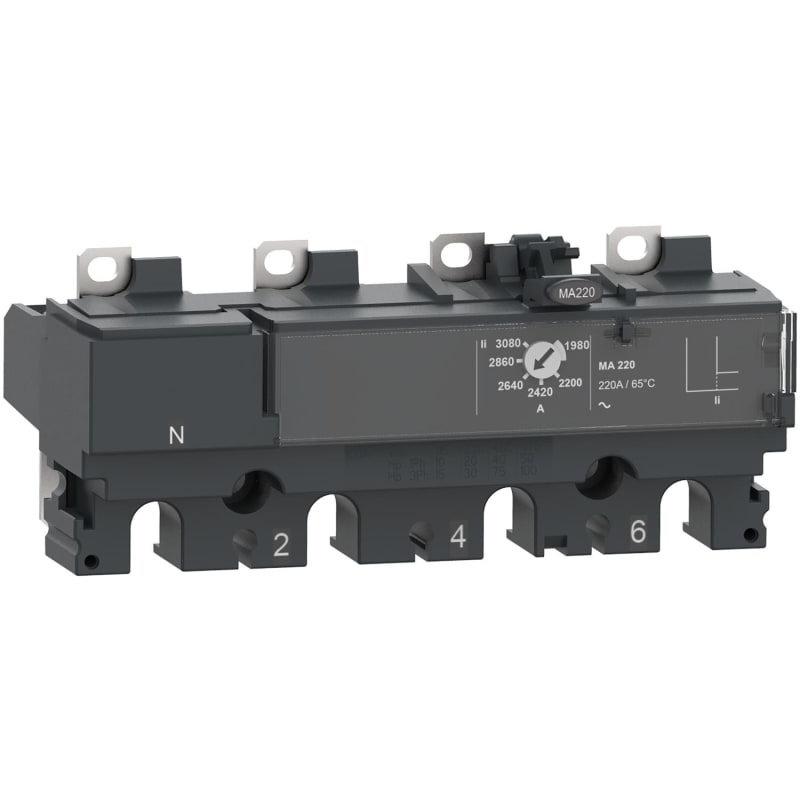

Schneider Electric Trip unit MA220, ComPacT NSX250, 4 poles 3D (neutral not protected), magnetic, motor protection, 220A rating C256MA220
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C256MA220 Short-circuit protection for ComPacT NSX250 circuit breaker MA220 4P4T 220A.
Technical Specifications
- Manufacturer part number (MPN)
- C256MA220
- EAN / GTIN
- 3606482000667
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 23 pcs
- Range
- ComPacT
- Range of product
- ComPacT NSX100...250
- Product or component type
- Trip unit
- Trip unit name
- MA
- Trip unit technology
- Magnetic
- Range compatibility
- ComPacT NSX250
- Device application
- Motor
- Poles description
- 4P
- Protected poles description
- 3D
- Neutral position
- Left
- Trip unit protection functions
- I
- Protection type
- I : for short-circuit protection (magnetic)
- Trip unit rating
- 220 A at 65 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Network frequency
- 50/60 Hz
- Circuit breaker mounting mode
- Fixed
- Neutral protection settings
- No protection (3D)
- Instantaneous protection pick-up adjustment type Ii
- Adjustable
- [Ii] instantaneous protection pick-up adjustment range
- 9...14 x In
- Earth-leakage protection
- Without
- Standards
- EN/IEC 60947-2
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60947-1
- IP degree of protection
- IP40 conforming to IEC 60529
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 23
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482000667
- SAP 1200533599
- Code 82686537
Product Documentation
