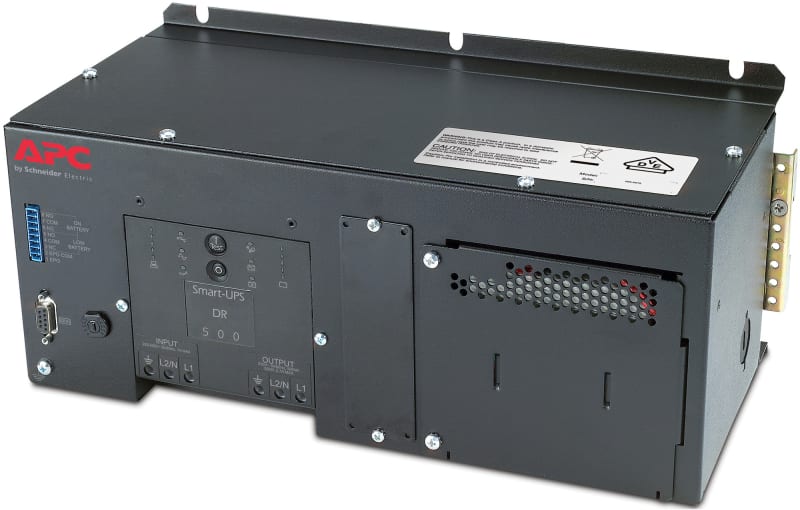

Schneider Electric APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V SUA500PDRI-S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SUA500PDRI-S APC DIN Rail - Panel mounting UPS with Standard Battery 500VA 230V.
Technical Specifications
- Manufacturer part number (MPN)
- SUA500PDRI-S
- EAN / GTIN
- 3606485441061
- Sales unit
- pcs
- Presentation
- Proven Industrial UPS power protection for control applications and harsh environments.
- Main input voltage
- 230 V
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 151...302 V adjustable; 160...285 V
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 325 W
- Rated power in VA
- 500 VA
- Output connection
- Hard wire 3-wire (H N + E) for 1 zone(s)
- Harmonic distortion
- Less than 5 %
- Maximum configurable power in VA
- 500 VA
- Maximum configurable power in W
- 325 W
- UPS topology
- Line interactive
- Efficiency
- 94 % (full load)
- Output frequency
- 47...53 Hz for 50 Hz nominal sync to mains; 57...63 Hz for 60 Hz nominal sync to mains
- Replacement battery
- APCRBC135
- Control panel
- LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rating
- 540 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Height
- 148 mm
- Width
- 362 mm
- Depth
- 171 mm
- Product weight
- 12.86 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- No
- Provided equipment
- CD with software; Documentation CD; Installation guide; Smart UPS signalling RS-232 cable
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; VDE
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 55 dBA
- Heat dissipation
- 90 Btu/h
- Operating altitude
- 0...10000 ft
- Battery type
- Lead-acid battery
- Extendable runtime
- 0
- Included battery module
- 1
- Empty battery slot
- 1
- Typical recharge time
- 2 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 60 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 43.000 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 80.000 cm
- Package 1 Weight
- 19.990 kg
- Country of origin
- PH
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606485441061
- SAP 1200659960
- Code 83104885
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MA150, ComPacT NSX160/250, 4 poles 3D (neutral not protected), magnetic, motor protection, 150A rating C166MA150
Schneider Electric
Schneider Electric ACTI9 iACT - 24V DC control and auxiliary contact 1 NO with TI24 PLC interface A9C15924
Schneider Electric
Schneider Electric Miniature circuit-breaker, ACTI9 C120H, 4P, 63 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) A9N18478
Schneider Electric
Terminal Cover MTZ2 4P reserve
LV848596SP
Schneider Electric
Schneider Electric energy sensor, PowerTag Rope 2000A 3P/3P+N top and bottom position A9MEM1593
Schneider Electric
Schneider Electric Harmony, Solid state relay pre assembled, 2 A, zero voltage switching, spring sockets, input 16...30 V DC, output 24...250 V AC SSL1A12BDPR
Schneider Electric
Eth Gbit Module SFP TX/RJ45
MCSEAAF1LFG00
Schneider Electric

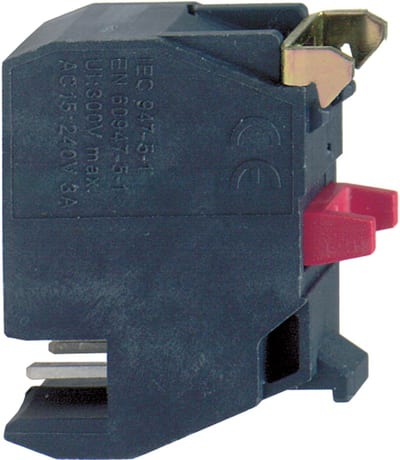

Contact element 1NC, PLUG
