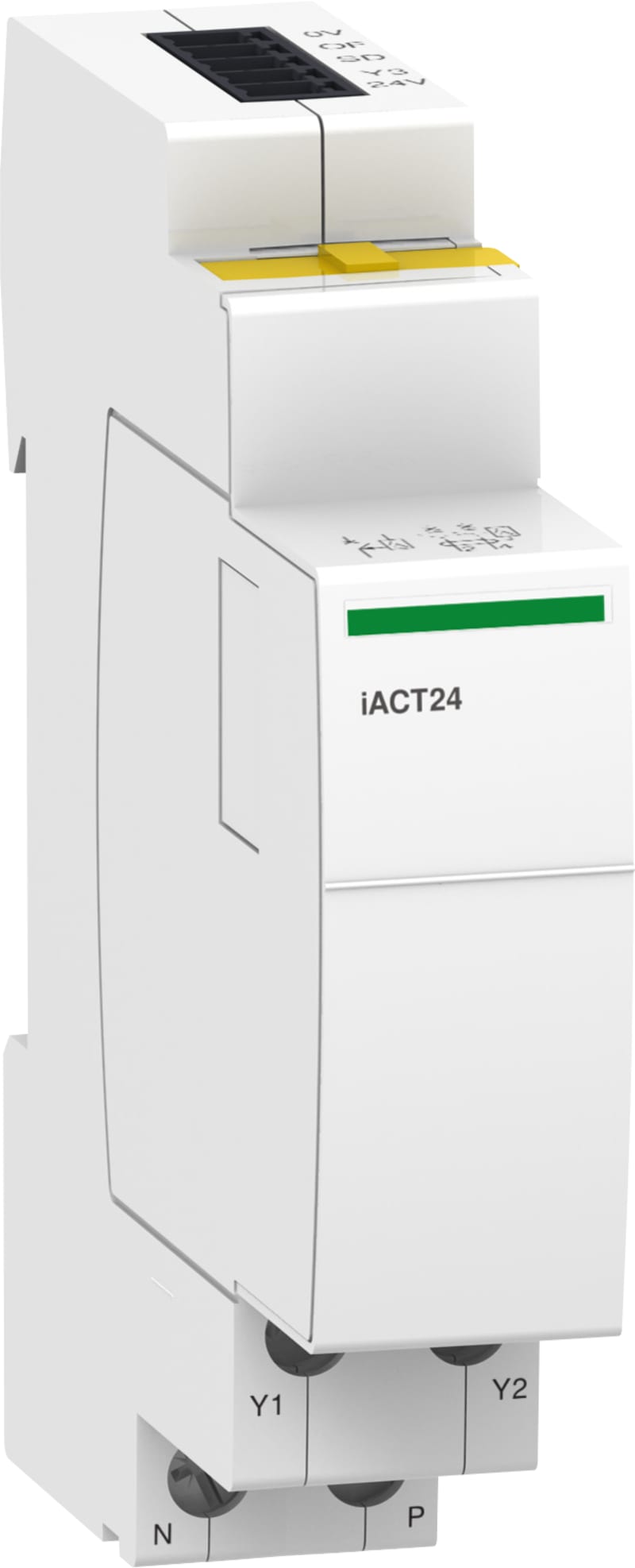

Schneider Electric ACTI9 iACT - 24V DC control and auxiliary contact 1 NO with TI24 PLC interface A9C15924

Schneider Electric A9C15924 Hj.block iACT24 230VAC for iCT.

Manufacturer part number (MPN)

A9C15924

EAN / GTIN

3606480430619

Sales unit

pcs

Package quantity

108 pcs

Voltage

230 V AC

Range

Acti9

Product or component type

Control and indication auxiliary

Device short name

iACT24

Signal contacts composition

1 NO

Signalling circuit voltage

24 V DC: - 20...20 % 0.002...0.1 A

[Uc] control circuit voltage

230 V AC 50/60 Hz maintained >= 200 ms; 24 V DC falling edge; 24 V DC rising edge

Control type

Remote control

[Us] rated supply voltage

230 V AC at 50/60 Hz

mounting mode

Fixed, on the left of CT

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Bottom: YES; Top: NO

9 mm pitches

2

Height

81 mm

Width

18 mm

Depth

68 mm

Colour

White

Overvoltage category

III

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

440 V

Immunity to microbreaks

10 ms

Undervoltage behaviour

No opening if loss of 24 V DC

Standards

IEC 60947-1 annex S

Quality labels

CE

Electrical durability

250000 cycles conforming to IEC 60947-5-1

Connections - terminals

Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible; Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid; Auxiliary supply: tunnel type terminals 2 cable(s) 2.5 mm² flexible; Auxiliary supply: tunnel type terminals 2 cable(s) 1.5 mm² rigid; Control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25…0.75 mm² flexible; Control circuit: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² flexible

Wire stripping length

Control circuit: 10 mm for bottom connection; Auxiliary supply: 10 mm for bottom connection; Control circuit: 10 mm for top connection

Tightening torque

Control circuit: 1 N.m bottom; Auxiliary supply: 1 N.m bottom

Product compatibility

ICT 230/240 V 50 Hz; With PLC; ICT 220 V 50 Hz; Acti 9 Smartlink; ICT 220/240 V 50 Hz

Market segment

Residential; Small commercial

Compatibility code

IACT24

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60439-1

Tropicalisation

2 conforming to IEC 60947-5-1

Relative humidity

93 % at 40 °C conforming to IEC 60068-2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

108

Warranty (in months)

18

Voltage type

AC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Rated switch current

0.002 A

Device fitting

Contactor/relay

Voltage type for actuating

AC

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

3

Suitable for max. current main contact unit

63 A

Country of origin

Spain

HS Code

8536.30
