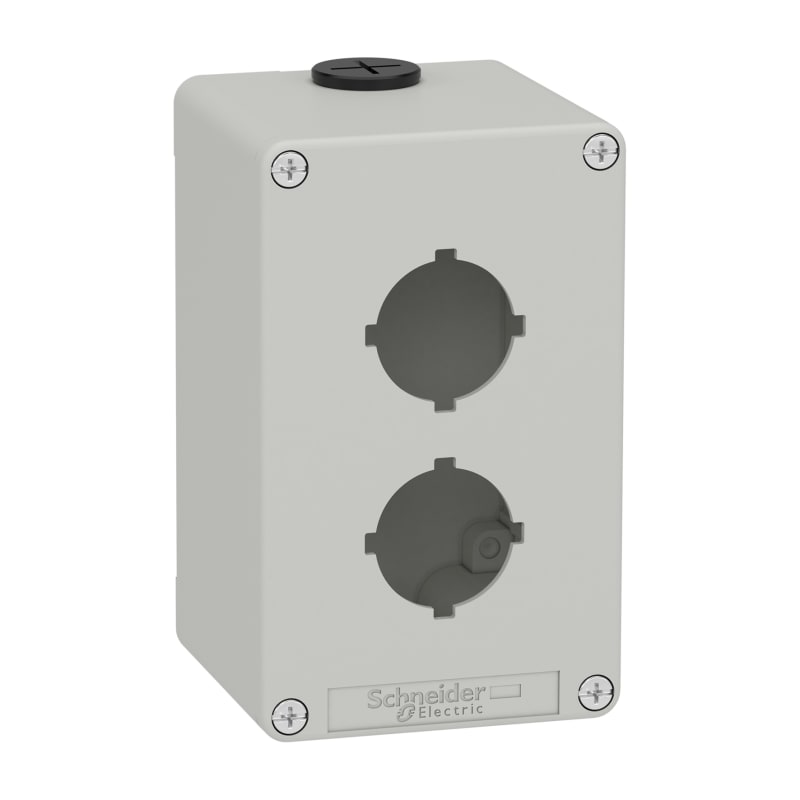

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 2 cut-outs 30mm with notches, 80 x 130 x 77, UL cULus XAPD2602
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPD2602 Push-Button Station empty in light grey metal with 2 x Ø30 mm holes and 2 x M20 cable glands 130 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPD2602
- EAN / GTIN
- 3389118321748
- Sales unit
- pcs
- Diameter
- 30 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPD
- Product destination
- For Ø 30 mm control and signalling units
- Product front plate size
- 80 x 130 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 2 cut-outs
- Colour of base of enclosure
- Grey (RAL 7035)
- Colour of cover
- Grey (RAL 7035)
- Material
- Die cast zinc
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 1
- Number of horizontal rows
- 2
- Cut-out dimensions
- Ø 30 mm
- Control station type
- Metal
- Cable entry
- 2 x cable gland conforming to ISO
- Thread type
- M20 x 1.5
- CAD overall width
- 80 mm
- CAD overall height
- 130 mm
- CAD overall depth
- 77 mm
- Product weight
- 0.81 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- Degree of protection
- UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E
- IK degree of protection
- IK07 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- UL; cULus; EAC
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- MA
- Warranty (in months)
- 18
- Width
- 80 mm
- Height
- 130 mm
- Depth
- 77 mm
- Diameter openings
- 30.5 mm
- Number of command positions
- 2
- Colour housing cover
- Grey
- Housing material
- Zinc
- Construction type housing
- Surface mounted housing
Standards & Compliance
- HS Code
- 7907.00
Cross References
- EAN 3389118321748
- SAP 1200565692
- Code 82952801
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V SUA500PDRI-S
Schneider Electric
Schneider Electric Trip unit MA150, ComPacT NSX160/250, 4 poles 3D (neutral not protected), magnetic, motor protection, 150A rating C166MA150
Schneider Electric

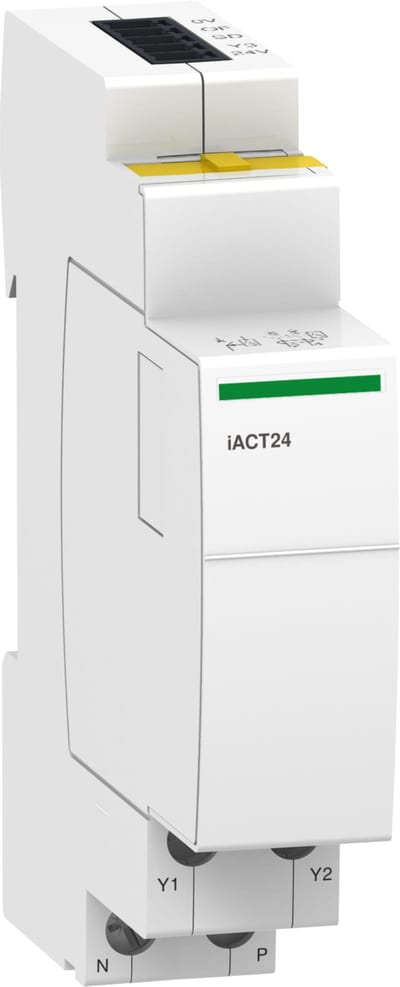

Schneider Electric ACTI9 iACT - 24V DC control and auxiliary contact 1 NO with TI24 PLC interface A9C15924
Schneider Electric

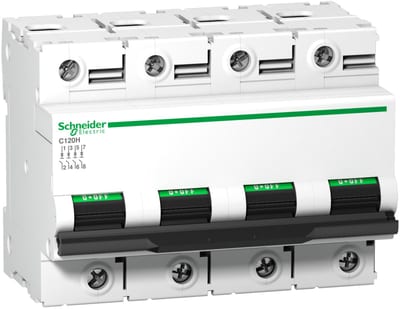

Schneider Electric Miniature circuit-breaker, ACTI9 C120H, 4P, 63 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) A9N18478
Schneider Electric

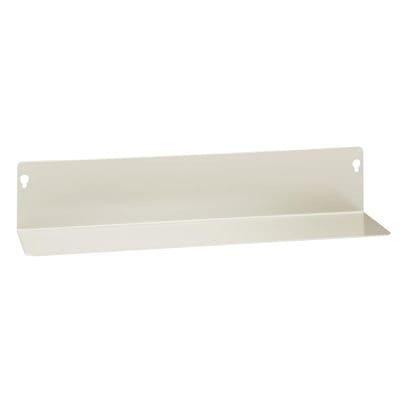

Terminal Cover MTZ2 4P reserve
LV848596SP
Schneider Electric
Schneider Electric energy sensor, PowerTag Rope 2000A 3P/3P+N top and bottom position A9MEM1593
Schneider Electric

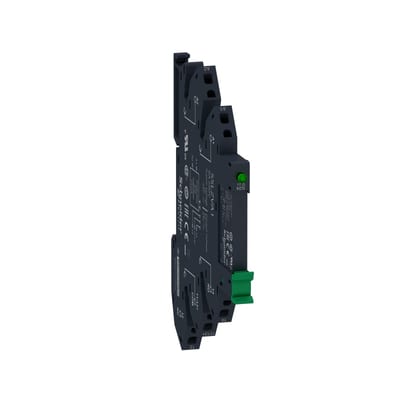

Schneider Electric Harmony, Solid state relay pre assembled, 2 A, zero voltage switching, spring sockets, input 16...30 V DC, output 24...250 V AC SSL1A12BDPR
Schneider Electric

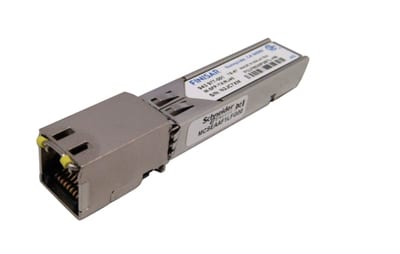

Eth Gbit Module SFP TX/RJ45
