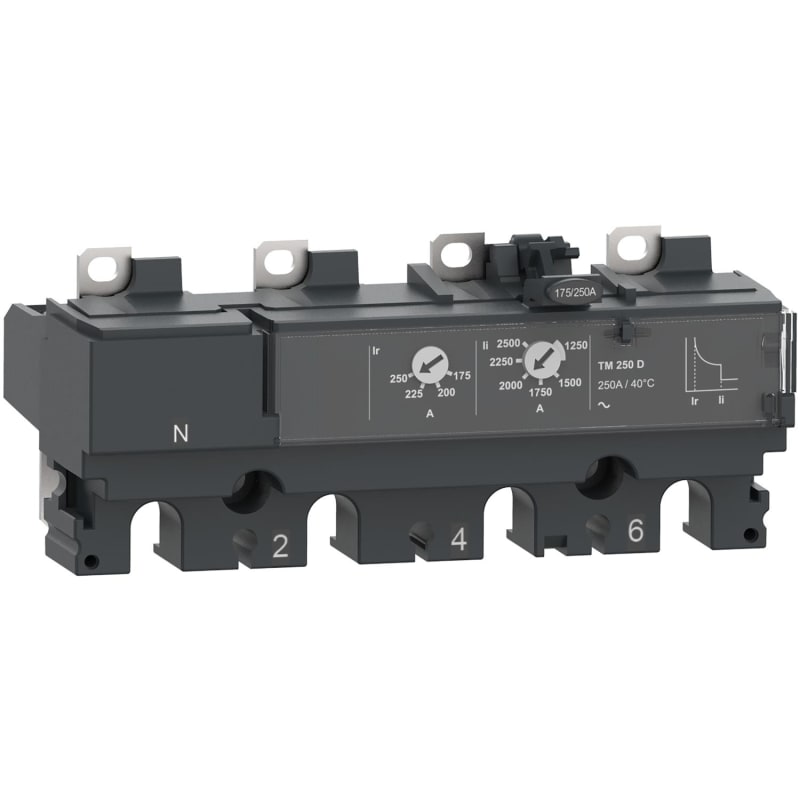

Schneider Electric Trip unit TM50D, ComPacT NSX100/160, 4 poles 4D (neutral fully protected), thermal magnetic protections, 50A rating C104TM050

Schneider Electric C104TM050 Thermomagnetic protection for ComPacT NSX circuit breaker-TM50D 4P4T 50A.

Manufacturer part number (MPN)

C104TM050

EAN / GTIN

3606482000216

HS code

8536.90

Sales unit

pcs

Trip unit

TM50D

Range

ComPacT

Range of product

ComPacT NSX100...250; ComPacT NSX100...250 DC

Product or component type

Trip unit

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Range compatibility

ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC

Device application

Distribution

Poles description

4P

Protected poles description

4D

Neutral position

Left

Trip unit protection functions

LI

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

50 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz; 750 V DC

Network type

AC; DC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

120…400 s at 1.5 x In; 15 s at 6 x Ir

Neutral protection settings

1 x Ir (4D)

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

500 A

Earth-leakage protection

Without

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

23

Warranty (in months)

18

HS Code

8536.90
