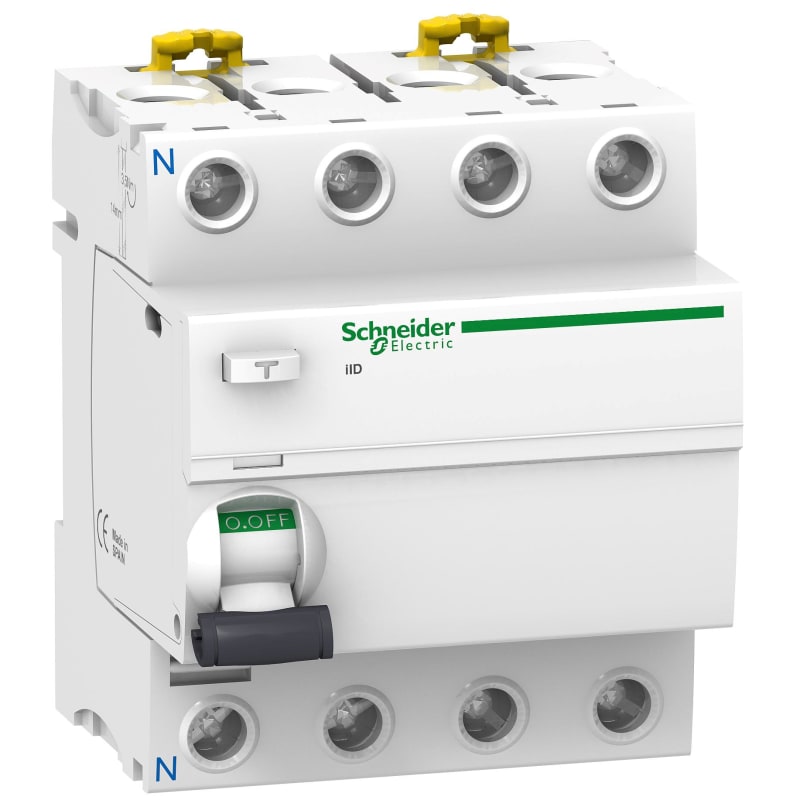

Schneider Electric ACTI9 iID - RCCB - 4P - 63A - 230 V - 30 mA - type A A9R08463

Schneider Electric A9R08463 Residual current circuit breaker 230V 4P 63A 30 mA A-class.

Manufacturer part number (MPN)

A9R08463

EAN / GTIN

3606480639753

HS code

8536.90

Sales unit

pcs

Package quantity

27 pcs

Voltage

230 V

Rated current

63 A

Number of poles

4P

Range

Acti9

Product name

Acti9 iID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

iID

Poles description

4P

Neutral position

Left

[In] rated current

63 A

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Device location in system

Outgoer

Network frequency

50/60 Hz

[Ue] rated operational voltage

230 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

Rated breaking and making capacity

Idm 1500 A; Im 1500 A

Rated conditional short-circuit current

10 kA

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Contact position indicator

Yes

Control type

Toggle

mounting mode

Clip-on

Mounting support

35 mm DIN rail

9 mm pitches

8

Height

85 mm

Width

72 mm

Depth

69 mm

Embedding depth

44 mm

Product weight

370 g

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Locking options description

Padlocking device

Connections - terminals

Single terminal top or bottom 1…35 mm² rigid; Single terminal top or bottom 1…25 mm² flexible; Single terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Standards

EN/IEC 61008-1; EN/IEC 61008-2-1

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Country of origin

ES

Warranty (in months)

18

HS Code

8536.90
