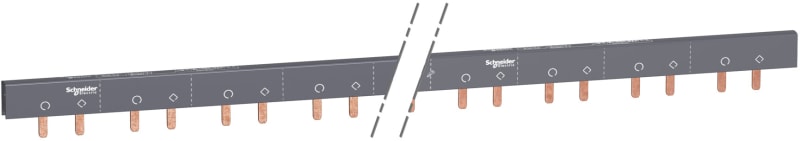

Schneider Electric ACTI9 - comb busbar - 1L+N with Aux - 18 mm pitch - 57 modules - 100A A9XAH257
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XAH257 Busbar 2 pole (L1-L2)+9mm, length 57 modules.
Technical Specifications
- Manufacturer part number (MPN)
- A9XAH257
- EAN / GTIN
- 3606480485145
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of poles
- 2
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 1L + N
- Length in 18 mm modules
- 57
- Standards
- EN/IEC 61439-1
- Number of ways
- 22 ways Aux + N + 1 L
- Distribution type
- Aux N L
- Poles configuration for 1 way
- 1 x 1P + N; 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 45 mm
- Marking
- N L
- Insulation
- Insulated
- Device presentation
- Cuttable
- Provided equipment
- Set of 10 end piece
- [Ie] rated operational current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 415 V AC
- [Ui] rated insulation voltage
- 500 V AC conforming to IEC 61439-2
- Mounting location
- Top or bottom on tunnel type terminals; Top or bottom on double terminal
- 9 mm pitches
- 114
- Width
- 1000 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 iC60; Acti9 iK60; Acti9 iID; Acti9 iID K; Acti9 iSW; Acti9 iSW-NA; Multi9 C60
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to IEC 60947-7-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 135
- Warranty (in months)
- 18
- Insulated
- Yes
- Number of phases
- 1
- Cross section
- 16 mm²
- Rated permanent current Iu
- 100 A
- Length
- 1000 mm
- Width in number of modular spacings
- 57
- Type of electric connection
- Pin
- Suitable for devices with auxiliary switch
- Yes
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 22
- Max. rated operation voltage Ue
- 415 V
- Module width
- 18 mm
- Can be cut to size
- Yes
- Country of origin
- Germany
