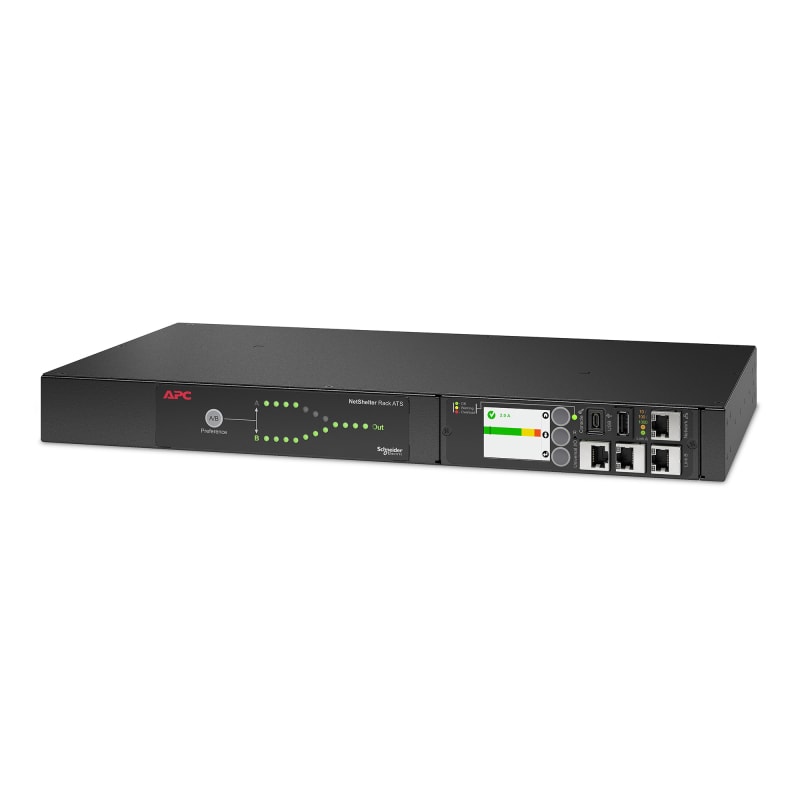

Schneider Electric APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz AP4423A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP4423A APC Automatic Transfer Switch 1U, 16A, 230V, Rack, in: 2x C20, out: 8x C13 1x C19, 50/60Hz.
Technical Specifications
- Manufacturer part number (MPN)
- AP4423A
- EAN / GTIN
- 0731304432449
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Main Input Voltage
- 230 V AC 1 phase
- Product or component type
- Automatic transfer switch
- Main Output Voltage
- 230 V AC 1 phase
- Input Connection Type
- IEC 60320 C20 16 A 2P + E
- Number of rack unit
- 1U
- Provided equipment
- Mounting hardware; Rack mounting brackets
- Colour
- Black
- Height
- 44 mm
- Width
- 432 mm
- Depth
- 236 mm
- Product weight
- 3.74 kg
- Mounting location
- Front
- Mounting preference
- No preference
- mounting mode
- Rack-mounted
- Mounting position
- Horizontal
- Network frequency
- 50/60 Hz
- [In] rated current
- 16 A
- permissible voltage
- 207…253 V
- Max line current
- 20 A
- Input current limits
- 20 A
- Load capacity
- 3700 VA
- Number of power socket outlets
- 8 IEC 60320 C13 10 A 2P + E; 1 IEC 60320 C19 16 A 2P + E
- Protection type
- Without circuit breaker
- Power cable length
- 2.44 m
- Product certifications
- cUL listed; CE; UL listed
- Standards
- EN 55022 class A; FCC part 15 class A
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Country of origin
- PH
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0731304432449
- SAP 1200625167
- Code 83034954
Product Documentation
